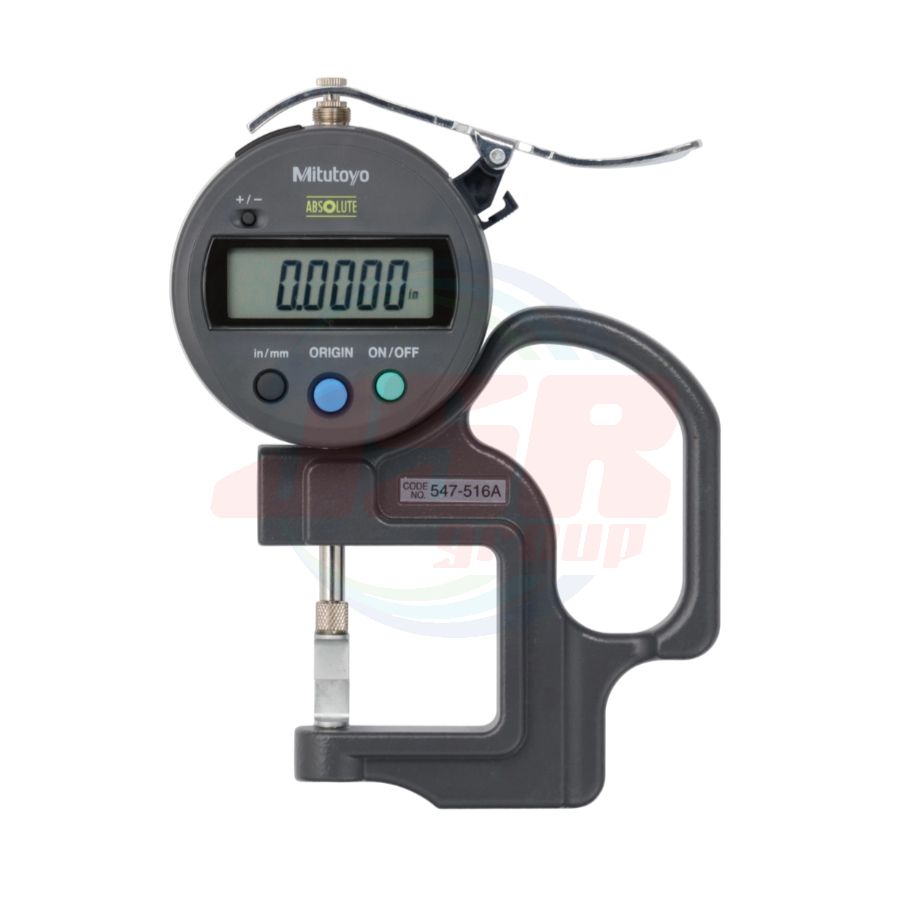

547-516A |Blade thickness measurement | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 6,087.85
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
547-516A
QTY:
10
Blade thickness measurement
• Measuring faces of the contact point and anvil are blade-shaped (thickness: 1 mm). Suitable for measuring narrow grooves.
Metric
| Order No. | Resolution (mm) |
Range (mm) |
Measuring depth (mm) |
Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil (μm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |
| 547-315A | 0.01 | 0 - 10 | 30 | t=1 Blade | 10 | ±20 | 1.5 or less | 260 | Blade thickness |
Inch / Metric
| Order No. | Resolution |
Range |
Measuring depth | Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil |
Accuracy | Measuring force (N) |
Mass (g) |
Remarks |
| 547-316A | 0.0005 in/0.01 mm | 0 - 0.4 | 30 mm (1.18 in) | t=1 mm (0.04 in) Blade | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 260 | Blade thickness |
| 547-516A* | 0.0005 in/0.01 mm | 0 - 0.47* | 30 mm (1.18 in) | t=1 mm (0.04 in) Blade | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 240 | Blade thickness |
\* Using ID-SX Digimatic indicator.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Thickness Gages_547 | 547-516A |
| Inch-Metric | Inch/Metric |
| Resolution | 0.0005 in/0.01 mm |
| Range | 0 - 0.47 in |
| Measuring depth | 30 mm (1.18 in) |
| Contact point, Anvil | t=1 mm (0.04 in) Blade |
| Parallelism of Contact point, Anvil | 0.005 in/0.01 mm |
| Accuracy | ±0.001 in/±20 μm |
| Measuring force (N) | 1.5 or less |
| Remarks | Blade thickness |
