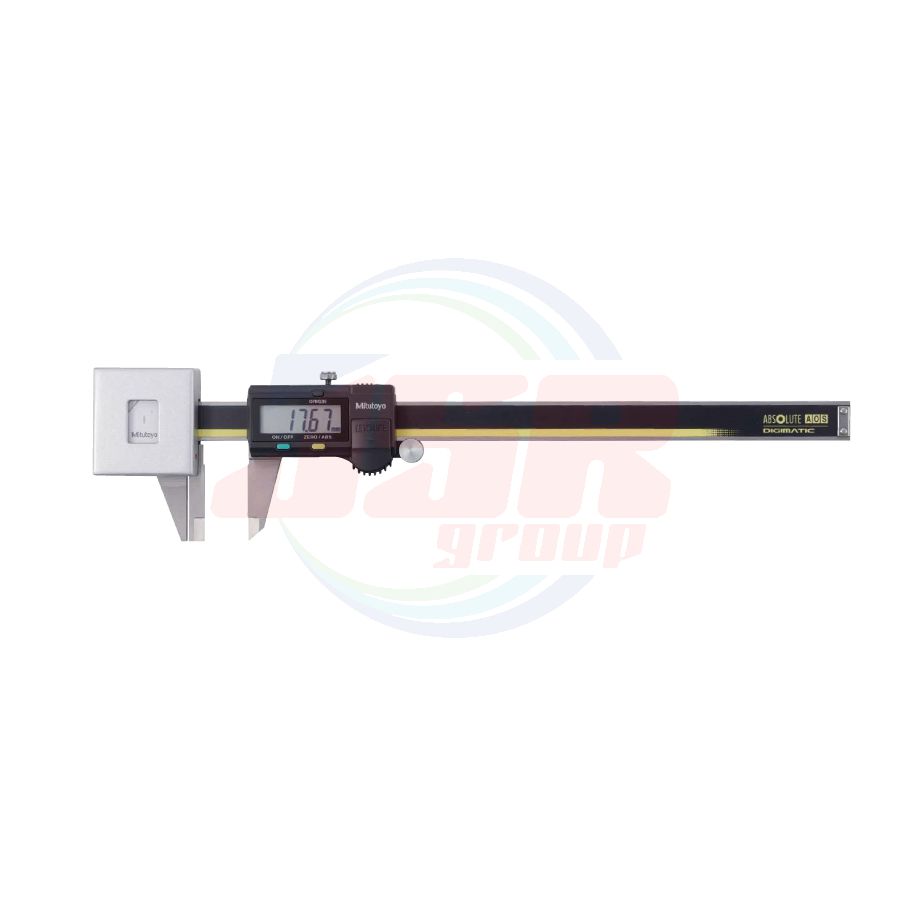

573-191-30 | ABSOLUTE Low Force Caliper SERIES 573 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 13,023.36
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
573-191-30
QTY:
3

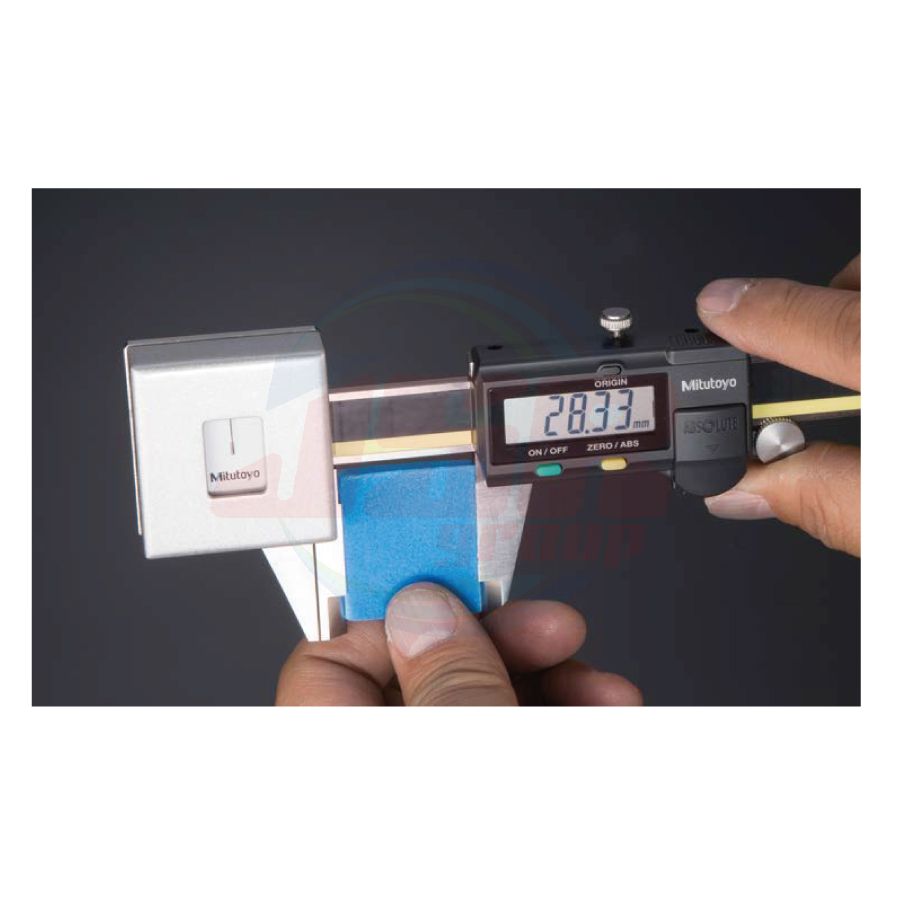

• Due to the low measuring force, this caliper is ideal for measuring elastic workpieces such as plastic and rubber parts.
• Easily allows fine feeding by using the thumb roller. • Measuring force: 0.5 N to 1.0 N
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 573-191-30 | 0 - 180 | 0.01 | ±0.05 | - |
Inch / Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 573-291-30 | 0 - 7 in/0 - 180 mm | 0.0005 in/0.01 mm | ±0.002 in/±0.05 mm | - |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic inductive linear encoder
• Response speed: Unlimited
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
Note: Dedicated for outside measurement (depth bar is not fitted).
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 573-191-30 (NTD25-20AX) |
| Range | 0 - 180 mm |
| Resolution | 0.01 mm |
| Maximum permissible error E MPE | ±0.05 mm |
