Dial Gage Stands SERIES 7 | MITUTOYO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 10,157.94
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
BSD
QTY:
0
• Dial Gage Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator. An anvil is provided as standard.
• Anvil: ø58 mm serrated anvil, ø58 mm flat anvil, 90 mm square anvil and domed anvil (optional)
• Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension.

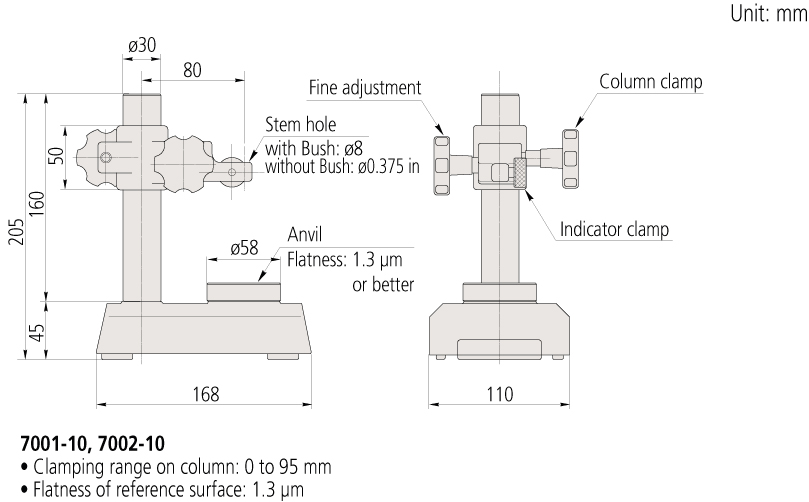

| Order No. | Clamping range on column (mm) | Stem hole (mm) | Remarks |
| 7001-10 | 0 to 95 | ø8, ø0.375 in | With serrated anvil |
| 7002-10 | With flat anvil |
Note 1: Perpendicularity of the stem hole to the anvil is better than 0.4 mm/100 mm
Note 2: Take note that when mounting high-accuracy Linear Gages (with resolution of 0.1 μm or better) to these stands,
accuracy may be affected depending on the perpendicularity of the mounting hole to the top surface of the anvil (cosine effect).
Note 3: Compact dial indicators (bezel ø31, ø36) are not suitable for use with these stands.
| แบรนด์สินค้า | MITUTOYO |
|---|
