7007-10 | Dial Gage Stands SERIES 7 | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 15,292.44
พร้อมส่ง
SKU
7007-10

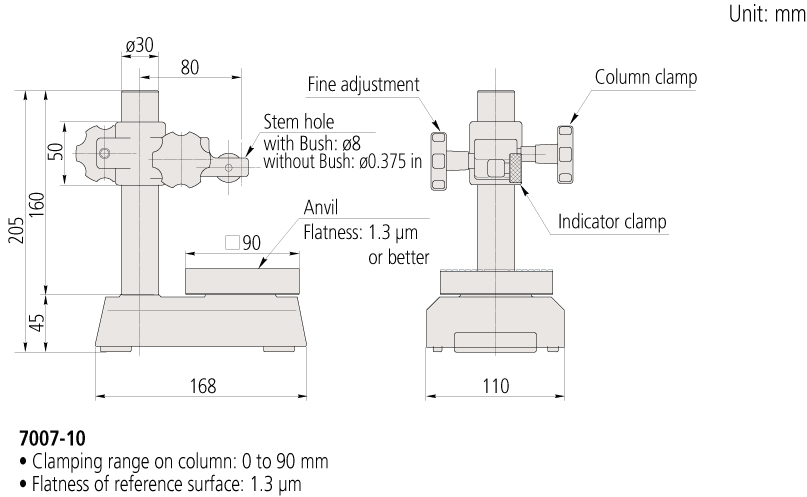

| Order No. | Clamping range on column (mm) | Stem hole (mm) | Remarks |
| 7007-10 | 0 to 95 | ø8, ø0.375 in | With square anvil |
Note 1: Perpendicularity of the stem hole to the anvil is better than 0.4 mm/100 mm
Note 2: Take note that when mounting high-accuracy Linear Gages (with resolution of 0.1 μm or better) to these stands, accuracy may be affected depending on the perpendicularity of the mounting hole to the top surface of the anvil (cosine effect).
Note 3: Compact dial indicators (bezel ø31, ø36) are not suitable for use with these stands.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Magnetic Stands indicators | 7007-10 |
| Clamping range on column | 0 to 95 mm |
| Remarks | With flat anvil |
