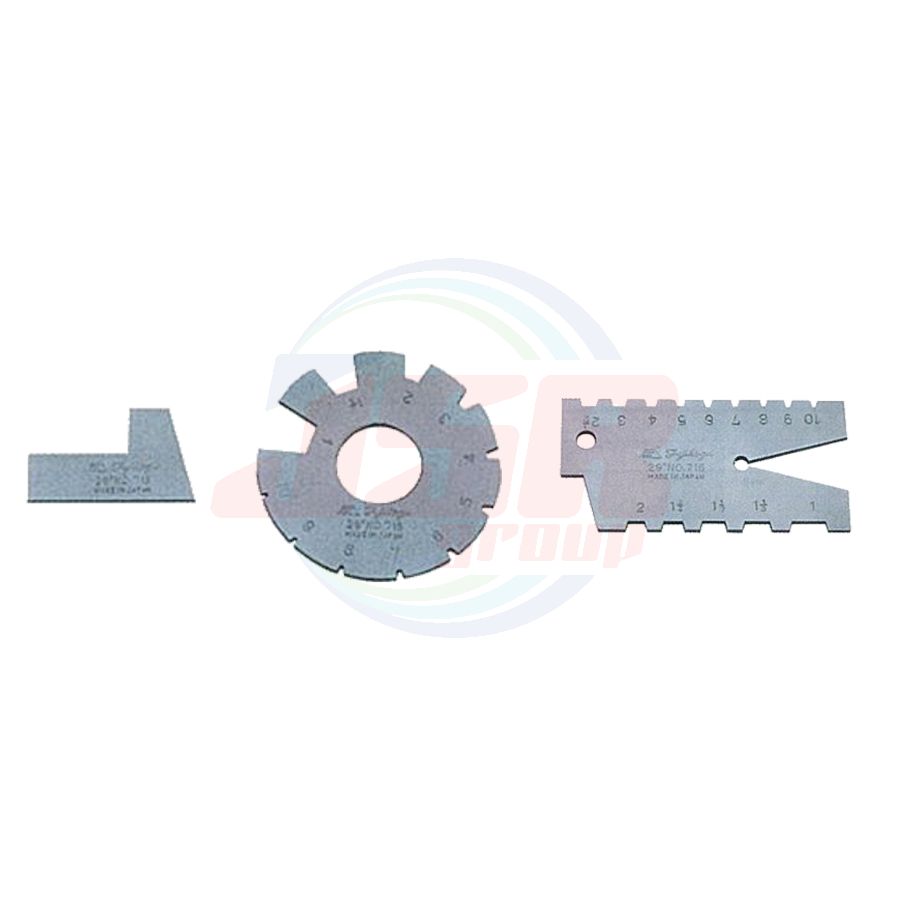

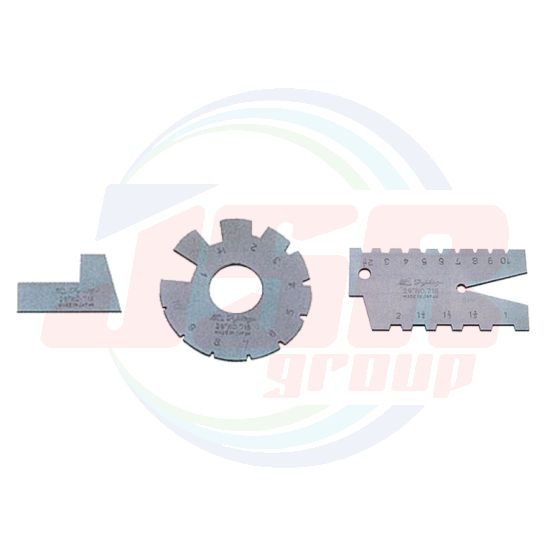

717 | ACME SCREW THREAD GAUGES | FUJI TOOL

THB 0.00

*ราคายังไม่รวม VAT

พร้อมส่ง

SKU

717

QTY:

Features
A standard for grinding and setting tools when cutting trapezoidal screw threads (Acme threads). The depth of threads are same.

Material : Steel SPCC
Accuracy : ±0.2° (±10’)

For 29° acme thread use(TW)

Order No.	Model No.	Angle	Type	Size Composition / Contrnts (inch)
03-301	No.715	29°	Round	1,1 1/3, 2, 3, 4, 5, 6, 7, 8, 9, 10
03-302	No.716	29°	Square	1, 1 1/3, 1 1/2, 1 3/4, 2, 2 1/2, 3, 4, 5, 6, 7, 8, 9, 10

For 30° acme thread use (TM)

Order No.	Model No.	Angle	Type	Size Composition / Contrnts (mm)
03-303	No.717	30°	Square	3, 4, 5, 6, 7, 8, 9, 10
03-304	No.718	30°	Round	3, 4, 5, 6, 7, 8, 9, 10

For metric trapezoidal thread (Tr)

Order No.	Model No.	Angle	Type	Size Composition / Contrnts (mm)
03-300	No.719	30°	Square	2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	FUJI TOOL
Angle	For 30° acme thread use (TM)
