SKU
7313A
Lens thickness measurement

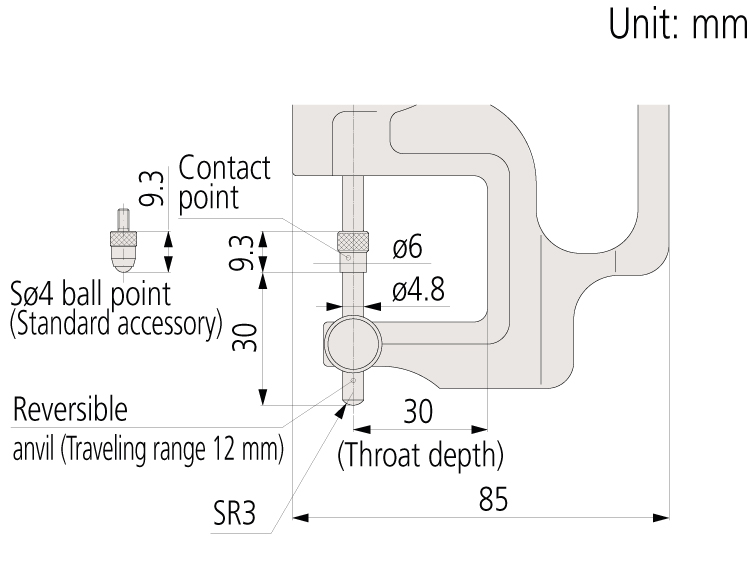

• Thickness of concave-convex lenses and surfaces can be measured. (Contact point, Anvil: hardened steel)
• Anvils and contact points are interchangeable to enable concave surfaces to be measured.
• Provided with a ball point as standard.
Metric
| Order No. | Resolution (mm) |
Range (mm) |
Measuring depth (mm) |
Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil (μm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |
| 7313A | 0.01 | 0 - 10 | 30 | ø6 Flat (Contact point) ø4.8 Flat (Anvil) |
5 | ±15 | 1.4 or less | 215 | Lens thickness |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Thickness Gages_7 | 7313A |
| Inch-Metric | Metric |
| Graduation | 0.01 mm |
| Range | 0 - 10 mm |
| Measuring depth | 30 mm |
| Contact point, Anvil | ø6 Flat (Contact point) ø4.8 Flat (Anvil) |
| Parallelism of Contact point, Anvil | 5 μm |
| Accuracy | ±15 μm |
| Measuring force (N) | 1.4 or less |
| Remarks | Lens thickness |
