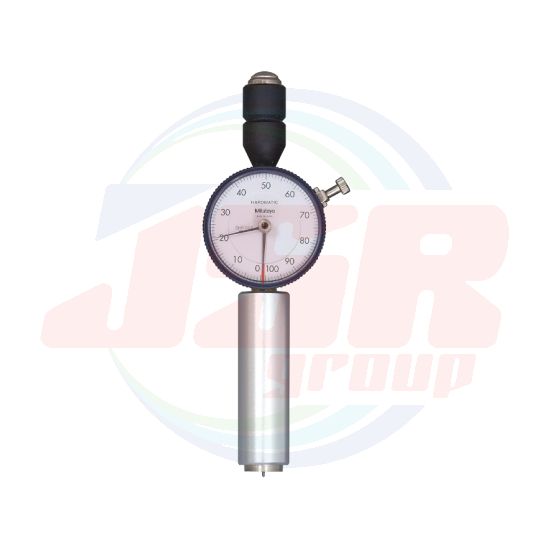

811-333-10 | HARDMATIC HH-300 SERIES 811 — Durometers for Sponge, Rubber and Plastics | MITUTOYO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
811-333-10
QTY:
2
• Hardness measurements by a durometer are performed by simply holding the instrument against the surface of a specimen and reading the indicated value.
• This type of hardness tester is most widely used for hardness testing of sponge, rubber, plastics and other soft materials.
| Order No. | 811-329-10 | 811-331-10 | 811-333-10 | ||
| Model | HH-329 | HH-331 | HH-333 | ||
| Type | Compact | Long | |||
| Display specification | Analog | ||||
| Measurement target | Soft rubber, sponge, felt, hard film, fabric | General rubber, soft plastic |
Hard rubber, hard plastic, ebonite |
||
| Category in standards | Type E | Type A | Type D | ||
| Needle shape | Shaft diameter | ø5 mm | ø1.25 mm | ||
| Tip shape | Semi-sphere | Circular truncated cone | Cone | ||
| Tip angle | — | 35° | 30° | ||
| Tip diameter | ø0.79 mm | — | |||
| Tip curvature | — | 0.1 mm | |||
| External dimensions (W×D×H) | 68×34×146 mm | 68×35×188 mm | |||
| Mass | 300 g | 320 g | |||
| Order No. | 811-335-10 | 811-335-11 | 811-337-10 | 811-337-11 | |
| Model | HH-335 | HH-335-01 | HH-337 | HH-337-01 | |
| Type | Compact | ||||
| Display specification | Analog | ||||
| Measurement target | General rubber, soft plastic | Hard rubber, hard plastic, ebonite | |||
| Category in standards | Type A | Type D | |||
| Needle shape | Shaft diameter | ø1.25 mm | |||
| Tip shape | Circular truncated cone | Cone | |||
| Tip angle | 35° | 30° | |||
| Tip diameter | ø0.79 mm | — | |||
| Tip curvature | — | 0.1 mm | |||
| External dimensions (W×D×H) | 68×34×146 mm | ||||
| Mass | 300 g | ||||
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 811-333-10 (HH-333) |
| Type | Compact |
| Display specification | Analog |
| Measurement target | Hard rubber, hard plastic, ebonite |
| Category in standards | Type D |
| Needle shape : Shaft diameter | ø1.25 mm |
| Needle shape : Tip shape | Cone |
| Needle shape : Tip angle | 30° |
| Needle shape : Tip diameter | — |
| Needle shape : Tip curvature | 0.1 mm |
| External dimensions (W×D×H) | 68×35×188 mm |
