ABSOLUTE Back-Jaw Centerline Caliper SERIES 573 — Edge-to-Center Types | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 30,995.76
พร้อมส่ง
SKU
BACK-JAW-EDGE-TO-CENTER

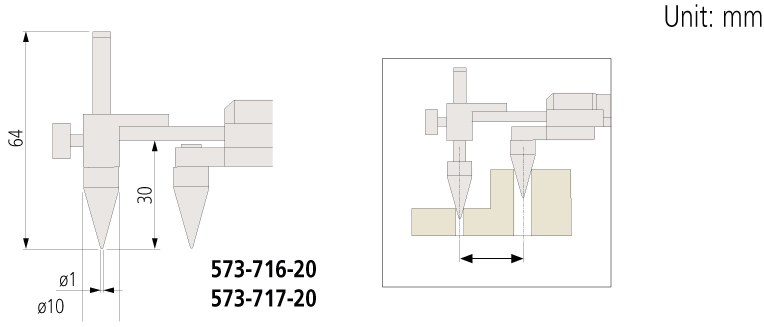

• Specially designed to measure hole Centerto- Center and Edge-to-Center distances. Provided with jaws on the back of the slider, measurements can be read easily from above.

• Direct reading of pitch measurement is possible due to the offset-value setting function.

ABSOLUTE Back-Jaw Centerline Caliper SERIES 573 — Edge-to-Center Types | MITUTOYO
ABSOLUTE Back-Jaw Centerline Caliper SERIES 573 — Edge-to-Center Types | MITUTOYO

SPECIFICATIONS

Metric

Order No. Range (mm) Resolution (mm) Maximum permissible error (mm)*²
E MPE S MPE
573-718-20*¹ 10.1 - 200 0.01 - ±0.10
573-719-20*¹ 10.1 - 300 ±0.15

• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Applicable hole diameter: ø1.5 - ø19.5 mm
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
