ABS-DIGIMATIC-SCALE-UNIT-IP66
Digimatic Scale Units
SD

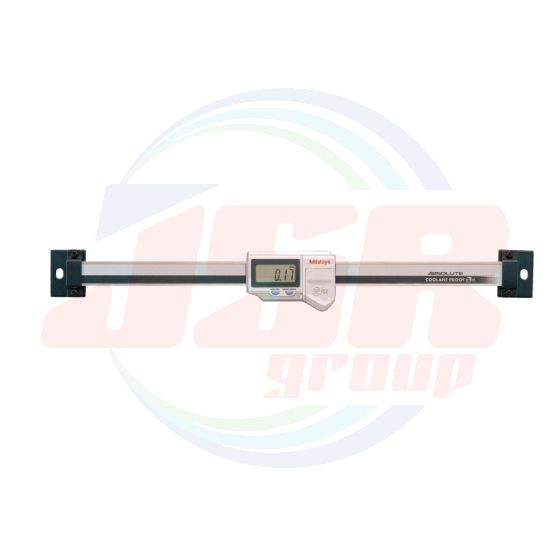

SD Series can be easily mounted on jigs, tools, and small machine tools to enable accurate positioning.
• Detection method: Electromagnetic induction, Electrostatic capacitance
• Maximum effective range: 1000 mm
• Resolution: 0.01 mm
• Response speed: Unlimited
COMMON SPECIFICATIONS
Resolution: 0.01mm or 0.0005"/0.01mm
Repeatability: 0.01mm
Response speed*3: Unlimited
Length standard: ABSOLUTE electromagnetic induction encoder*4
Dust/Water protection level*5: IP66
Battery: SR44 (1pc. , 938882)
Battery life: Approx. 1.5 years under normal use
Inch / Metric
| Order No. | 572-613 | 572-614 | 572-615 |
| Range | 0-4" | 0-6" | 0-8" |
| Accuracy *2 | 0.03mm/.001" | 0.03mm/.001" | 0.03mm/.001" |
Metric
| Order No. | 572-600 | 572-601 | 572-602 |
| Range | 0-100mm | 0-150mm | 0-200mm |
| Accuracy *2 | 0.03mm | 0.03mm | 0.03mm |
*1 Only connecting cables with an output switch dedicated for ABSOLUTE Coolant-proof Digimatic Scale Units
(No.05CZA624/1m, No.05CZA625/2m) can be used.
*2 Not including quantizing error ±1 count
*3 High slider speed does not cause data errors. Position feedback and output data may not be used while the slider is moving.
*4 Patents registered in Japan, the USA, and Europe (Germany, the UK, France, and Switzerland), patents pending in India and China.
*5 Protection code: IP66. This product is not waterproof. (Anti-corrosion treatment is required after use.)
*6 Tapped insert: No.5-40 UNC (Inch type, Inch/Metric switching type) / 2-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 2mm
| Protection | Level | Description |
| Protection against the ingress of foreign bodies |
6: Dustproof | Complete protection against ingress of dust |
| Protection against the ingress of water |
6: Water resistant | A powerful water jet directed at the enclosure from any direction has no harmful effect |
| Digital/Analog | Digital |
|---|---|
| แบรนด์สินค้า | MITUTOYO |
| Accuracy | 0.03mm |

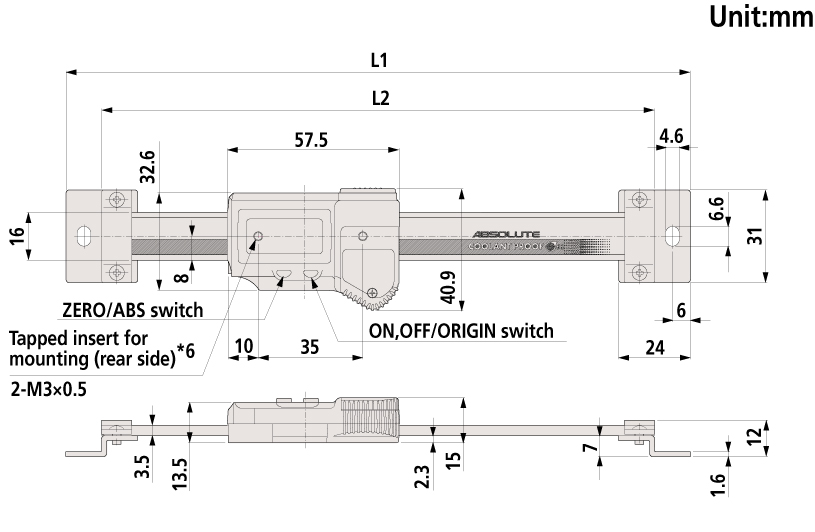

Dimensions
| 572-613 / 572-600 | 572-614 / 572-601 | 572-615 / 572-602 | |
| L1 / L2 | 209mm/185mm | 259mm/235mm | 311mm/287mm |
| Mass | 390g | 410g | 430g |
