ABSOLUTE Digimatic Depth Gage SERIES 571 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 12,674.15
พร้อมส่ง
SKU
1MIT-VDS
• Enables stable depth measurement with a Measurement example resolution of 0.01 mm.
• Coolant proof type IP67 rated.
• Data output function allows integration into statistical process control and measurement systems.
• Optional longer extension bases are available.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Base (W×T) (mm) | Maximum permissible error E MPE (mm)*1 |
| 571-251-20 | 0 - 150 | 0.01 | 100×6 | ±0.02 |
| 571-252-20 | 0 - 200 | |||
| 571-253-20 | 0 - 300 | 100×6.3 | ±0.03 |
Inch / Metric
| Order No. | Range (in) | Resolution | Base (W×T) (in) | Maximum permissible error E MPE (in)*1 |
| 571-261-20 | 0 - 6 | 0.0005 in/ 0.01mm |
3.93×0.23 | ±0.001 in/±0.02 mm |
| 571-262-20 | 0 - 8 | |||
| 571-263-20 | 0 - 12 | 3.93×0.25 | ±0.0015 in/±0.03 mm |
• Dust / Water protection level: IP67*2
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic inductive linear encoder
• Battery life: Approx. 5 years
• Response speed: Unlimited
*1 Maximum permissible error, E MPE, is the term defined by ISO 13385-2:2011.
*2 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |

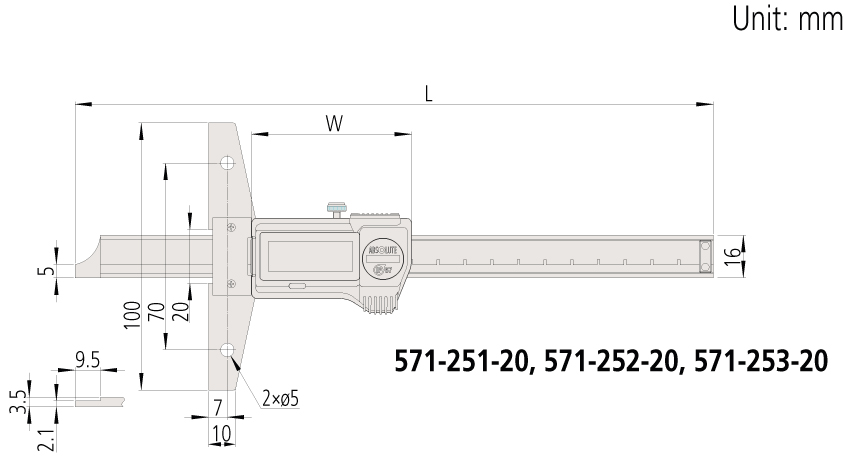

| Range (mm) | L | W | Base thickness |
| 0 - 150 | 239 | 59.2 | 6 |
| 0 - 200 | 289 | ||
| 0 - 300 | 403 | 71 | 6.3 |
