ABSOLUTE Digimatic Height Gage SERIES 570 — Standard Model | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 13,556.90
พร้อมส่ง
SKU
1MIT-HDS
• Simple design is easy to use.
• Scriber is provided as a standard accessory.
• When a dial indicator or dial test indicator is used with 570-227 and 244, the dedicated holding bar (953639, overall length 50 mm) is recommended for use. However, MPE (Maximum permissible error) may be larger because the measurement point is further from the beam.
Functions
• Zero-setting
• +/- directional measurement
• Data hold • Data output • Presetting
• inch/mm reading (inch/mm models)
• Preset value memory
• Origin restoration
• Low battery voltage alert
• Counting value composition error alert

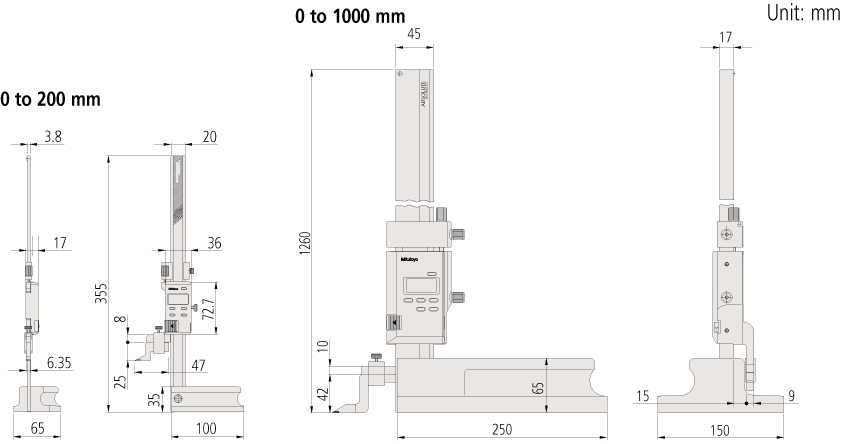

SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Fine feed (mm) | Maximum permissible error E MPE (mm)* |
Height (mm) | Mass (kg) |
| 570-227 | 0 - 200 | 0.01 | 4 | ±0.03 | 355 | 1.4 |
| 570-230 | 0 - 1000 | 6 | ±0.07 | 1260 | 16.8 |
Inch / Metric
| Order No. | Range (in) | Resolution | Fine feed (in) | Maximum permissible error E MPE (in)* |
Height (mm) | Mass (kg) |
| 570-244 | 0 - 8 | 0.0005 in/0.01 mm | 0.16 | ±0.002 | 355 | 1.4 |
| 570-248 | 0 - 40 | 0.24 | ±0.003 | 1260 | 16.8 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5,000 hours under normal use
* Maximum permissible error, E MPE is the term (notation) used in JIS B 7517: 2018, revised based on ISO/TR 14253-6: 2012.
| แบรนด์สินค้า | MITUTOYO |
|---|
เขียนรีวิวสินค้าของคุณเอง
