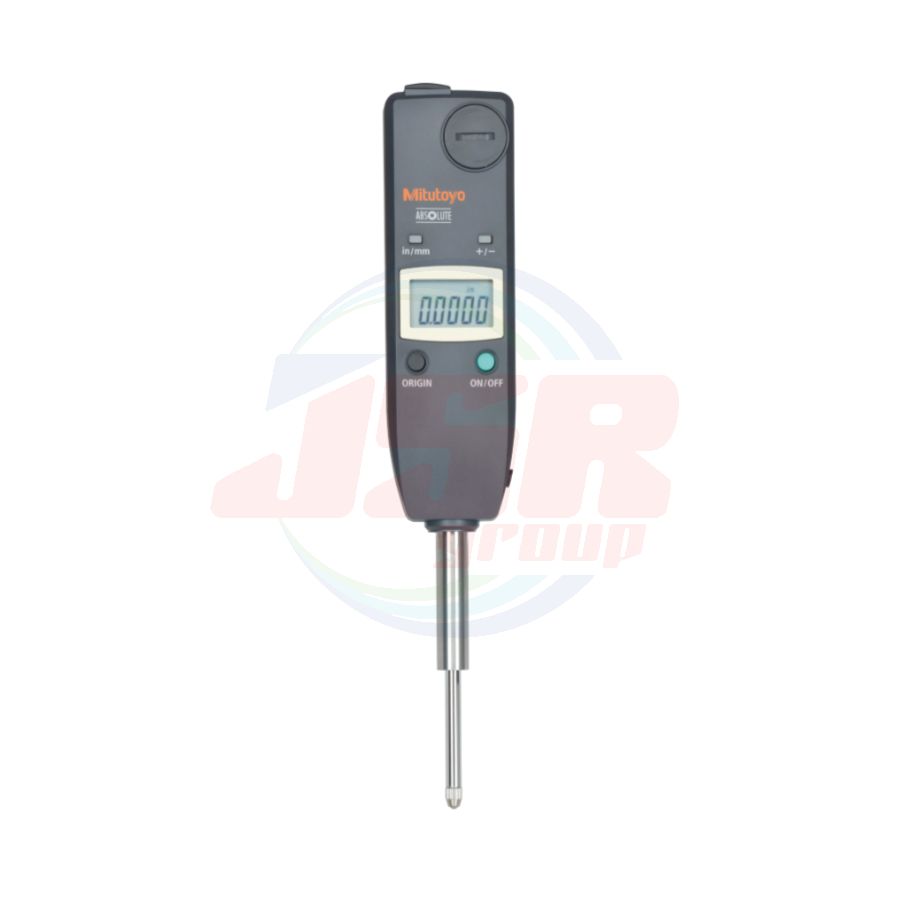

ABSOLUTE Digimatic Indicator ID-U SERIES 575 — Slim and Economical Design | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 4,912.37
พร้อมส่ง
SKU
ID-U
• Cost-effective and user-friendly type with basic functions.
• Battery life: approx. 20,000 hours in continuous use.
• The ABS (ABSOLUTE) scale restores the last origin position* automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
Function
• Origin set (Zero-setting)
• Measuring direction switching
• Data output
• Low battery voltage alarm display
• Error alarm display
SPECIFICATIONS
Metric --- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | |||
| 575-121 | 25.4 | 0.01 | 0.02 | 0.02 | 0.02 | 0.01 | 1.8 or less |
Inch / Metric --- ISO/JIS Type
| Order No. | Range | Resolution | Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | |||
| 575-122 | 1 in / 25.4 mm | 0.0005in / 0.01mm | 0.02 | 0.02 | 0.02 | 0.01 | 1.8 or less |
Inch / Metric --- ASME/ANSI /AGD type
| Order No. | Range | Resolution | Maximum permissible error (MPE)*1 (in) | Maximum permissible limit (MPL) |
||
| Overall*2 | Hysteresis | Repeatability | Measuring force (N) | |||
| 575-123 | 1 in / 25.4 mm | 0.0005 in / 0.01 mm | ±0.0010 | 0.0010 | 0.0005 | 1.8 or less |
• Display: 5-digit display, sign
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 20,000 hours of continuous use. Approx. 5 years under normal use.
Note: It varies depending on use frequency and method. Please take the values as rough indications.
• Lifting lever: 21EAA426 (standard accessory)
*1 These values apply to normal measurements at 20 °C.
*2 Overall magnification and linearity
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Overall | ±0.0010 in |
| Hysteresis | 0.0010 in |
| Repeatability | 0.0005 in |
