ABSOLUTE Digimatic Scale Units - Horizontal multi-function type with diameter display function | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
ABS-DIGIMATIC-SCALE-UNITE-HORIZONTAL-MULTI-WITH
Digimatic Scale Units
SD
SD Series can be easily mounted on jigs, tools, and small machine tools to enable accurate positioning.
• Detection method: Electromagnetic induction, Electrostatic capacitance
• Maximum effective range: 1000 mm
• Resolution: 0.01 mm
• Response speed: Unlimited
COMMON SPECIFICATIONS
Resolution: 0.01mm or 0.0005"/0.01mm
Repeatability: 0.01mm or 0.0005"/0.01mm (Radius indication, not diameter)
Response speed*2: Unlimited
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery: SR44 (1pc. 938882) Battery life: Approx. 5000 hours in continuous use
Inch / Metric
| Order No. | 572-490-10 | 572-491-10 | 572-492-10 | 572-493-10 | 572-494-10 | 572-495-10 | 572-496-10 | 572-497-10 |
| Range | 0-4" | 0-6" | 0-8" | 0-12" | 0-18" | 0-24" | 0-32" | 0-40" |
| Accuracy *1 | 0.03mm/.001" | 0.03mm/.001" | 0.03mm/.001" | 0.04mm/.002" | 0.04mm/.002" | 0.05mm/.002" | 0.06mm/.0025" | 0.07mm/.0025" |
Metric
| Order No. | 572-480-10 | 572-481-10 | 572-482-10 | 572-483-10 | 572-484-10 | 572-485-10 | 572-486-10 | 572-487-10 |
| Range | 0-100mm | 0-150mm | 0-200mm | 0-300mm | 0-450mm | 0-600mm | 0-800mm | 0-1000mm |
| Accuracy *1 | 0.03mm | 0.03mm | 0.03mm | 0.04mm | 0.04mm | 0.05mm | 0.06mm | 0.07mm |
*1 Not including quantizing error ±1 count
*2 High slider speed does not cause data errors. Position feedback and output data may not be used while the slider is moving.
*3 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 2mm
*4 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 3mm
| Digital/Analog | Digital |
|---|---|
| แบรนด์สินค้า | MITUTOYO |

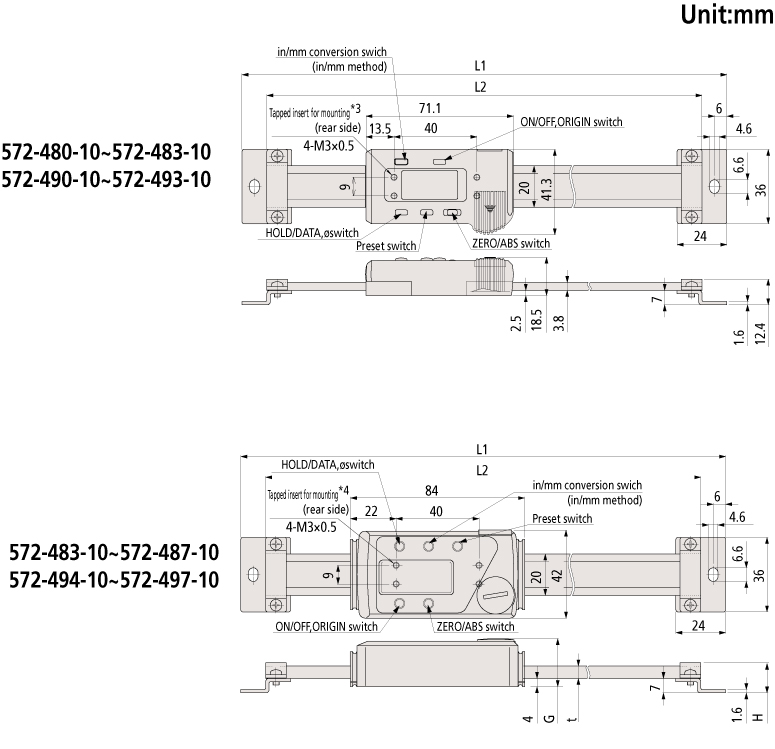

Dimensions
| 572-490-10 / 572-480-10 |
572-491-10 / 572-481-10 |
572-492-10 / 572-482-10 |
572-493-10 / 572-483-10 |
572-494-10 / 572-484-10 |
572-495-10 / 572-485-10 |
572-496-10 / 572-486-10 |
572-497-10 / 572-487-10 |
|
| L1 / L2 | 244mm/220mm | 294mm/270mm | 344mm/320mm | 444mm/420mm | 594mm/570mm | 774mm/750mm | 974mm/950mm | 1174mm/1150mm |
| t / G / H | - | 6mm/23.2mm/14.6mm | 10mm/27.2mm/18.6mm | |||||
| Mass | 250g | 280g | 310g | 370g | 760g | 900g | 1710g | 2040g |
