Digimatic Scale Units
SD
SD Series can be easily mounted on jigs, tools, and small machine tools to enable accurate positioning.
• Detection method: Electromagnetic induction, Electrostatic capacitance
• Maximum effective range: 1000 mm
• Resolution: 0.01 mm
• Response speed: Unlimited
COMMON SPECIFICATIONS
Resolution: 0.01mm or 0.0005"/0.01mm
Repeatability: 0.01mm or 0.0005"/0.01mm
Response speed*2: Unlimited
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery: SR44 (1pc. 938882)
Battery life: Approx. 5000 hours in continuous use
Inch / Metric
| Order No. | 572-470 | 572-471 | 572-472 | 572-473 | 572-474 | 572-475 | 572-476 | 572-477 |
| Range | 0-4" | 0-6" | 0-8" | 0-12" | 0-18" | 0-24" | 0-32" | 0-40" |
| Accuracy *1 | 0.03mm/.001" | 0.03mm/.001" | 0.03mm/.001" | 0.04mm/.002" | 0.04mm/.002" | 0.05mm/.002" | 0.06mm/.0025" | 0.07mm/.0025" |
Metric
| Order No. | 572-460 | 572-461 | 572-462 | 572-463 | 572-464 | 572-465 | 572-466 | 572-467 |
| Range | 0-100mm | 0-150mm | 0-200mm | 0-300mm | 0-450mm | 0-600mm | 0-800mm | 0-1000mm |
| Accuracy *1 | 0.03mm | 0.03mm | 0.03mm | 0.04mm | 0.04mm | 0.05mm | 0.06mm | 0.07mm |
*1 Not including quantizing error ±1 count
*2 High slider speed does not cause data errors. Position feedback and output data may not be used while the slider is moving.
*3 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 2mm
*4 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 3mm
| Digital/Analog | Digital |
|---|---|
| แบรนด์สินค้า | MITUTOYO |

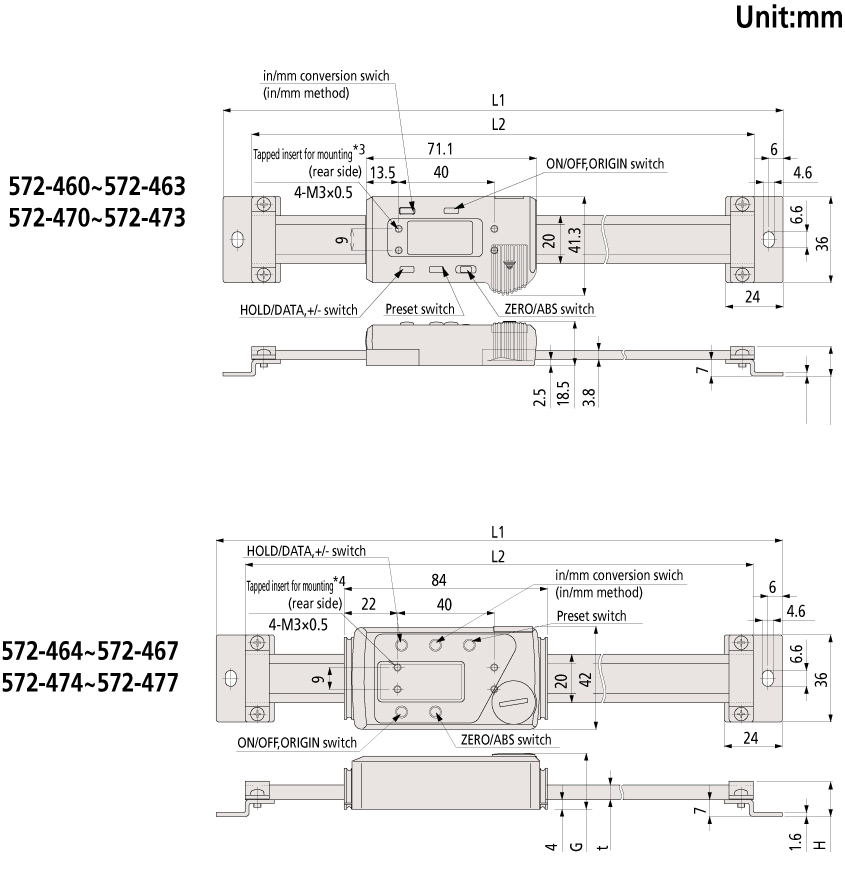

Dimensions
| 572-470 / 572-460 |
572-471 / 572-461 |
572-472 / 572-462 |
572-473 / 572-463 |
572-474 / 572-464 |
572-475 / 572-465 |
572-476 / 572-466 |
572-477 / 572-467 |
|
| L1 / L2 | 244mm/220mm | 294mm/270mm | 344mm/320mm | 444mm/420mm | 594mm/570mm | 774mm/750mm | 974mm/950mm | 1174mm/1150mm |
| t / G / H | - | 6mm/23.2mm/14.6mm | 10mm/27.2mm/18.6mm | |||||
| Mass | 250g | 280g | 310g | 370g | 760g | 900g | 1710g | 2040g |
