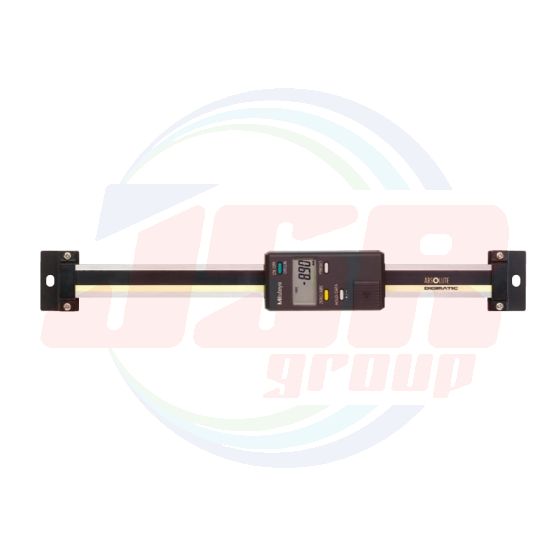

Digimatic Scale Units
SD
SD Series can be easily mounted on jigs, tools, and small machine tools to enable accurate positioning.
• Detection method: Electromagnetic induction, Electrostatic capacitance
• Maximum effective range: 1000 mm
• Resolution: 0.01 mm
• Response speed: Unlimited
COMMON SPECIFICATIONS
Resolution: 0.01mm or 0.0005"/0.01mm
Repeatability: 0.01mm or 0.0005"/0.01mm
Response speed*2: Unlimited
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery: SR44 (1pc. 938882) Battery life: Approx. 5000 hours in continuous use
Inch / Metric
| Order No. | 572-570 | 572-571 | 572-572 | 572-573 | 572-574 | 572-575 | 572-576 | 572-577 |
| Range | 0-4" | 0-6" | 0-8" | 0-12" | 0-18" | 0-24" | 0-32" | 0-40" |
| Accuracy *1 | 0.03mm/.001" | 0.03mm/.001" | 0.03mm/.001" | 0.04mm/.002" | 0.04mm/.002" | 0.05mm/.002" | 0.06mm/.0025" | 0.07mm/.0025" |
Metric
| Order No. | 572-560 | 572-561 | 572-562 | 572-563 | 572-564 | 572-565 | 572-566 | 572-567 |
| Range | 0-100mm | 0-150mm | 0-200mm | 0-300mm | 0-450mm | 0-600mm | 0-800mm | 0-1000mm |
| Accuracy *1 | 0.03mm | 0.03mm | 0.03mm | 0.04mm | 0.04mm | 0.05mm | 0.06mm | 0.07mm |
*1 Not including quantizing error ±1 count
*2 High slider speed does not cause data errors. Position feedback and output data may not be used while the slider is moving.
*3 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 2mm
*4 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 3mm
| Digital/Analog | Digital |
|---|---|
| แบรนด์สินค้า | MITUTOYO |

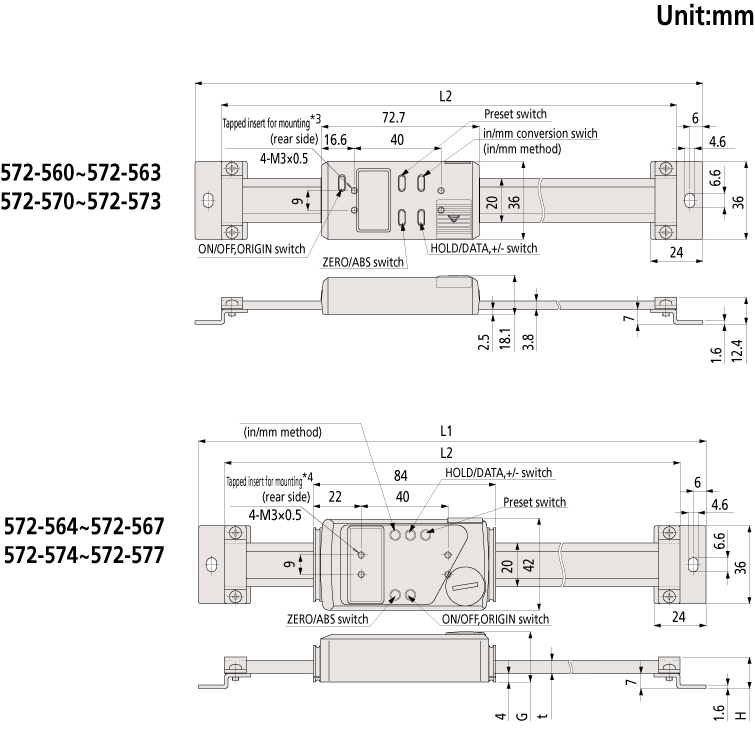

Dimensions
| 572-570 / 572-560 |
572-571 / 572-561 |
572-572 / 572-562 |
572-573 / 572-563 |
572-574 / 572-564 |
572-575 / 572-565 |
572-576 / 572-566 |
572-577 / 572-567 |
|
| L1 / L2 | 244mm/220mm | 294mm/270mm | 344mm/320mm | 444mm/420mm | 594mm/570mm | 774mm/750mm | 974mm/950mm | 1174mm/1150mm |
| t / G / H | - | 6mm/23.2mm/14.6mm | 10mm/27.2mm/18.6mm | |||||
| Mass | 250g | 280g | 310g | 370g | 760g | 900g | 1710g | 2040g |
