ABSOLUTE Digimatic Scale Units - Vertical single function type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
ABS-DIGIMATIC-SCALE-UNITE-VERTICAL-SINGLE
Digimatic Scale Units
SD
SD Series can be easily mounted on jigs, tools, and small machine tools to enable accurate positioning.
• Detection method: Electromagnetic induction, Electrostatic capacitance
• Maximum effective range: 1000 mm
• Resolution: 0.01 mm
• Response speed: Unlimited
COMMON SPECIFICATIONS
Resolution: 0.01mm or 0.0005"/0.01mm
Repeatability: 0.01mm or 0.0005"/0.01mm
Response speed: Unlimited*4
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery: SR44 (1pc. 938882)
Battery life: Approx. 3.5 years under normal use
Inch / Metric
| Order No. | 572-310-20 | 572-311-20 | 572-312-20 | 572-313-10 |
| Range | 0-4" | 0-6" | 0-8" | 0-12" |
| Accuracy *3 | 0.03mm/.001" | 0.03mm/.001" | 0.03mm/.001" | 0.04mm/.002" |
Metric
| Order No. | 572-300-20 | 572-301-20 | 572-302-20 | 572-303-10 |
| Range | 0-100mm | 0-150mm | 0-200mm | 0-300mm |
| Accuracy *3 | 0.03mm | 0.03mm | 0.03mm | 0.04mm |
*1 A hold switch (No. 959143), an optional accessory, is required. The output function cannot be used at the same time.
*2 Connecting cables on page 3 and connecting cables with output switch (No. 959149/1m and No. 959150/2m) can be used.
*3 Not including quantizing error ±1 count
*4 High slider speed does not cause data errors. Position feedback and output data may not be used while the slider is moving.
*5 Tapped insert: No.5-40 UNC ( Inch/Metric switching type) / 4-M3x0.5 (Metric type) Screwed depth on the rear side of display unit: under 2mm
| Digital/Analog | Digital |
|---|---|
| แบรนด์สินค้า | MITUTOYO |

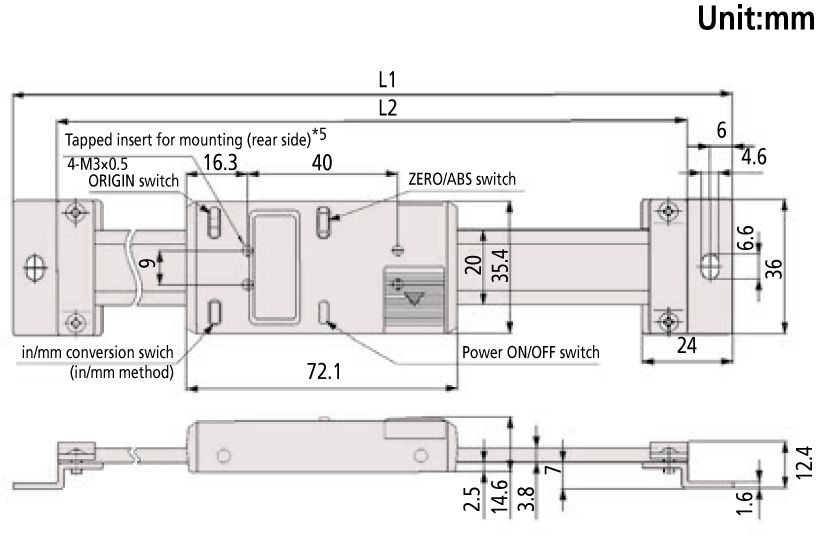

Dimensions
| 572-310-20 / 572-300-20 | 572-311-20 / 572-301-20 | 572-312-20 / 572-302-20 | 572-313-10 / 572-303-10 | |
| L1 / L2 | 244mm/220mm | 294mm/270mm | 344mm/320mm | 444mm/420mm |
| Mass | 235g | 255g | 275g | 370g |
