ABSOLUTE Inside Caliper SERIES 573 — Inside Groove Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 13,875.76
พร้อมส่ง
SKU
INSIDE-GROOVE

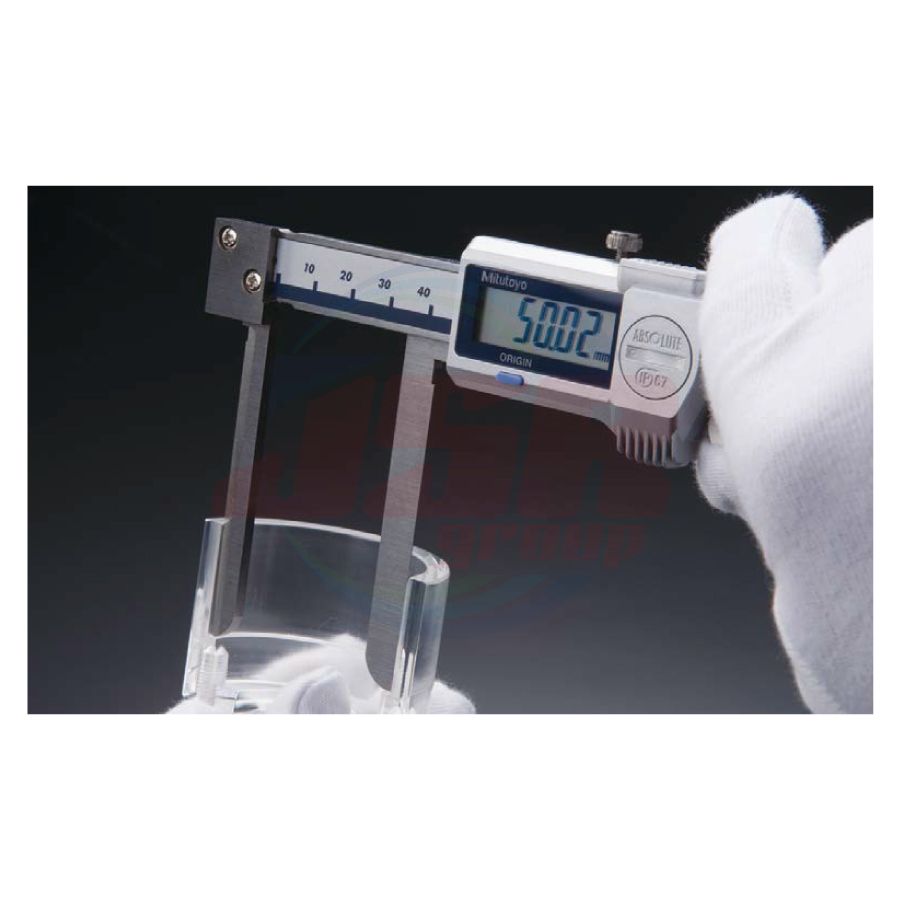

• Specially designed for inside measurements. Select the right model for your workpiece shape.
SPECIFICATIONS
Metric ___ Digimatic model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*³ | Remarks | |
| E MPE | S MPE | ||||
| 573-642-20 | 10 - 200 | 0.01 | - | ±0.05 | Knife-edge type, Measurable min. |
| 573-643-20*¹ | 10 - 200 | Knife-edge type, Measurable min. | |||
| 573-645-20*² | 10.1 - 160 | Inside groove type, Measurable min. | |||
| 573-647-20*¹ | 10.1 - 160 | Inside groove type, Measurable min. | |||
| 573-646-20*² | 20.1 - 170 | ±0.03 | Point jaw type, Measurable min. | ||
| 573-648-20*¹ | 20.1 - 170 | Point jaw type, Measurable min. | |||
Inch / Metric ___ Digimatic model
| Order No. | Range | Resolution | Maximum permissible error*³ | Remarks | |
| E MPE | S MPE | ||||
| 573-742-20 | 0.4 - 8 in/ 10 - 200 mm |
0.0005 in/0.01 mm | - | ±0.002 in/ ±0.05 mm |
Knife-edge type, Measurable min. |
| 573-745-20*² | 0.404 - 6.4 in/ 10.26 - 160.16 mm |
Inside groove type, Measurable min. | |||
| 573-746-20*² | 0.804 - 6.8 in/ 20.42 - 170.32 mm |
±0.0015 in/ ±0.03 mm |
Point jaw type, Measurable min. | ||
• Dust / Water protection level: IP67 (IEC 60529)*4
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Without thumb roller

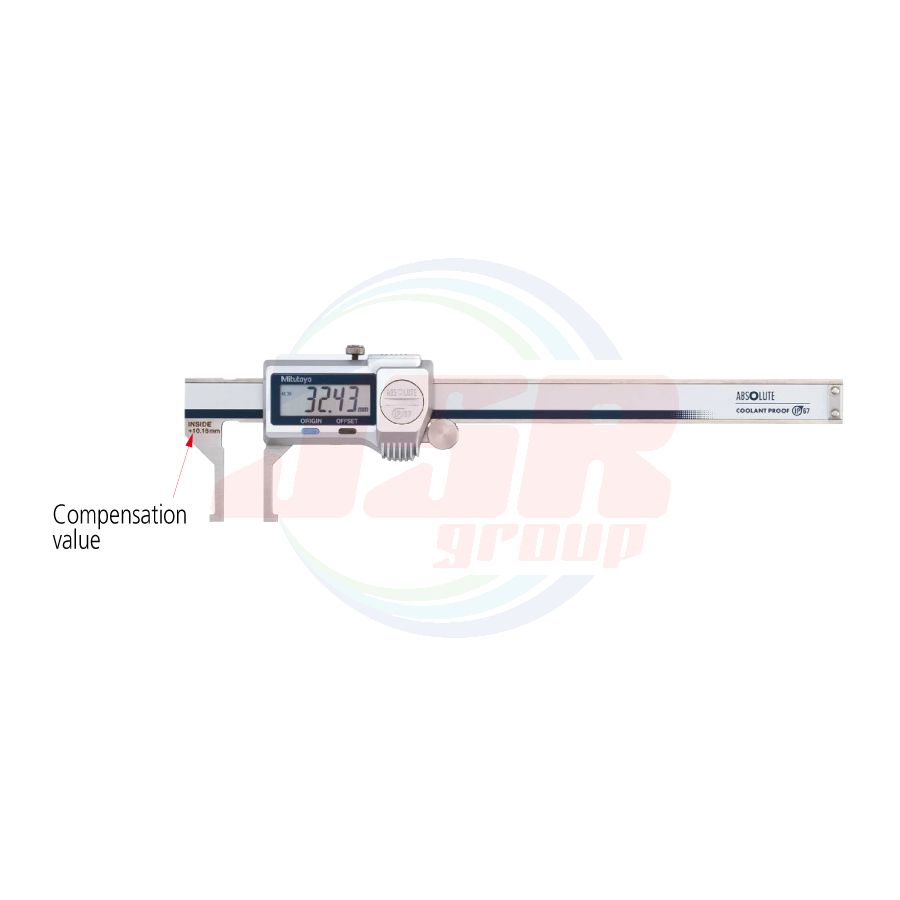

*2 Includes the offsetting function, which indicates the actual measurement value.
*3 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*4 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|
