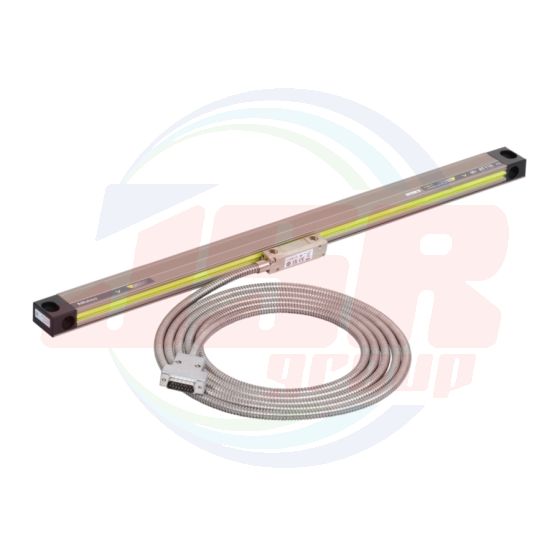

ABSOLUTE Linear Scale (assembly type) - ABS AT 715 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
ABS-AT715
ABSOLUTE and High Environmental Resistance Type Scale Unit
AT715 Absolute scale unit with excellent resistance to harsh environments
Reference dimensions for mounting : Effective range 100 – 3000 mm
| Model | AT715 ABSOLUTE and High Environmental Resistance Type |
|
| Sectional dimensions |
Section size 22 × 54 mm |
|
| Measurement method | Electromagnetic induction system | |
| Output wave form | ̶ | |
| Effective range*2 | 100 - 3000 mm | |
| Accuracy (20 ºC)*3 | ± 5 μ m (100 to 500 mm*) ± 7 μ m (600 to 1800 mm*) ± 10 μ m (2000 to 3000 mm*) *effective measurement length |
|
| Maximum response speed | 50 m/min | |
| Scale reference point | ̶ | |
| Linear expansion coefficient | ̶ | |
| Power supply | 5 VDC ± 5 % | |
| Max, current consumption | 70 mA | |
| Operating/Storage temperature | 0 to 45 ºC/-20 to 70 ºC | |
| Operating/Storage temperature (relative humidity) |
0 to 50 ºC/-20 to 70 ºC | |
| Head cable length | ̶ | |
| Dust/water protection level | IP67 | |
| Sliding force | 5 N or less | |
| Signal cable*7 | Standard accessory (refer to individual specifications for the length) | |
| Extension cable*8 (optional) (Conduit type) |
Length | Code No. |
| 2 m | 09AAB674A | |
| 5 m | 09AAB674B | |
| 7 m | 09AAB674C | |
*1: 37.5 × 95.5 mm for the AT103-3250 or larger models.
*2: Make sure that the linear scale's maximum travel distance (L1) is greater than the maximum travel distance of the machine when selecting a
linear scale size. Also, since the assured accuracy is limited within the effective range (L0), select a linear scale size with this in mind.
*3: (5+8L0/1000) μm for the AT103-3250 or larger models.
*4: It is possible to manufacture 1600 - 2000 mm for type F of the AT103; 100 - 1500 mm for type F of the AT113.
*5: It is possible to manufacture 100 - 500 mm for type S of the AT113.
*6: 50 m/min for the AT103-3250 or larger models.
*7: Vinyl-coated type signal cable and extension cable are available on request.
*8: The maximum extension length of AT715 is 15 m in total.
| แบรนด์สินค้า | MITUTOYO |
|---|
| AT715 | Effective range L0 (mm) |
Maximum travel length L1 (mm) |
Mounting hole pitch L2 (mm) |
Mounting hole pitch L3 (mm) |
Overall length L4 (mm) |
Middle support positions L5 (mm) |
Middle support positions L6 (mm) |
Middle support positions L7 (mm) |
Signal cable length (m) | |
| Order No. | Model | |||||||||
| 539-801N | AT715-100 | 100 (4 in) | 120 (4.72 in) | 258 (10.16 in) | 242 (9.53 in) | 278 (10.94 in) | ̶ | ̶ | ̶ | 3.5 |
| 539-802N | AT715-150 | 150 (6 in) | 170 (6.69 in) | 308 (12.13 in) | 292 (11.50 in) | 328 (12.91 in) | ||||
| 539-803N | AT715-200 | 200 (8 in) | 220 (8.66 in) | 358 (14.09 in) | 342 (13.46 in) | 378 (14.88 in) | ||||
| 539-804N | AT715-250 | 250 (10 in) | 270 (10.63 in) | 408 (16.06 in) | 392 (15.43 in) | 428 (16.85 in) | ||||
| 539-805N | AT715-300 | 300 (12 in) | 330 (12.99 in) | 468 (18.43 in) | 452 (17.80 in) | 488 (19.21 in) | ||||
| 539-806N | AT715-350 | 350 (14 in) | 380 (14.96 in) | 518 (20.39 in) | 502 (19.76 in) | 538 (21.18 in) | ||||
| 539-807N | AT715-400 | 400 (16 in) | 430 (16.93 in) | 568 (22.36 in) | 552 (21.73 in) | 588 (23.15 in) | ||||
| 539-808N | AT715-450 | 450 (18 in) | 480 (18.90 in) | 618 (24.33 in) | 602 (23.70 in) | 638 (25.12 in) | ||||
| 539-809N | AT715-500 | 500 (20 in) | 540 (21.26 in) | 678 (26.69 in) | 662 (26.06 in) | 698 (27.48 in) | 339 (13.35 in) | 331 (13.03 in) | ||
| 539-811N | AT715-600 | 600 (24 in) | 640 (25.20 in) | 778 (30.63 in) | 762 (30.00 in) | 798 (31.42 in) | 389 (15.31 in) | 381 (15.00 in) | ||
| 539-813N | AT715-700 | 700 (28 in) | 740 (29.13 in) | 878 (34.57 in) | 862 (33.94 in) | 898 (35.35 in) | 439 (17.28 in) | 431 (16.97 in) | ||
| 539-814N | AT715-750 | 750 (30 in) | 780 (30.71 in) | 918 (36.14 in) | 902 (35.51 in) | 938 (36.93 in) | 459 (18.07 in) | 451 (17.76 in) | ||
| 539-815N | AT715-800 | 800 (32 in) | 840 (33.07 in) | 978 (38.50 in) | 962 (37.87 in) | 998 (39.29 in) | 489 (19.25 in) | 481 (18.94 in) | ||
| 539-816N | AT715-900 | 900 (36 in) | 940 (37.01 in) | 1078 (42.44 in) | 1062 (41.81 in) | 1098 (43.23 in) | 539 (21.22 in) | 531 (20.91 in) | ||
| 539-817N | AT715-1000 | 1000 (40 in) | 1040 (40.94 in) | 1178 (46.38 in) | 1162 (45.75 in) | 1198 (47.17 in) | 589 (23.19 in) | 581 (22.87 in) | 5 | |
| 539-818N | AT715-1100 | 1100 (44 in) | 1140 (44.88 in) | 1278 (50.31 in) | 1262 (49.69 in) | 1298 (51.10 in) | 424 (16.69 in) | 416 (16.38 in) | 430 (16.93 in) | |
| 539-819N | AT715-1200 | 1200 (48 in) | 1240 (48.82 in) | 1378 (54.25 in) | 1362 (53.62 in) | 1398 (55.04 in) | 459 (18.07 in) | 451 (17.76 in) | 460 (18.11 in) | |
| 539-820N | AT715-1300 | 1300 (52 in) | 1340 (52.76 in) | 1478 (58.19 in) | 1462 (57.56 in) | 1498 (58.98 in) | 494 (19.45 in) | 486 (19.13 in) | 490 (19.29 in) | |
| 539-821N | AT715-1400 | 1400 (56 in) | 1440 (56.69 in) | 1578 (62.13 in) | 1562 (61.50 in) | 1598 (62.91 in) | 524 (20.63 in) | 516 (20.31 in) | 530 (20.87 in) | |
| 539-822N | AT715-1500 | 1500 (60 in) | 1540 (60.63 in) | 1678 (66.06 in) | 1662 (65.43 in) | 1698 (66.85 in) | 559 (22.01 in) | 551 (21.69 in) | 560 (22.05 in) | |
| 539-823N | AT715-1600 | 1600 (64 in) | 1640 (64.57 in) | 1778 (70.00 in) | 1762 (69.37 in) | 1798 (70.79 in) | 459 (18.07 in) | 451 (17.76 in) | 430 (16.93 in) | |
| 539-824N | AT715-1700 | 1700 (68 in) | 1740 (68.50 in) | 1878 (73.94 in) | 1862 (73.31 in) | 1898 (74.72 in) | 479 (18.86 in) | 471 (18.54 in) | 460 (18.11 in) | |
| 539-825N | AT715-1800 | 1800 (72 in) | 1840 (72.44 in) | 1978 (77.87 in) | 1962 (77.24 in) | 1998 (78.66 in) | 459 (18.07 in) | 451 (17.76 in) | 530 (20.87 in) | |
| 539-860N | AT715-2000 | 2000 (80 in) | 2040 (80.31 in) | 2178 (85.75 in) | 2162 (85.12 in) | 2198 (86.54 in) | 539 (21.22 in) | 531 (20.91 in) | 550 (21.65 in) | |
| 539-861N | AT715-2200 | 2200 (88 in) | 2240 (88.19 in) | 2378 (93.62 in) | 2362 (92.99 in) | 2398 (94.41 in) | 469 (18.46 in) | 461 (18.15 in) | 480 (18.90 in) | |
| 539-862N | AT715-2400 | 2400 (96 in) | 2440 (96.06 in) | 2578 (101.50 in) | 2562 (100.87 in) | 2598 (102.28 in) | 509 (20.04 in) | 501 (19.72 in) | 520 (20.47 in) | 7* |
| 539-863N | AT715-2500 | 2500 (100 in) | 2540 (100.00 in) | 2678 (105.43 in) | 2662 (104.80 in) | 2698 (106.22 in) | 529 (20.83 in) | 521 (20.51 in) | 540 (21.26 in) | |
| 539-864N | AT715-2600 | 2600 (104 in) | 2640 (103.94 in) | 2778 (109.37 in) | 2762 (108.74 in) | 2798 (110.16 in) | 549 (21.61 in) | 541 (21.30 in) | 560 (22.05 in) | |
| 539-865N | AT715-2800 | 2800 (112 in) | 2840 (111.81 in) | 2978 (117.24 in) | 2962 (116.61 in) | 2998 (118.03 in) | 489 (19.25 in) | 481 (18.94 in) | 500 (19.69 in) | |
| 539-866N | AT715-3000 | 3000 (120 in) | 3040 (119.68 in) | 3178 (125.12 in) | 3162 (124.49 in) | 3198 (125.91 in) | 529 (20.83 in) | 521 (20.51 in) | 530 (20.87 in) | |
* Combination of a 5 m signal cable and a 2 m extension cable
