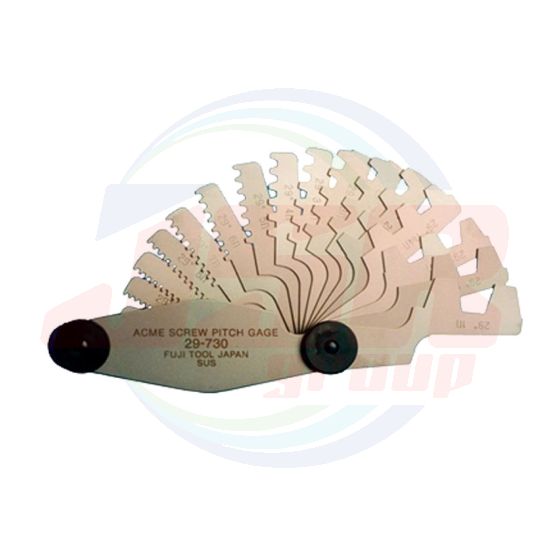

้Acme Screw Pitch Gauge

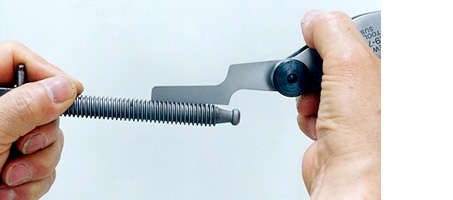

Measure the pitch of 30° (Metric) and 29" (Inch) trapezoidal screw thread (Acme threads).
We put together in one holder 16 leaves for 29 and 12 leaves for 30' with both of 90mm long leaf. in the range of 30-40mm on gear tooth.
It is very easy to use and all gauges is linked on one side and made from no rust of stainless steel.
Specification Table
for 30° acme thread
| Code No. |
Model No.
|
Leaves |
Angle
|
Size Composition/Contents (mm) |
| 03-306 | 30-720 | 12 | 30° | 2 3 4 5 6 7 8 9 10 12 16 20 |
for 29° acme thread
| Code No. |
Model No.
|
Leaves |
Angle
|
Size Composition/Contents (inch) |
| 03-307 | 29-730 | 16 | 29° | 1 1 1/3 1 1/2 1 3/4 2 2 1/2 3 3 1/2 4 5 6 7 8 9 10 12 |
Use Cases
| แบรนด์สินค้า | FUJI TOOL |
|---|
