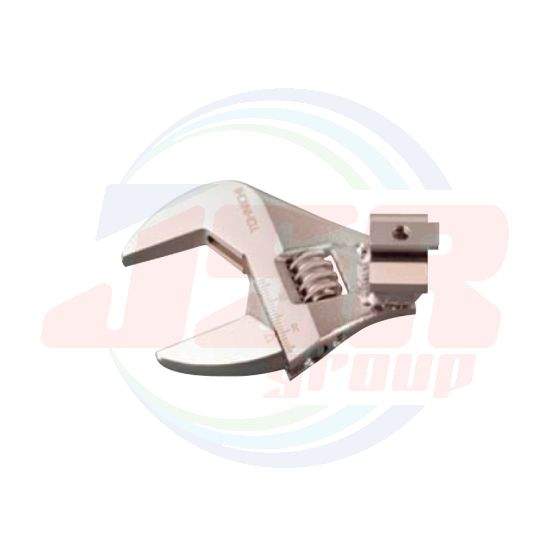

AH/AH2 - Adjustable Open End Head

AH is easy and convenient to use for applications that require different size bolt heads.

Available currently only for the 15mm diameter root shaped Tohnichi torque wrenches.

Order No. (Body size x Width)	Head Size	Allowable Torque		Inner Width Min.-StandardMax. [mm]	Dimensions
Order No. (Body size x Width)	Head Size	[N•m]	[kgf•cm]	Inner Width Min.-StandardMax. [mm]	S [mm]	L [mm]	t [mm]	h [mm]
AH10Dx13	10D	25	250	3-8-13	36	57	9	23
AH10Dx26	10D	25	250	7-17-26	49	62	11	25
AH12Dx13	12D	30	300	3-8-13	36	66	9	23
AH12Dx26		50	500	7-17-26	49	71	11	26
AH12Dx36				8-22-36	65	78	13	27
AH15D2x26	15D			10-18-26	50	77	11	31
AH15D2x30		100	1000	13-22-30	60	84	12	32
AH15D2x36		140	1400	13-24-36	65	87	13	33

Note : Use with a click type torque wrench.
