SKU

AL-HT STI (Unified Threads)

This is used to cut a comparatively soft material, such as aluminum, and create an internal thread for accommodating a helical coil wire screw thread insert, in order to reinforce the internal thread and increase durability.
Diameter of the internal screw threads into which the insert coil is inserted, is larger than that of the corresponding external screw threads by the thickness of the coil. Therefore, the internal screw thread diameter of the insert coil thread tap is also larger than its nominal diameter.
The bored hole size needs to be also larger. Make sure to prepare an appropriate bored hole size before tapping.
The shank diameter is also larger. Make sure to use an appropriate tap holder.
Oversize taps of Ib+30 are also available to allow for shrinkage of internal threads.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

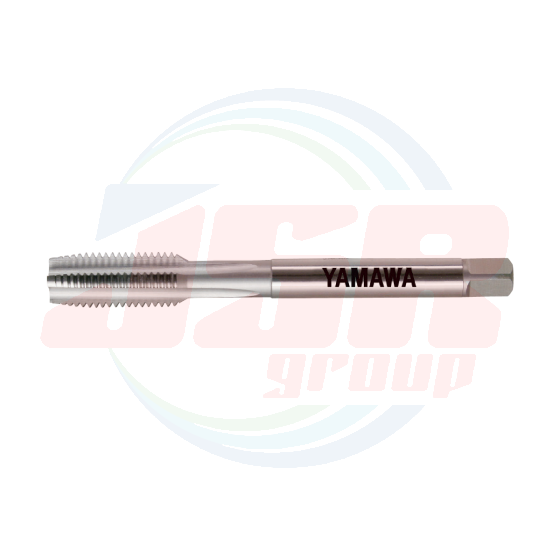

AL-HT STI (Unified Threads) | Hand Taps for Aluminum Materials (for Helical Coil Wire Screw Thread Inserts) | YAMAWA

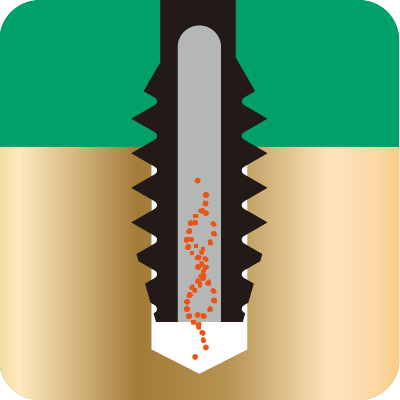

Details

Specification

Tapping Speeds depending on Materials

Segment：1A

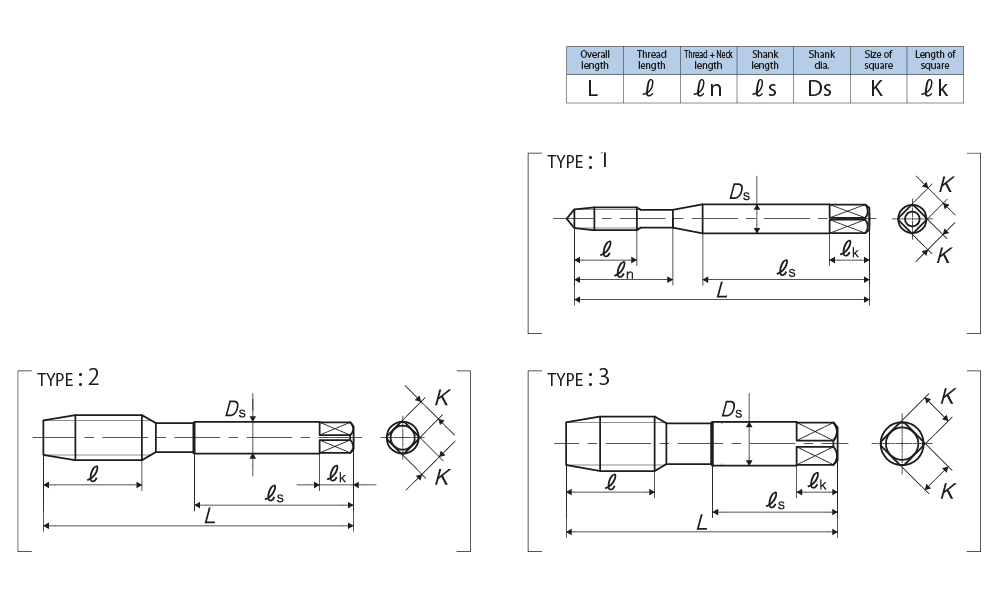

Size	Class	Code	Chamfer	Basic major dia (mm)	L (mm)	ℓ (mm)	ℓn (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	No. of flutes	TYPE
For Unified Threads
No.4-40UNC	Ⅰb	TWUN4H1LEB5	5P	3.670	52	11	17	29	5	4	7	3	1
No.4-40UNC	Ⅰb	TWUN4H1LEBA	1.5P	3.670	52	11	17	29	5	4	7	3	1
No.4-48UNF	Ⅰb	TWUN4F1LEB5	5P	3.532	52	11	17	29	5	4	7	3	1
No.4-48UNF	Ⅰb	TWUN4F1LEBA	1.5P	3.532	52	11	17	29	5	4	7	3	1
No.5-40UNC	Ⅰb	TWUN5H1LEB5	5P	4.000	52	11	17	29	5	4	7	3	1
No.5-40UNC	Ⅰb	TWUN5H1LEBA	1.5P	4.000	52	11	17	29	5	4	7	3	1
No.6-32UNC	Ⅰb	TWUN6J1LEB5	5P	4.536	60	13	22	33	5.5	4.5	7	3	1
No.6-32UNC	Ⅰb	TWUN6J1LEBA	1.5P	4.536	60	13	22	33	5.5	4.5	7	3	1
No.6-40UNF	Ⅰb	TWUN6H1LEB5	5P	4.330	60	13	22	33	5.5	4.5	7	3	1
No.6-40UNF	Ⅰb	TWUN6H1LEBA	1.5P	4.330	60	13	22	33	5.5	4.5	7	3	1
No.8-32UNC	Ⅰb	TWUN8J1LEB5	5P	5.197	62	15	26	33	6	4.5	7	4	1
No.8-32UNC	Ⅰb	TWUN8J1LEBA	1.5P	5.197	62	15	26	33	6	4.5	7	4	1
No.8-36UNF	Ⅰb	TWUN8I1LEB5	5P	5.083	62	9.5	26	33	6	4.5	7	4	1
No.8-36UNF	Ⅰb	TWUN8I1LEBA	1.5P	5.083	62	9.5	26	33	6	4.5	7	4	1
No.10-24UNC	Ⅰb	TWUNAM1LEB5	5P	6.201	62	15	26	33	6	4.5	7	4	1
No.10-24UNC	Ⅰb	TWUNAM1LEBA	1.5P	6.201	62	15	26	33	6	4.5	7	4	1
No.10-32UNF	Ⅰb	TWUNAJ1LEB5	5P	5.857	62	15	26	33	6	4.5	7	4	1
No.10-32UNF	Ⅰb	TWUNAJ1LEBA	1.5P	5.857	62	15	26	33	6	4.5	7	4	1
No.12-24UNC	Ⅰb	TWUNCM1LEB5	5P	6.861	70	19	-	36	6.2	5	8	4	2
No.12-24UNC	Ⅰb	TWUNCM1LEBA	1.5P	6.861	70	19	-	36	6.2	5	8	4	2
1/4-20UNC	Ⅰb	TWU04N1LEB5	5P	8.000	70	19	-	36	6.2	5	8	4	2
1/4-20UNC	Ⅰb	TWU04N1LEBA	1.5P	8.000	70	19	-	36	6.2	5	8	4	2
1/4-28UNF	Ⅰb	TWU04K1LEB5	5P	7.528	70	19	-	36	6.2	5	8	4	2
1/4-28UNF	Ⅰb	TWU04K1LEBA	1.5P	7.528	70	19	-	36	6.2	5	8	4	2
5/16-18UNC	Ⅰb	TWU05O1LEB5	5P	9.771	75	23	-	38	7	5.5	8	4	2
5/16-18UNC	Ⅰb	TWU05O1LEBA	1.5P	9.771	75	23	-	38	7	5.5	8	4	2
5/16-24UNF	Ⅰb	TWU05M1LEB5	5P	9.313	75	23	-	38	7	5.5	8	4	2
5/16-24UNF	Ⅰb	TWU05M1LEBA	1.5P	9.313	75	23	-	38	7	5.5	8	4	2
3/8-16UNC	Ⅰb	TWU06P1LEB5	5P	11.587	82	26	-	42	8.5	6.5	9	4	2
3/8-16UNC	Ⅰb	TWU06P1LEBA	1.5P	11.587	82	26	-	42	8.5	6.5	9	4	2
3/8-24UNF	Ⅰb	TWU06M1LEB5	5P	10.900	82	26	-	42	8.5	6.5	9	4	2
3/8-24UNF	Ⅰb	TWU06M1LEBA	1.5P	10.900	82	26	-	42	8.5	6.5	9	4	2
7/16-14UNC	Ⅰb	TWU07Q1LEB5	5P	13.469	88	26	-	45	10.5	8	11	4	2
7/16-14UNC	Ⅰb	TWU07Q1LEBA	1.5P	13.469	88	26	-	45	10.5	8	11	4	2
7/16-20UNF	Ⅰb	TWU07N1LEB5	5P	12.762	88	26	-	45	10.5	8	11	4	2
7/16-20UNF	Ⅰb	TWU07N1LEBA	1.5P	12.762	88	26	-	45	10.5	8	11	4	2
1/2-13UNC	Ⅰb	TWU08R1LEB5	5P	15.238	95	26	-	48	12.5	10	13	4	2
1/2-13UNC	Ⅰb	TWU08R1LEBA	1.5P	15.238	95	26	-	48	12.5	10	13	4	2
1/2-20UNF	Ⅰb	TWU08N1LEB5	5P	14.350	95	26	-	48	12.5	10	13	4	2
1/2-20UNF	Ⅰb	TWU08N1LEBA	1.5P	14.350	95	26	-	48	12.5	10	13	4	2
5/8-11UNC	Ⅰb	TWU10U1LEB5	5P	18.875	105	33	-	50	15	12	15	4	3
5/8-11UNC	Ⅰb	TWU10U1LEBA	1.5P	18.875	105	33	-	50	15	12	15	4	3
5/8-18UNF	Ⅰb	TWU10O1LEB5	5P	17.708	100	33	-	51	14	11	14	4	2
5/8-18UNF	Ⅰb	TWU10O1LEBA	1.5P	17.708	100	33	-	51	14	11	14	4	2
3/4-10UNC	Ⅰb	TWU12V1LEB5	5P	22.349	115	33	-	55	17	13	16	4	3
3/4-10UNC	Ⅰb	TWU12V1LEBA	1.5P	22.349	115	33	-	55	17	13	16	4	3
3/4-16UNF	Ⅰb	TWU12P1LEB5	5P	21.112	115	33	-	55	17	13	16	4	3
3/4-16UNF	Ⅰb	TWU12P1LEBA	1.5P	21.112	115	33	-	55	17	13	16	4	3
1/4W20	Ⅰb	TWW04N1LEB5	5P	7.976	70	19	-	36	6.2	5	8	4	2
1/4W20	Ⅰb	TWW04N1LEBA	1.5P	7.976	70	19	-	36	6.2	5	8	4	2
5/16W18	Ⅰb	TWW05O1LEB5	5P	9.744	75	23	-	38	7	5.5	8	4	2
5/16W18	Ⅰb	TWW05O1LEBA	1.5P	9.744	75	23	-	38	7	5.5	8	4	2
3/8W16	Ⅰb	TWW06P1LEB5	5P	11.558	82	26	-	42	8.5	6.5	9	4	2
3/8W16	Ⅰb	TWW06P1LEBA	1.5P	11.558	82	26	-	42	8.5	6.5	9	4	2
7/16W14	Ⅰb	TWW07Q1LEB5	5P	13.434	88	26	-	45	10.5	8	11	4	2
7/16W14	Ⅰb	TWW07Q1LEBA	1.5P	13.434	88	26	-	45	10.5	8	11	4	2
1/2W12	Ⅰb	TWW08S1LEB5	5P	15.409	95	26	-	48	12.5	10	13	4	2
1/2W12	Ⅰb	TWW08S1LEBA	1.5P	15.409	95	26	-	48	12.5	10	13	4	2
5/8W11	Ⅰb	TWW10U1LEB5	5P	18.833	105	33	-	50	15	12	15	4	3
5/8W11	Ⅰb	TWW10U1LEBA	1.5P	18.833	105	33	-	50	15	12	15	4	3
3/4W10	Ⅰb	TWW12V1LEB5	5P	22.302	115	33	-	55	17	13	16	4	3
3/4W10	Ⅰb	TWW12V1LEBA	1.5P	22.302	115	33	-	55	17	13	16	4	3
