Product Features
- Stable screw tapping in light alloy castings such as aluminum die casting and aluminum casting even at a high speed range.
- Optimum design of the flute makes it possible to produce stable and clean internal threading with fewer burrs
on the inner diameter that normally occur in tapping of light alloys.
Tapping Data
Thread Size [Ｍ6×１]
| Material | AC4C |
|
| Bored Hole Size | φ5.0 | |
| Tapping Length | ９ｍｍ（Blind hole） | |
| Tapping Speed | 20 ｍ/min | |
| Machinery Type | Vertical type machining center | |
| Tapping Fluid | Water soluble cutting fluid (chlorinefree 20 to 1 dilution) |

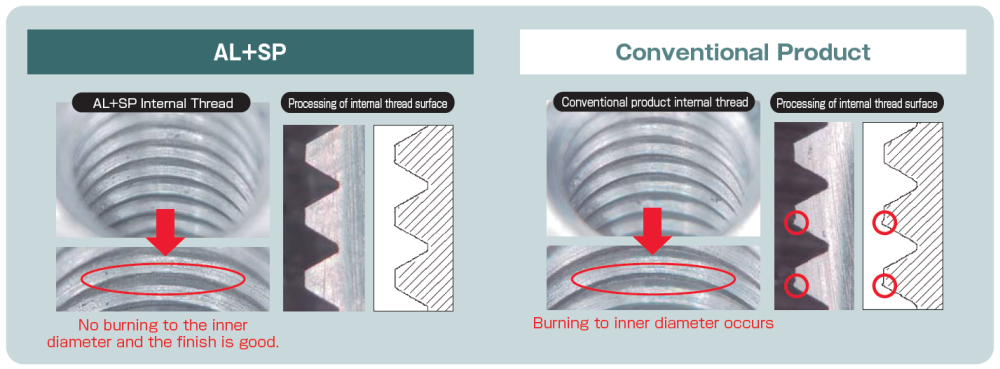

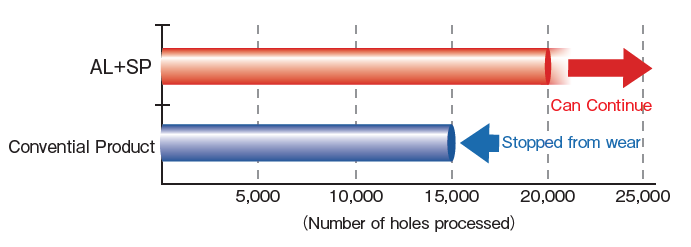

- AL＋SP Compared to conventional products, the internal thread quality is good and the AL+SP had long tool life.
pecification
Tapping Speeds depending on Materials
- Product Name and Size.
| AL＋SP OX | ～M6 |
| AL－SP OX | M8～ |

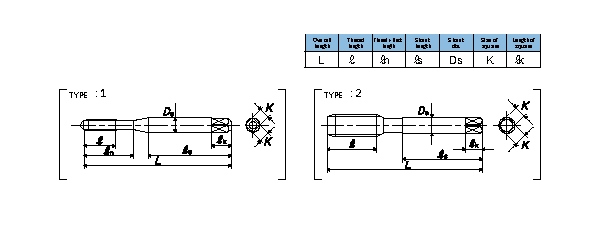

Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M2×0.4 |
P2 |
ASHPQ2.0E |
2.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.3×0.4 |
P2 |
ASHPQ2.3E |
2.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.5×0.45 |
P2 |
ASHPQ2.5F |
2.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.6×0.45 |
P2 |
ASHPQ2.6F |
2.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M3×0.5 |
P2 |
ASHPQ3.0G |
2.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P2 |
ASHPQ3.5H |
2.5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P3 |
ASHPR4.0I |
2.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
ASHPR5.0K |
2.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
ASHPR6.0M |
2.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
