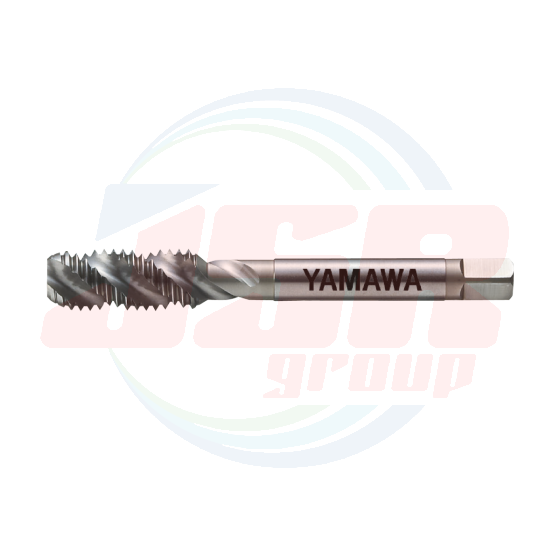

AL-SP STI (Metric Threads) | Spiral Fluted Taps for Aluminum Materials (for Helical Coil Wire Screw Thread Inserts) | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 390.65
พร้อมส่ง
SKU
AL-SP STI (Metric Threads)

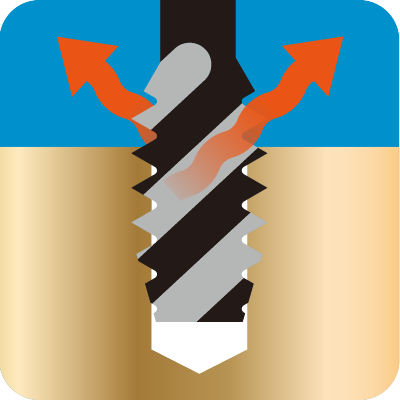

- This is used to cut a comparatively soft material, such as aluminum, and create an internal thread for accommodating a helical coil wire screw thread insert, in order to reinforce the internal thread and increase durability.
- Diameter of the internal screw threads into which the insert coil is inserted, is larger than that of the corresponding external screw threads by the thickness of the coil. Therefore, the internal screw thread diameter of the insert coil thread tap is also larger than its nominal diameter.
- The bored hole size needs to be also larger. Make sure to prepare an appropriate bored hole size before tapping.
- The shank diameter is also larger. Make sure to use an appropriate tap holder.
- Oversize taps of Ib+

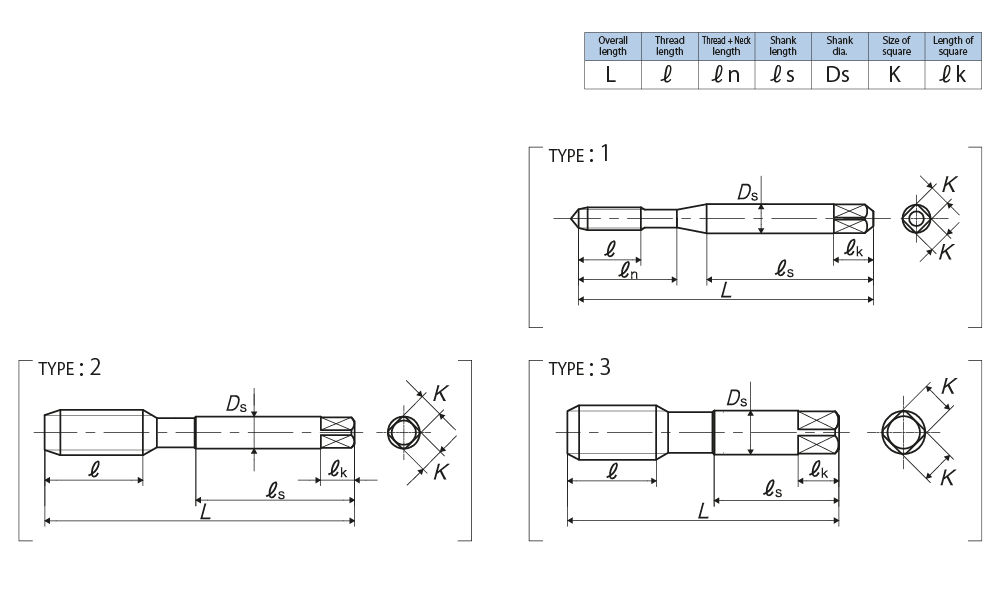

Specification
Tapping Speed depending on Materials
Oversize
Segment：1C
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||||
|
M3×0.5 |
Ⅰb |
SW3.0G1LEN |
2.5P |
3.650 |
52 |
7.5 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M3×0.5 |
Ⅰb+30 |
SW3.0G3LEN |
2.5P |
3.650 |
52 |
7.5 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
Ⅰb |
SW4.0I1LEN |
2.5P |
4.909 |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M4×0.7 |
Ⅰb+30 |
SW4.0I3LEN |
2.5P |
4.909 |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
Ⅰb |
SW5.0K1LEN |
2.5P |
6.039 |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
Ⅰb+30 |
SW5.0K3LEN |
2.5P |
6.039 |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
Ⅰb |
SW6.0M1LEN |
2.5P |
7.299 |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M6×1 |
Ⅰb+30 |
SW6.0M3LEN |
2.5P |
7.299 |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1.25 |
Ⅰb |
SW8.0N1LEN |
2.5P |
9.624 |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M8×1.25 |
Ⅰb+30 |
SW8.0N3LEN |
2.5P |
9.624 |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.5 |
Ⅰb |
SW010O1LEN |
2.5P |
11.948 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M10×1.5 |
Ⅰb+30 |
SW010O3LEN |
2.5P |
11.948 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M10×1.25 |
Ⅰb |
SW010N1LEN |
2.5P |
11.624 |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.75 |
Ⅰb |
SW012P1LEN |
2.5P |
14.273 |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M12×1.5 |
Ⅰb |
SW012O1LEN |
2.5P |
13.948 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M12×1.25 |
Ⅰb |
SW012N1LEN |
2.5P |
13.624 |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×2 |
Ⅰb |
SW014Q1LEN |
2.5P |
16.598 |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M14×1.5 |
Ⅰb |
SW014O1LEN |
2.5P |
15.948 |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×2 |
Ⅰb |
SW016Q1LEN |
2.5P |
18.598 |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M16×1.5 |
Ⅰb |
SW016O1LEN |
2.5P |
17.948 |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
2 |
|
M18×2.5 |
Ⅰb |
SW018R1LEN |
2.5P |
21.248 |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M18×1.5 |
Ⅰb |
SW018O1LEN |
2.5P |
19.948 |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
M20×2.5 |
Ⅰb |
SW020R1LEN |
2.5P |
23.248 |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
3 |
|
M20×1.5 |
Ⅰb |
SW020O1LEN |
2.5P |
21.948 |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
3 |
|
M22×2.5 |
Ⅰb |
SW022R1LEN |
2.5P |
25.248 |
125 |
39 |
- |
58 |
19 |
15 |
18 |
4 |
3 |
|
M24×3 |
Ⅰb |
SW024S1LEN |
2.5P |
27.897 |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
