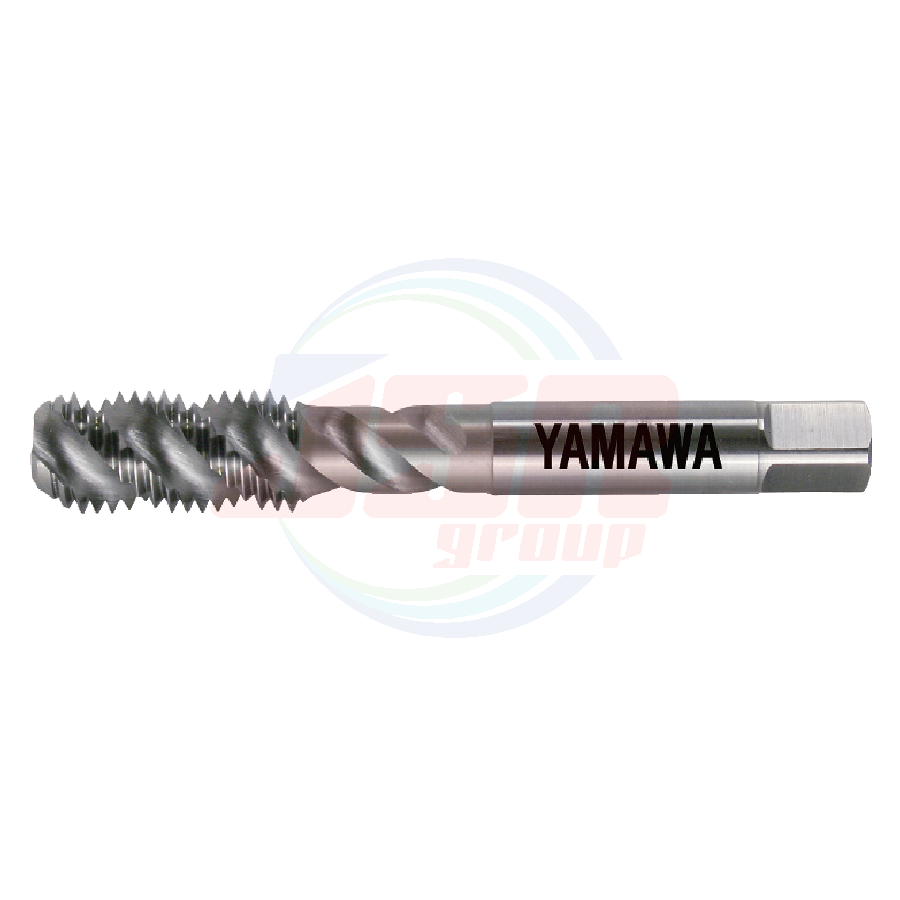

AL-SP2.3X0.4-1.5 (SY2.3EQLENA) | Spiral Fluted Taps for Aluminum 1.5P | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 400.00
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
SY2.3EQLENA
QTY:
0
Product Features
- In aluminum die casting and aluminum casting tapping, AL-SP solves such problems as chip jamming, chip clogging, and torn threads.
Specification
Tapping Speeds depending on Materials
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M2×0.4 |
P2 |
SY2.0EQLENA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.3×0.4 |
P2 |
SY2.3EQLENA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.5×0.45 |
P2 |
SY2.5FQLENA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.6×0.45 |
P2 |
SY2.6FQLENA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M3×0.5 |
P2 |
SY3.0GQLENA |
1.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P2 |
SY3.5HQLENA |
1.5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P3 |
SY4.0IRLENA |
1.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
SY5.0KRLENA |
1.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
SY6.0MRLENA |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
SY8.0NRLENA |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
SY010ORLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
SY010NRLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1 |
P3 |
SY010MRLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P3 |
SY012PRLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
SY012ORLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P3 |
SY012NRLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1 |
P3 |
SY012MRLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P3 |
SY014QRLENA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
SY014ORLENA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P3 |
SY016QRLENA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
SY016ORLENA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M2.3×0.4 (SY2.3EQLENA) |
| Model | AL-SP 1.5P |
| Size | M2.3X0.4 |
| Class | P2 |
| Chamfer | 1.5P |
| Overall length (L) | 42 |
| Thread length (ℓ) | 7.2 |
| Thread + Neck length (ℓn) | 12 |
| Shank length (ℓs) | 27 |
| Shank dia. (Ds) | 3 |
| Size of Square (K) | 2.5 |
| Length of square (ℓk) | 5 |
