AP-130 (007519) | ANGLE PROTRACTOR | SK NIIGATASEIKI

ANGLE PROTRACTOR

Specialized for angle measurement.
Three measurement points enable multiple angle measurements.

USE

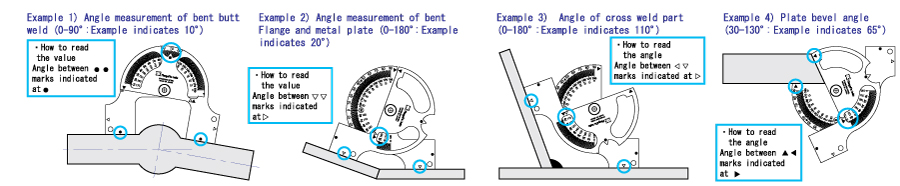

● Measuring angles for sheet metal bending, welding flanges and butt joints, openings and bevels, scissors plates, etc.
MATERIAL
● Stainless steel
FEATURES
● Enables a wide range of angle measurements before and after welding process
● Direct measurement can be done without interference from swelling or weld bead
● Can measure sheet metal bends and outside angle measurements
●Non-reflective satin finish for better legibility
● Solid and convenient carrying（ provided with plastic case）

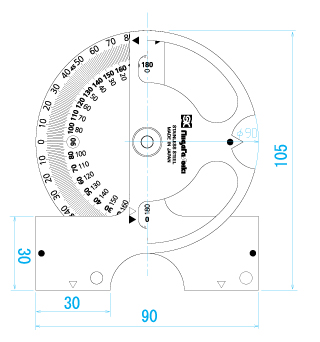

SPECIFICATIONS
●Bevel angle: Scissors angle 30〜130°（ minimum graduation: 1°）
● Bending angle and angle of butt weld joint： 0～90°
● Stud and beam angle after welding： 0～180°
