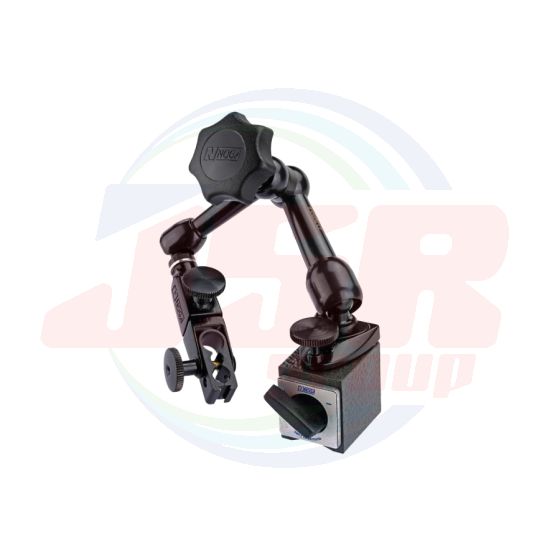

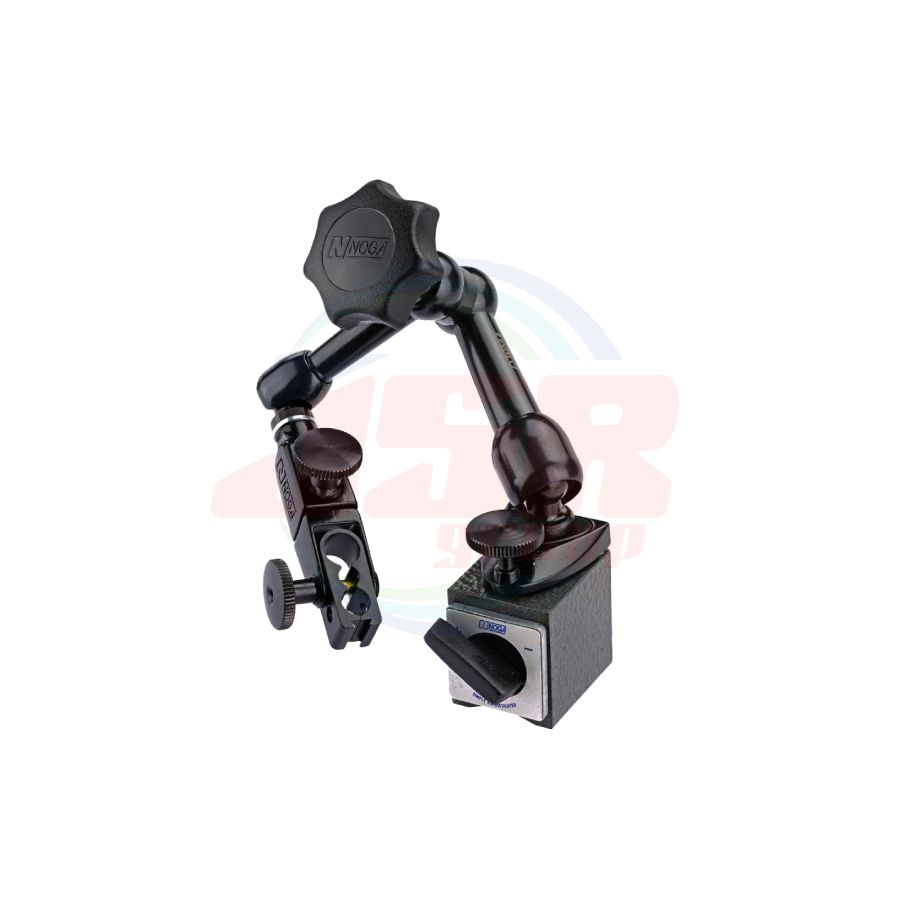

Articulated Holders FAT & FAB
NOGA articulated holders with double fine adjustment.
New double fine adjustment:
BOTTOM: unique single direction
TOP: universal swivel clamp
• Holds 6 mm, 8 mm, 3/8” and dovetail.
• Unique central locking mechanism with Noga designed spring loaded bearing.
• Five axis holder.
• Powerful ON/OFF magnetic base.
• Instantly fastens in any position.
• Fast and easy to set up gauges into required position.
• Black finished arms.

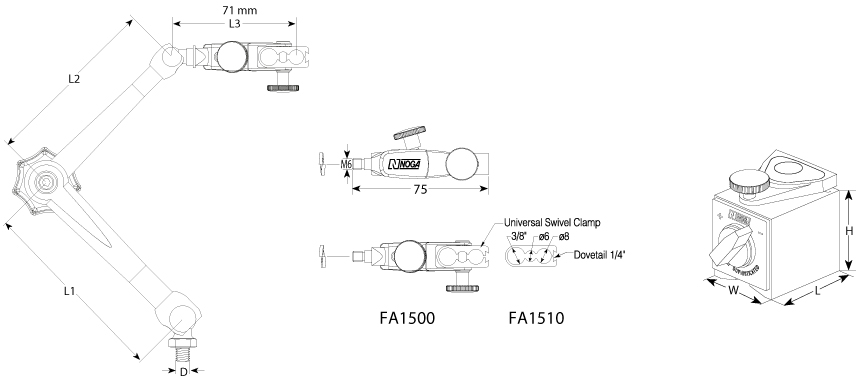

| Order No. | Holder | Arm Length | Magnet | ||||
| Bottom Thread (D) |
Weight [Kg] |
Bottom Arm (L1) |
Top Thread (L2) |
Total (L1+L2+L3) |
Force (N) |
Dimension (L x W x H) |
|
| NF6160 | Ext. M5 | 0.55 | 56 | 51 | 178 | 320 | 40 x 30 x 35 |
| DG6160 | Ext. M8 | 1.43 | 110 | 101 | 282 | 800 | 60 x 50 x 55 |
| MG6161 | Ext. M8 | 1.97 | 133 | 113 | 317 | 800 | 60 x 50 x 55 |
| แบรนด์สินค้า | NOGA |
|---|
