Articulated Holders FAT | NOGA
สินค้าหมด
SKU
NOGA-FAT
Due to its stability and ease of use, NOGA articulated holders have become the industry most wanted.
– New Fine adjustment on Top with universal swivel clamp.
– Holds 6mm, 8mm,3/8″ and dovetail.
– Unique central locking mechanism with NOGA designed spring loaded bearing.
– Dial gauge holder is 3 dimensional.
– Most powerful on/off magnetic base.
– Instant fixation in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms

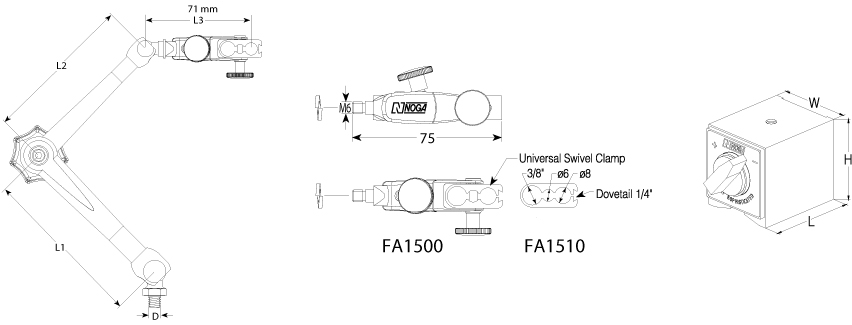

Specifications Table
| Holder | Arm Length | Magnet | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Order no. | Bottom Thread | Weight [Kg] | Bottom Arm (L1) |
Top Arm (L2) |
Total Arm (L1 + L2 + L3) | Magnet Force [N] |
Dimension (L) | Dimension (W) | Dimension (H) |
| NF61003 | Ext. M5 | 0.52 | 56 | 51 | 178 | 320 | 40 | 30 | |
| NF60103 | Ext. M5 | 0.32 | 56 | 51 | 178 | -- | -- | -- | -- |
| DG61003 | Ext. M8 | 1.35 | 110 | 101 | 282 | 800 | 60 | 50 | 55 |
| DG60103 | Ext. M8 | 0.34 | 110 | 101 | 282 | -- | -- | -- | -- |
| MG61003 | Ext. M8 | 1.9 | 133 | 113 | 317 | 800 | 60 | 50 | 55 |
| MG60103 | Ext. M8 | 0.9 | 133 | 113 | 317 | -- | -- | -- | -- |
| MG71003 | Ext. M8 | 1.95 | 163.5 | 113 | 347.5 | 800 | 60 | 50 | 55 |
| MG70103 | Ext. M8 | 0.95 | 163.5 | 113 | 347.5 | -- | -- | -- | -- |
| MA61003 | Ext. M10 x 1.25 | 3.5 | 286.5 | 222.5 | 580 | 1300 | 120 | 50 | 55 |
| MA60103 | Ext. M10 x 1.25 | 3.1 | 286.5 | 222.5 | 580 | -- | -- | -- | -- |
| แบรนด์สินค้า | NOGA |
|---|
