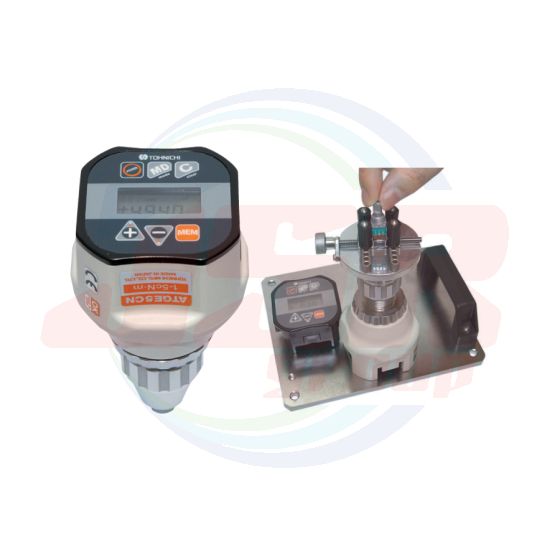

ATGE-G - DIGITAL TORQUE GAUGE | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-ATGE-G
DIGITAL | 3-JAW CHUCK | DIRECT READING | BATTERY
● Digital torque gauge with pull out display
● For measurement, inspection and tightening of low torque range
● 3 way configuration; hand-held, table top or as a torque meter with testing fixture
Accuracy ±2%+1 digit
| Order No. | Torque Range | Chuck Grip [mm] | Dimension [mm] |
Weight kg |
||||||||
| [cN•m] | [mN•m] | [gf•cm] | [ozf•in] | Overall Length | Outside Diameter | |||||||
| Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | |||||
| ATGE05CN-G | 0.1-0.5 | 0.001 | 1-5 | 0.01 | 10-50 | 0.1 | 0.15-0.7 | 0.001 | Ø1-6.5 | 120 | 67 | 0.305 |
| ATGE1CN-G | 0.2-1 | 0.001 | 2-10 | 0.01 | 20-100 | 0.1 | 0.3-1.4 | 0.001 | ||||
| ATGE2CN-G | 0.4-2 | 0.002 | 4-20 | 0.02 | 40-200 | 0.2 | 0.6-2.8 | 0.002 | ||||
| ATGE5CN-G | 1-5 | 0.005 | 10-50 | 0.05 | 100-500 | 0.5 | 1.5-7 | 0.005 | ||||
| ATGE10CN-G | 2-10 | 0.01 | 20-100 | 0.1 | 200-1000 | 1 | 3-14 | 0.01 | ||||
| ATGE20CN-G | 4-20 | 0.02 | 40-200 | 0.2 | 400-200 | 2 | 6-28 | 0.02 | ||||
Note. Aluminum case and steel chuck are standard for ATGE-G models. Plastic case and chuck/322 is sold separately. Standard Accessories : Carrying case
| แบรนด์สินค้า | TOHNICHI |
|---|
