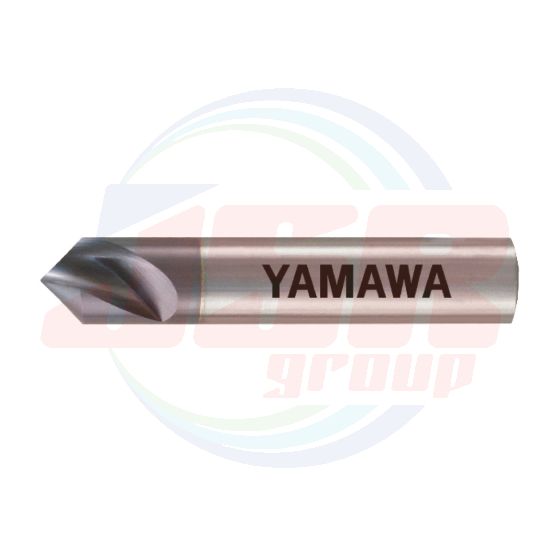

AUPEQ | Coated Single End Point Drill PE-90° | YAMAWA

Product Features
● An excellent surface finish can be obtained while maintaining cutting edge sharpness from the high helix flute design.
● Accuracy improvements are also achieved from the single end design.
● A design for higher rigidity enables high speed cutting.
● The problem of cutting edge breakage when the center hole drill is in use has been solved by using the point drill.
● Simultaneous combining the center positioning and chamfering is possible. It can also be used as a multi function tool like groove processing.
● Higher precision machining can be achieved with the two stage point shape design.
● With a single end center point drill, the degree of chip space widens, so the chips are discharged smoothly.

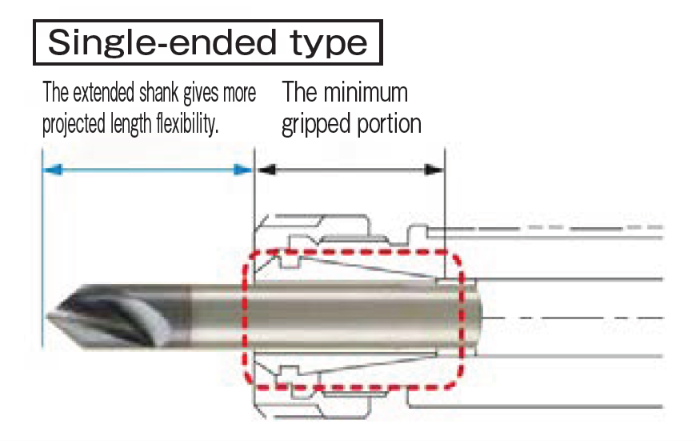

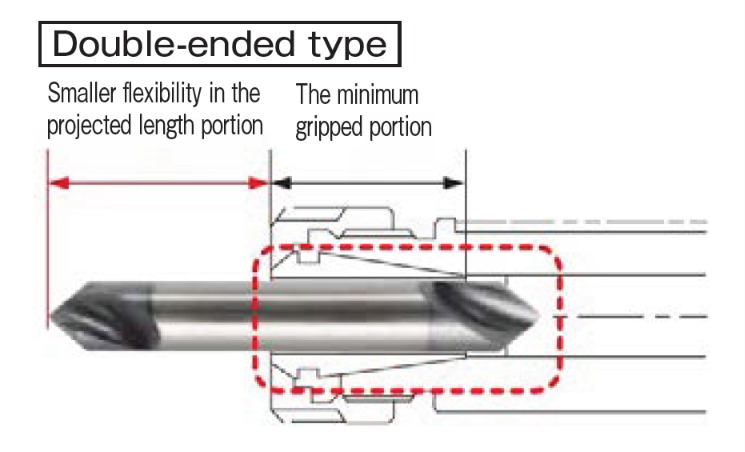

Differences in projection length and degrees of freedom between single end and double end point drills

⇰

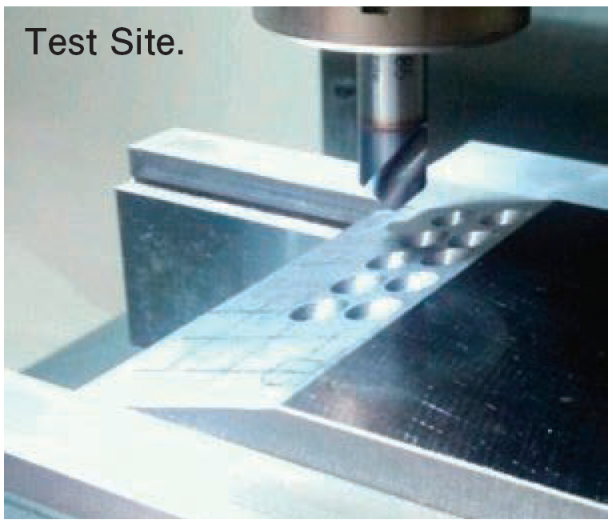

Cutting data

Tool Type	Coated Single-End Center Hole Drill AUPEQ	Coated Double End Point Drill Comparison Product
Size	12×3.5×90゜
Workpiece Material	SCM440(alloy steel)
Surface Condition	flat 15゜incline surface
Cutting Speed	10m/min
Feed Per Rev.	0.05mm/rev
Processing Length	φ8 flat surface
Cutting Fluid	Water soluble cutting fluid (x20)
Machinery Type	Vertical machining center

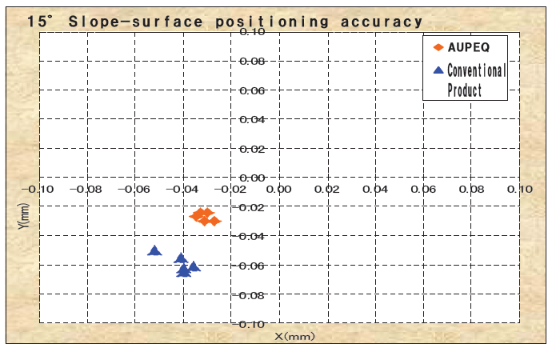

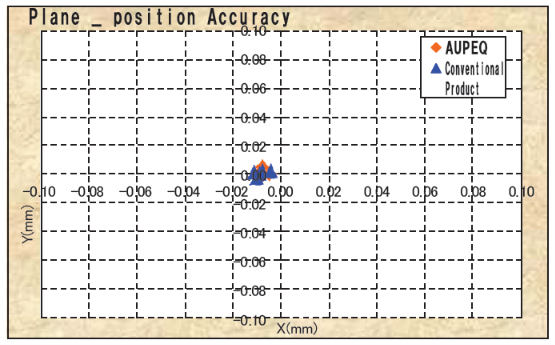

AUPEQ / AUPES improves positioning accuracy dramatically.
High precision positioning is possible as shown in the above figure.
