Auto-Clutch Test Indicator (Low measuring force) | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-AUTO-CLUTCH-LOW
Auto-Clutch Test Indicator (Low measuring force)
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Dial Reading |
Measuring Force (N) |
Repeatability (μm) |
Adjacent Error(μm) |
Entire measuring range in foward direction Error(μm) |
Hysteresis (μm) |
Standard Stylus |
Weight (g) |
| LT-352-5 | 0.01 | 0.8 | 0-40-0 | 0.05 or less | 3 | 5 | 9 | 4 | ZS-709 | 75 |
| LT-353-5 | 0.01 | 0.8 | 0-40-0 | 0.05 or less | 3 | 5 | 10 | 5 | ZS-710 | 75 |
| LT-355-10 | 0.002 | 0.28 | 0-140-0 | 0.1 or less | 1 | 2 | 4 | 3 | ZS-711 | 75 |
| LT-358-15 | 0.001 | 0.2 | 0-140-0 | 0.15 or less | 1 | 2 | 4 | 3 | ZS-712 | 75 |
| แบรนด์สินค้า | TECLOCK |
|---|

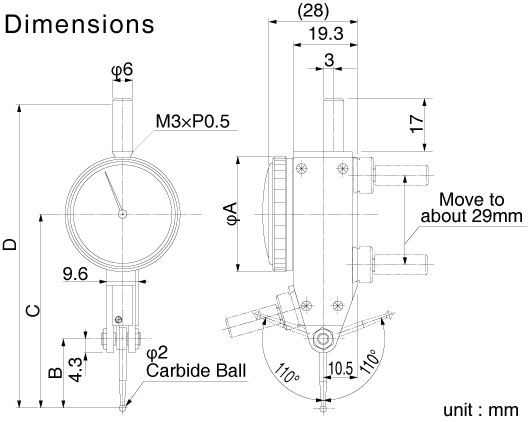

| Order No. | A | B | C | D |
| LT-352-5 | 35 | 21 | 59 | 95 |
| LT-353-5 | 35 | 40.6 | 78.6 | 114.6 |
| LT-355-10 | 38.4 | 18 | 56 | 92 |
| LT-358-15 | 38.4 | 15 | 53 | 89 |
