Auto-Clutch Test Indicator
• As miniature bearing (pivot ball bearing) is used for stylus revolution bearing. It is not affected by shaft looseness and indication is stable.
• Measuring direction is automatically changed for proper and opposite by auto-clutch mechanism without changing lever. It is
always read accurately in any case, as stylus rotates in clockwise direction..
• Stylus can be set at any desired position of angle of 220 circle.
• Stem with dovetail groove (Option) can be mounted to 2 points of front and back part.
• A carbide ball stylus is provided for less abrasion and stylus is made of stainless steel..
• Stylus and pointer are anti-magnetic and not affected by magnetism.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Dial Reading |
Measuring Force (N) |
Repeatability (μm) |
Adjacent Error(μm) |
Entire measuring range in foward direction Error(μm) |
Hysteresis (μm) |
Standard Stylus |
Weight (g) |
| LT-352 | 0.01 | 0.8 | 0-40-0 | 0.2 or less | 3 | 5 | 9 | 4 | ZS-709 | 75 |
| LT-353 | 0.01 | 0.8 | 0-40-0 | 0.2 or less | 3 | 5 | 10 | 5 | ZS-710 | 75 |
| LT-354 | 0.01 | 0.5 | 0-25-0 | 0.2 or less | 3 | 5 | 6 | 4 | ZS-799 | 75 |
| LT-355 | 0.002 | 0.28 | 0-140-0 | 0.25 or less | 1 | 2 | 4 | 3 | ZS-711 | 75 |
| LT-358 | 0.001 | 0.2 | 0-100-0 | 0.25 or less | 1 | 2 | 4 | 3 | ZS-712 | 75 |
Final inspection is done in the horizontal orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

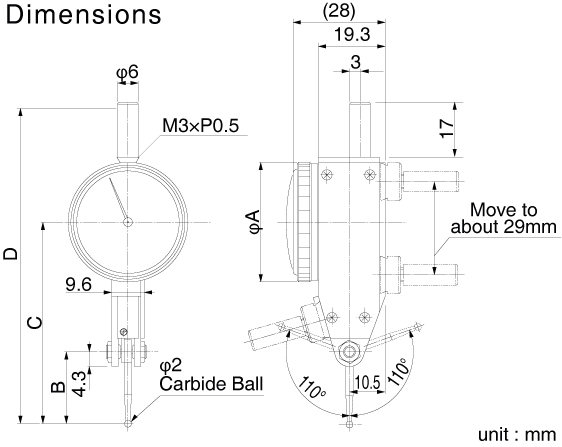

| Order No. | A | B | C | D |
| LT-352 | 35 | 21 | 59 | 95 |
| LT-353 | 35 | 40.6 | 78.6 | 114.6 |
| LT-354 | 35 | 25.4 | 63.4 | 99.4 |
| LT-355 | 38.4 | 18 | 56 | 92 |
| LT-358 | 38.4 | 15 | 53 | 89 |
