Product Features
Tapping Data
AXE-HT and the LA-O (conventional product)
Processing condition [M8 × 1.25]
AXE-HT |
HSS-P special coating |
|
LA-O |
HSS-E NI surface treatment |
|
Workpiece Material |
AC4A-T6 |
|
Bored Hole Size |
φ6.8 |
|
Tapping Length |
13mm blind hole |
|
Machinery Type |
Transfer machine |
|
Feed |
Lead screw feed |
|
Tapping Speed |
10m/min |
|
Tapping Fluid |
Water soluble cutting fluid, 30 to 1 diluted. |

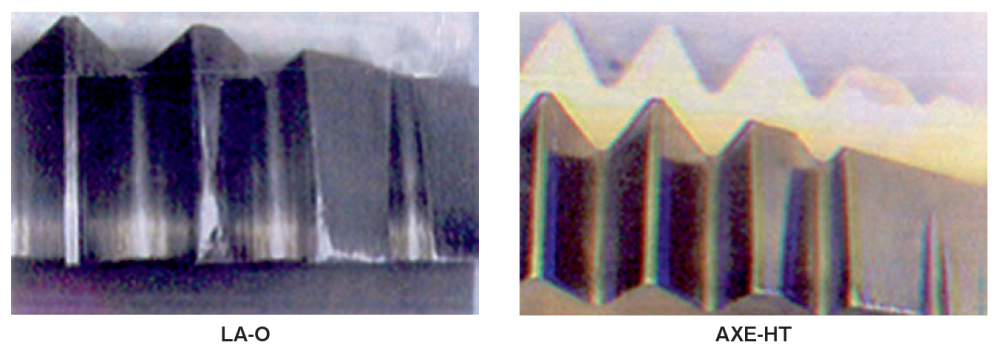

Flute of tap after processing 7,000 holes.

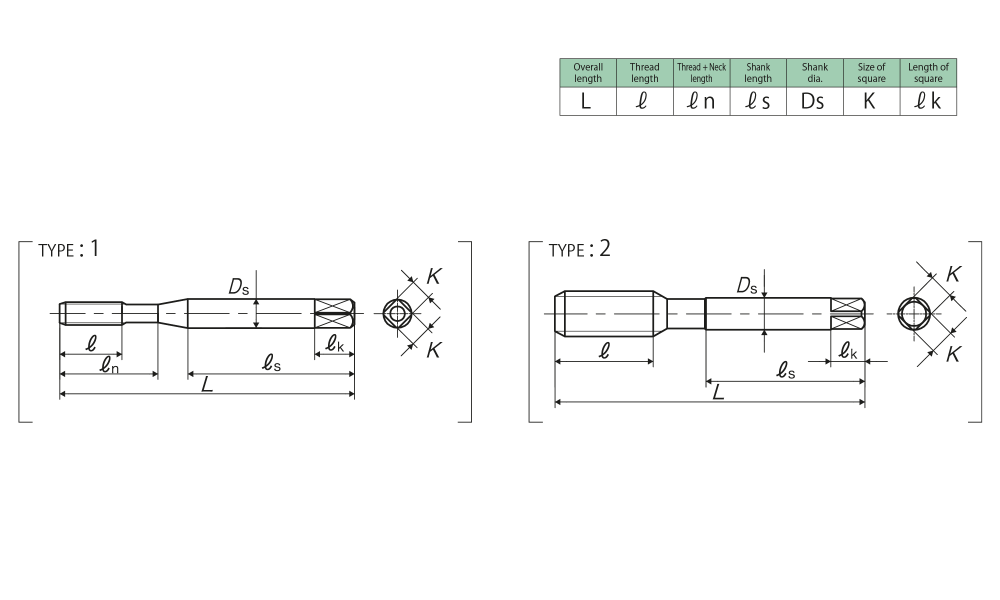

Specification
Tapping Speeds depending on Materials
Segment:1B
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
For Metric Threads |
||||||||||||
M6×1 |
P3 |
TAXEMR6.0M1 |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
M8×1.25 |
P3 |
TAXEMR8.0N1 |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
M10×1.5 |
P3 |
TAXEMR010O1 |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
M10×1.25 |
P3 |
TAXEMR010N1 |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
M10×1 |
P3 |
TAXEMR010M1 |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
M12×1.75 |
P3 |
TAXEMR012P1 |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
M12×1.5 |
P3 |
TAXEMR012O1 |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
M12×1.25 |
P3 |
TAXEMR012N1 |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
