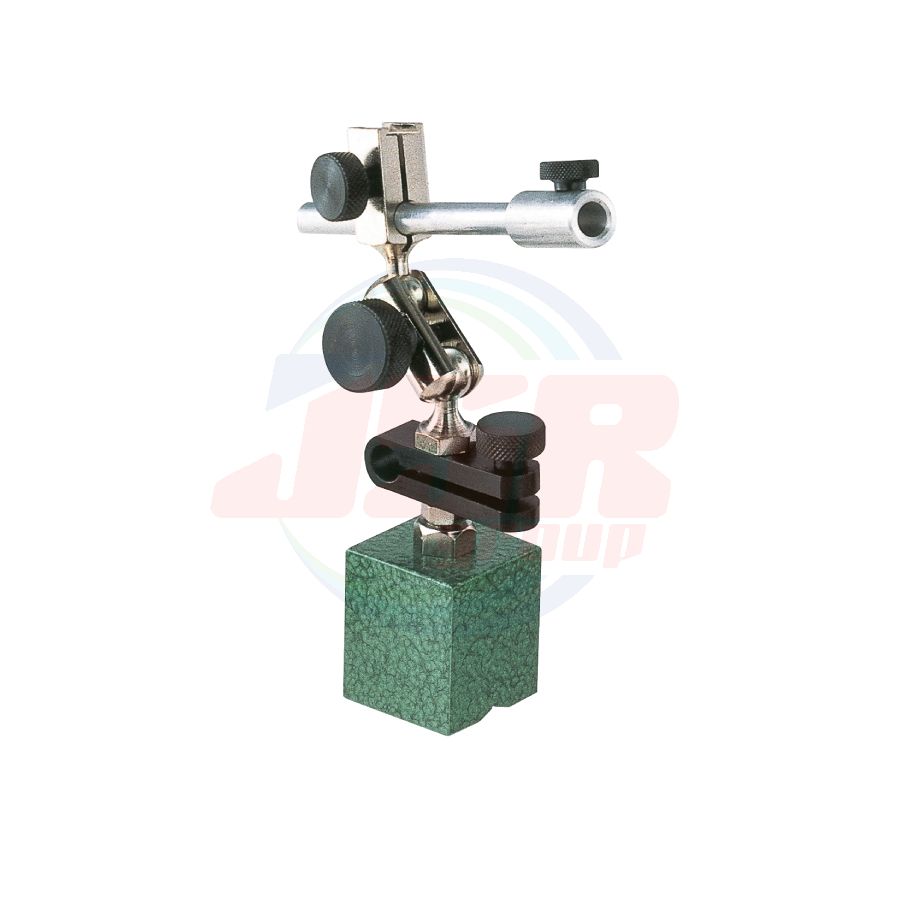

B-3 (012701) | MINI MAGNETIC BASE FINE ADJUSTMENT TYPE | SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
012701
USE
● Measurements that require a dial indicator to be held in fixed position
MATERIAL
● Alnico magnet
FEATURES
● Excellent holding force using high power alnico magnet
● 89mm long arm
● With fine adjustment（ 0.5mm adj. range）

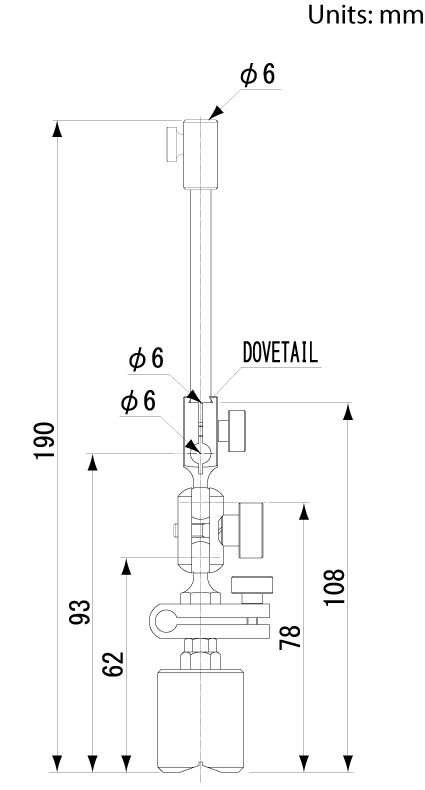

SPECIFICATIONS
● Magnetice adsorption： approx. 65N
● Stem holder： φ6mm
● With dovetail mount
● Main post screw： M5×P0.8
| Order No. | Model No. | Base Dimension （mm） |
Surface magnetic flux density （mT） |
Weight |
| 012701 | B-3 | 25×25×30 | Max. 50 | 230g |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012701 (B-3) |
