Back Plunger Type

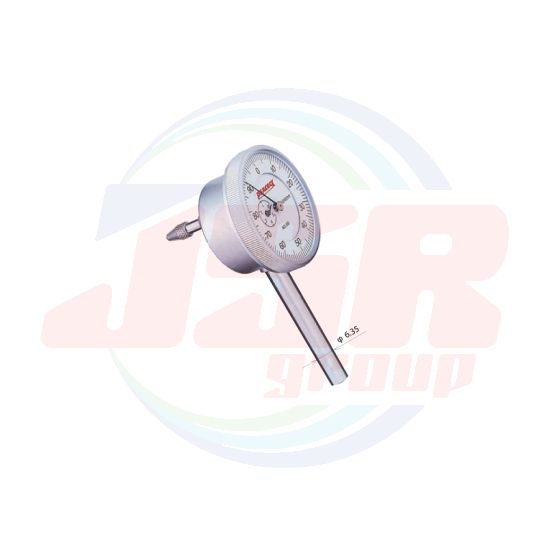

Back Plunger Type Dial Gauges - 0.01mm
● The back plunger dial gauge is characterized with easy handling since the spindle having the contact point moves in the direction perpendicular to the dial face and the gauge is more compact.
● The dial gauge of this type is convenient for use in achieving a parallelism of the table of the machine tool, with measuring jigs, in restricted areas and on locations where scale reading is difficult.
● Jeweled bearing is installed to our general Dial Gauges.
Specifications
(unit: μm)
| Order No. | Graduation (mm) |
Range (mm) | Reading | Indication error (MPE) | Hysteresis error |
Repeatability | Measuring force less than (N) |
|||
| 1/10 revolution | 1/2 revolution | One revolution | Whole measuring range |
|||||||
| 196A | 0.01 | 5 | 0 - 50 - 100 | 8 | 12 | 14 | 18 | 4 | 3 | 1.4 |
| 196A-6 | 0.01 | 5 | 0 - 50 - 100 | 8 | 12 | 14 | 18 | 4 | 3 | 1.4 |
| 196Z | 0.01 | 0.8 | 40 - 0 - 40 | 8 | - | - | 15 | 4 | 3 | 1.4 |
| 196B | 0.01 | 5 | 0 - 50 - 100 | 8 | 12 | 14 | 18 | 4 | 3 | 1.4 |
| 196B-T | 0.01 | 5 | 100 - 50 - 0 | 8 | 12 | 14 | 18 | 4 | 3 | 1.4 |
※ Dial dia. φ38mm (All Back Plunger type Dial Gauges)
| แบรนด์สินค้า | PEACOCK |
|---|
Back Plunger 0.01mm
mm
| Order No. | A | B | C | D | E | F | G |
| 196A | 44 | 38 | 9 | 4.5 | 6.35 | 28.1 | 57 |
| 196A-6 | 44 | 38 | 9 | 4.5 | 6 | 28.1 | 57 |
Back Plunger 0.01mm
mm
| Order No. | A | B | C | D | E | F | G | H | I |
| 196B | 58.5 | 38 | 12.5 | 4.5 | - | - | - | 5.5 | 16.5 |
| 196B-T | 58.5 | 38 | 12.5 | 4.5 | - | - | - | 5.5 | 16.5 |
| 196Z | 58.5 | 38 | 12.5 | 4.5 | - | - | - | 5.5 | 16.5 |
Dimensions (Holder for 196B)
