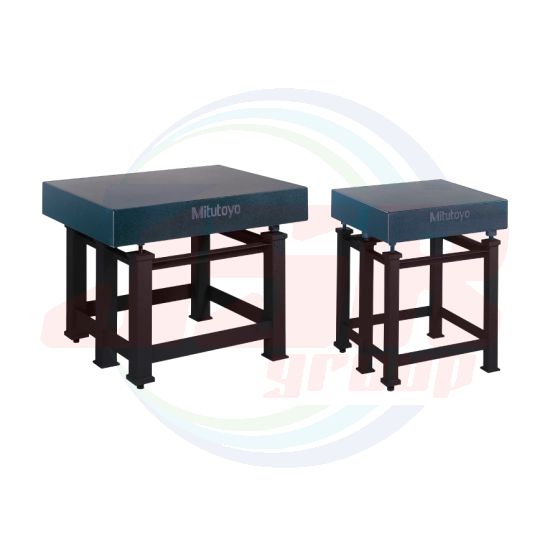

• The plates are made of natural granite that is uniform in structure and largely averse to deterioration. (Natural stones may have unique patterns on their surface.)
• Granite surface plate has many advantages over cast iron surface plates: Twice as hard as cast iron.
• Free from wringing effects, so there is no interruption of work.
• Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to other parts or instruments.
• Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner or heater. (Recommended environment: Temperature 20±1 °C, Humidity 58±2%)
Order No. | Grade | Size (mm) | Flatness (μm) |
Mass (kg) |
Optional stands for black granite surface plates | h (mm) |
||||

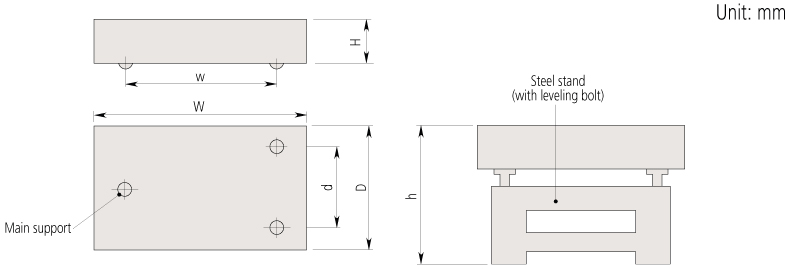

W×D×H | d | w | Standard type | with safety frame | with casters (with safety frame) |
|||||
517-401-4 | 00 | 300×300×100 | 240 | 240 | 2 | 27 | — | — | — | — |
517-301 | 0 | 3 | ||||||||
517-101 | 1 | 5 | ||||||||
517-411-4 | 00 | 450×300×100 | 240 | 390 | 2 | 40 | — | — | — | — |
517-311 | 0 | 3 | ||||||||
517-111 | 1 | 6 | ||||||||
517-414-4 | 00 | 600×450×100 | 370 | 500 | 2.5 | 80 | 517-203-2 | 517-203R | 517-203CR | 755 to 775 |
517-314 | 0 | 4 | ||||||||
517-114 | 1 | 8 | ||||||||
517-403-4 | 00 | 600×600×130 | 500 | 500 | 2.5 | 140 | 517-204-2 | 517-204R | 517-204CR | 755 to 775 |
517-303 | 0 | 5 | ||||||||
517-103 | 1 | 8 | ||||||||
517-405-4 | 00 | 750×500×130 | 420 | 630 | 3 | 146 | 517-205-2 | 517-205R | 517-204CR | 755 to 775 |
517-305 | 0 | 5 | ||||||||
517-105 | 1 | 9 | ||||||||
517-407-4 | 00 | 1000×750×150 | 630 | 700 | 3 | 337 | 517-206-2 | 517-206R | 517-206CR | 755 to 775 |
517-307 | 0 | 6 | ||||||||
517-107 | 1 | 12 | ||||||||
517-409-4 | 00 | 1000×1000×150 | 700 | 700 | 3.5 | 450 | 517-207-2 | 517-207R | 517-207CR | 735 to 775 |
517-309 | 0 | 7 | ||||||||
517-109 | 1 | 13 | ||||||||
517-413-4 | 00 | 1500×1000×200 | 700 | 1100 | 4 | 900 | 517-208-4 | 517-208R | 517-207CR | 735 to 775 |
517-313-4 | 0 | 8 | ||||||||
517-113-4 | 1 | 16 | ||||||||
517-410-4 | 00 | 2000×1000×250 | 700 | 1500 | 4.5 | 1500 | 517-209-4 | 517-209R | 517-209CR | 735 to 775 |
517-310-4 | 0 | 9.5 | ||||||||
517-110-4 | 1 | 19 | ||||||||
517-416-4 | 00 | 2000×1500×300 | 1100 | 1500 | 5 | 2700 | 517-210-4 | 517-210R | 517-210CR | 735 to 775 |
517-316-4 | 0 | 10 | ||||||||
517-116-4 | 1 | 20 | ||||||||
*1 | 00 | 2000×2000×350 | 1500 | 1500 | 5.5 | 4200 | — | — | — | 700 to 706*2 |
*1 | 0 | 11 | ||||||||
*1 | 1 | 22 | ||||||||
*1 | 00 | 3000×1500×400 | 1100 | 2000 | 6.5 | 5400 | — | — | — | 700 to 706*2 |
*1 | 0 | 12.5 | ||||||||
*1 | 1 | 25 | ||||||||
*1 | 00 | 3000×2000×500 | 1500 | 2000 | 7 | 9000 | — | — | — | 700 to 706*2 |
*1 | 0 | 13.5 | ||||||||
*1 | 1 | 27 |
*1 2000×2000 or larger is available by special order. Consult your local Mitutoyo sales office.
*2 Distance from the bottom of the large granite plate block mount to the granite plate top surface.
