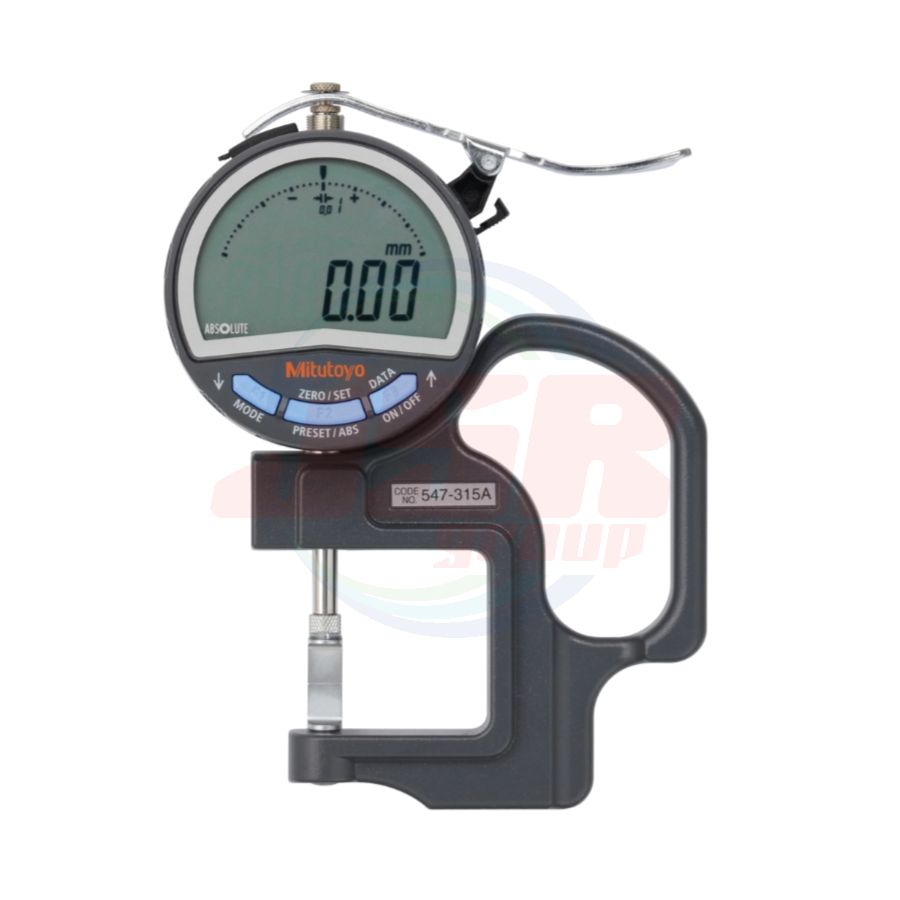

Blade thickness measurement

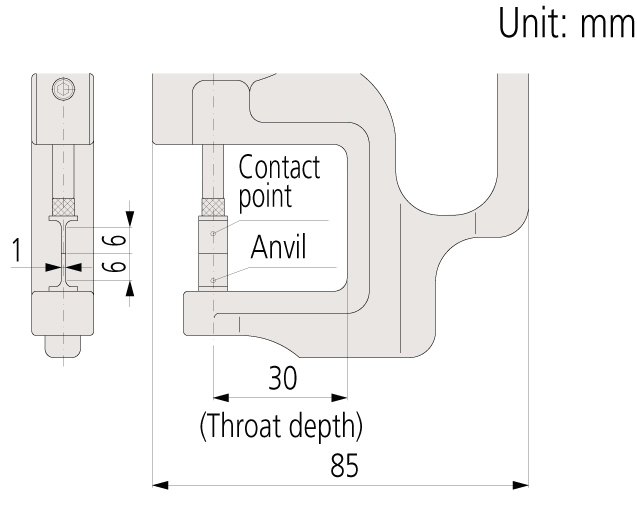

• Measuring faces of the contact point and anvil are blade-shaped (thickness: 1 mm). Suitable for measuring narrow grooves.
Metric
| Order No. | Resolution (mm) |
Range (mm) |
Measuring depth (mm) |
Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil (μm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |
| 547-315A | 0.01 | 0 - 10 | 30 | t=1 Blade | 10 | ±20 | 1.5 or less | 260 | Blade thickness |
Inch / Metric
| Order No. | Resolution |
Range |
Measuring depth | Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil |
Accuracy | Measuring force (N) |
Mass (g) |
Remarks |
| 547-316A | 0.0005 in/0.01 mm | 0 - 0.4 | 30 mm (1.18 in) | t=1 mm (0.04 in) Blade | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 260 | Blade thickness |
| 547-516A* | 0.0005 in/0.01 mm | 0 - 0.47* | 30 mm (1.18 in) | t=1 mm (0.04 in) Blade | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 240 | Blade thickness |
\* Using ID-SX Digimatic indicator.
