Blade Type Caliper SERIES 536 — Vernier Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,314.97
พร้อมส่ง
SKU
BLADE-TYPE-CALIPER
• The thin blade-type jaws fit into very small grooves and make previously difficult outside measurements far easier to obtain.
• The outside measuring faces are carbide tipped.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 536-134 | 0 - 150 | 0.05 | ±0.05 | ±0.07 |
| 536-135 | 0 - 200 | |||
| 536-136 | 0 - 300 | ±0.08 | ±0.10 | |
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|

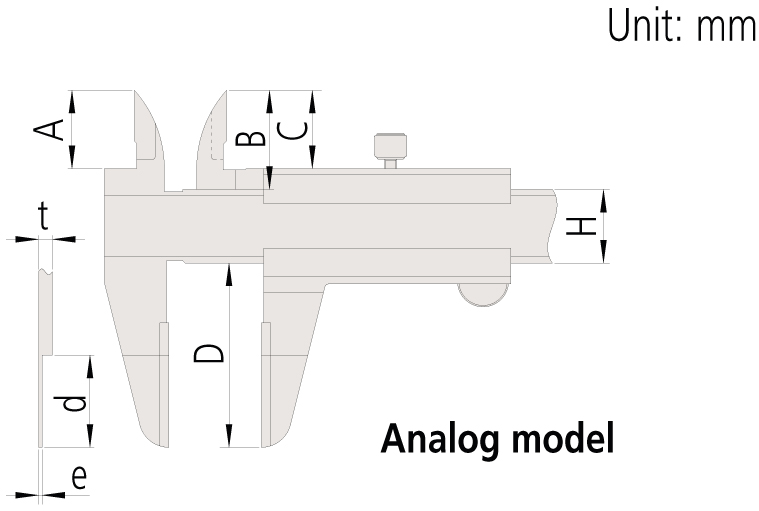

| Range (mm) | A | B | C | D | d | e | H | t |
| 0 - 150 | 17 | 21.5 | 17 | 40 | 20 | 0.75 | 16 | 3 |
| 0 - 200 | 20.5 | 25 | 20.5 | 50 | 25 | |||
| 0 - 300 | 22 | 27.5 | 22 | 64 | 30 | 1 | 20 | 3.8 |
