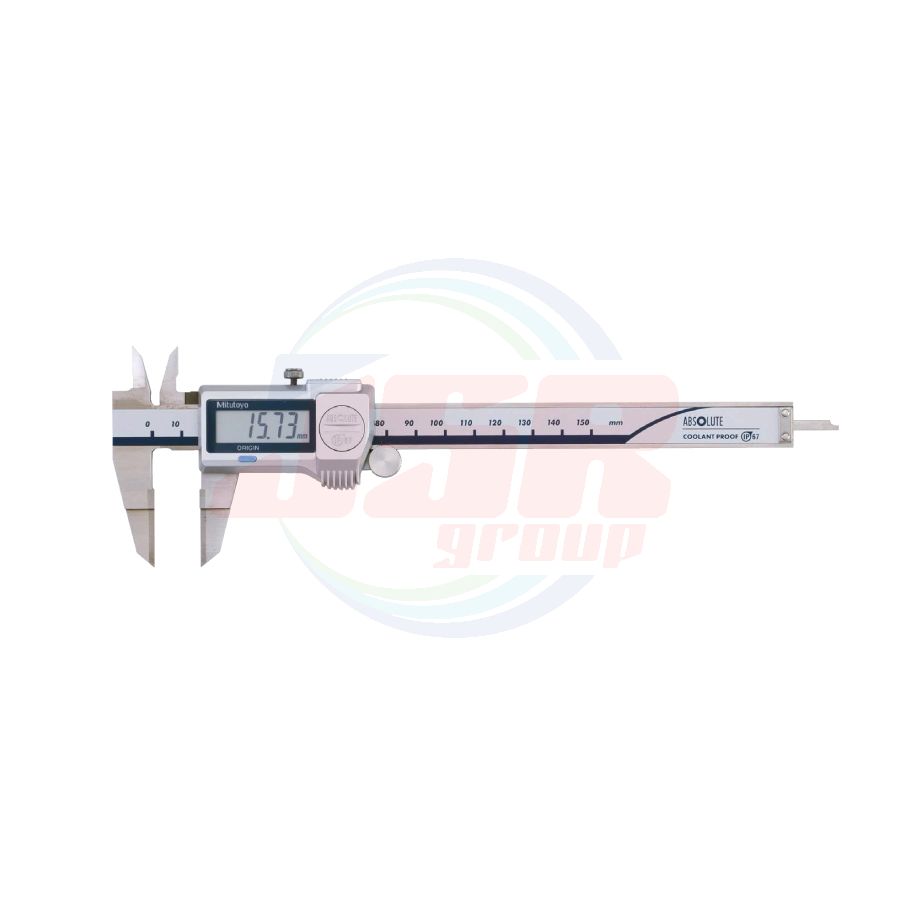

Blade Type Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 12,980.17
พร้อมส่ง
SKU
BLADE-TYPE-CALIPER-DIGIMATIC

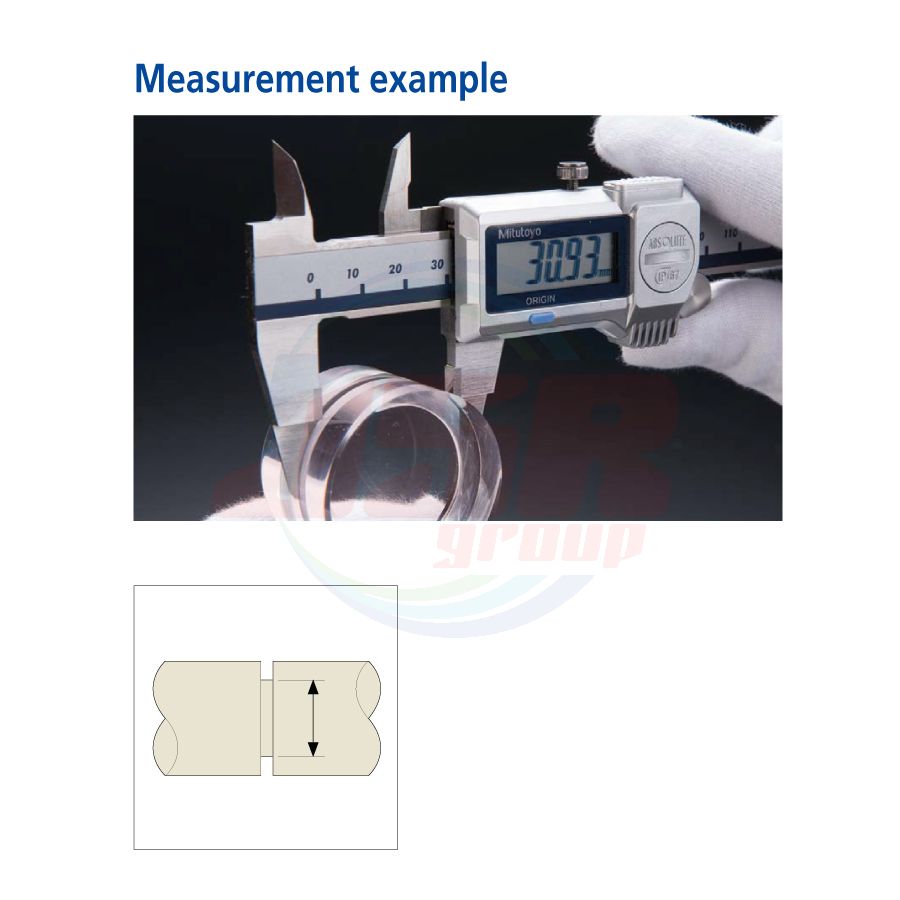

• The thin blade-type jaws fit into very small grooves and make previously difficult outside measurements far easier to obtain.
• The outside measuring faces are carbide tipped.
SPECIFICATIONS

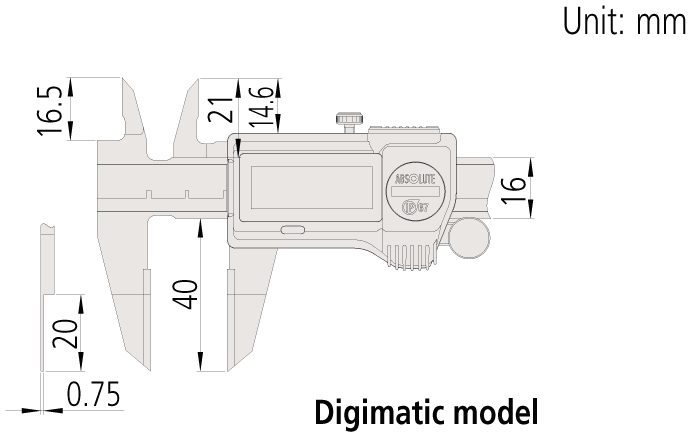

Metric ___ Digimatic model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*² | |
| E MPE | S MPE | |||
| 573-634-20 | 0 - 150 | 0.01 | ±0.02 | ±0.04 |
| 573-635-20*¹ | 0 - 150 | |||
Inch / Metric ___ Digimatic model
| Order No. | Range | Resolution | Maximum permissible error*² | |
| E MPE | S MPE | |||
| 573-734-20 | 0 - 6 in/0 - 150 mm | 0.0005 in/0.01 mm | ±0.001 in/±0.02 mm | ±0.002 in/±0.04 mm |
• Dust / Water protection level: IP67 (IEC 60529)*3
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Without thumb roller
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.
