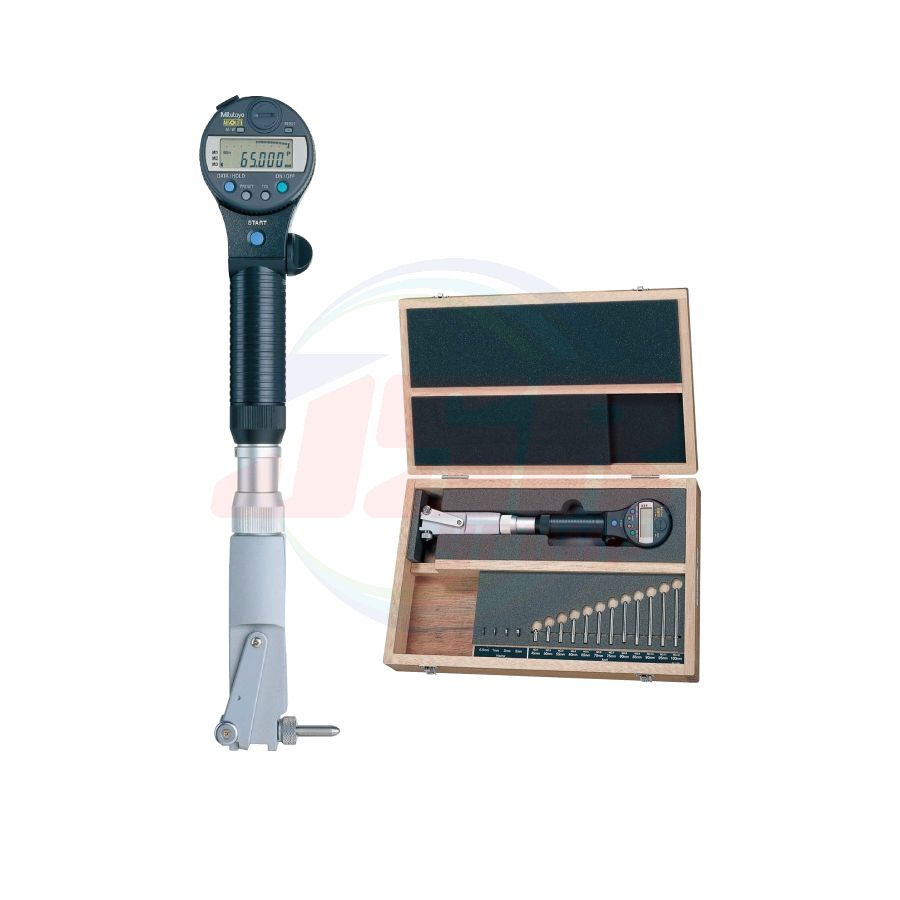

Bore Gages SERIES 511 — ABSOLUTE Digimatic Bore Gages | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 39,219.78
พร้อมส่ง
SKU
CG-D
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ



• An easy-to-use digital bore gage with preset and data output functions not available on analog models for use in various applications. Analog bar indicator allows for fast Go/No-go judgements.

• The minimum value holding function provides easy measurement of hole diameters.

• ABS (ABSOLUTE) type bore gages are not subject to overspeed error.

• The display and grip can be rotated up to 320° and the display can be inclined up to 90°, so that it is easily readable from any direction.

• Up to four extension rods (optional) can be used for measuring at the bottom of a hole 2 m deep.

Bore Gages SERIES 511 — ABSOLUTE Digimatic Bore Gages | MITUTOYO
Bore Gages SERIES 511 — ABSOLUTE Digimatic Bore Gages | MITUTOYO

SPECIFICATIONS

Metric

Order No. 511-501 511-502
Range 45 - 100 mm 100 - 160 mm
Stroke of contact point 1.2 mm
Resolution 0.001 mm
Wide range accuracy*1 0.003 mm or less
Adjacent error 0.002 mm or less
Repeatability 0.002 mm or less
Measuring forc 5 N or less
Guide force 10 N or less
Power source SR44 battery (2 pcs.), 938882 included as
standard (for operational checks)
Battery life*2 Approx. 2,000 hours under normal use.
Position detection method ABSOLUTE electrostatic linear encoder
Sampling frequency*3 50 times / s
Dust / Water protection level*4 IP53 (IEC 60529, JIS C 0920)
Display · 7 segments 6 digits decimal numeric with minus sign, Unit (mm)
· Tolerance judge indication
· Analog indication
Net weight 500 g 570 g

*1 A quantizing error is excluded.
*2 When the usage time per day is eight hours.
*3 If the contact point detecting speed is over 50 μm/s, the peak value may not be displayed correctly.
*4 The level indicated is valid only if the output connector cap is installed.

More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

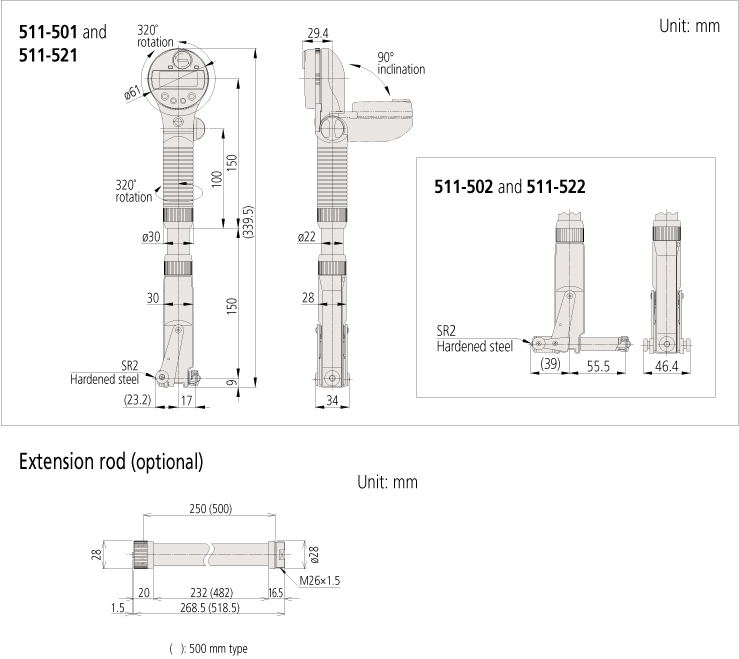

Dimension

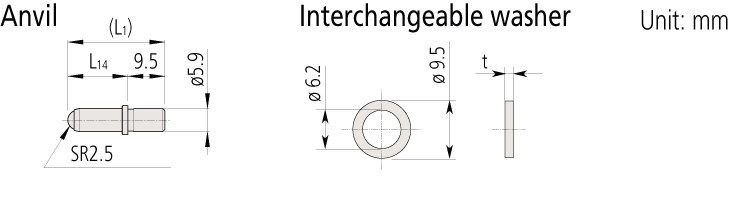

Bore gage Anvil Interchangeable washer
(Main body) Marked No. Code No. Indication of
measuring size		 L1 (mm) L14 (mm) Code No. t
511-501 1 21DZA232A 45 mm/1.8 in 15 5.5 205457
205458
205459
205460		 0.5 mm/0.02 in
1.0 mm/0.04 in
2.0 mm/0.08 in
3.0 mm/0.12 in
2 21DZA232B 50 mm/2.0 in 20 10.5
3 21DZA232C 55 mm/2.2 in 25 15.5
4 21DZA232D 60 mm/2.4 in 30 20.5
5 21DZA232E 65 mm/2.6 in 35 25.5
6 21DZA232F 70 mm/2.8 in 40 30.5
7 21DZA232G 75 mm/3.0 in 45 35.5
8 21DZA232H 80 mm/3.2 in 50 40.5
9 21DZA232J 85 mm/3.4 in 55 45.5
10 21DZA232L 90 mm/3.6 in 60 50.5
11 21DZA232M 95 mm/3.8 in 65 55.5
12 21DZA232N 100 mm/4.0 in 70 60.5
511-502 1 21DZA232A 100 mm/4.0 in 15 5.5 205457
205458
205459
205460		 0.5 mm/0.02 in
1.0 mm/0.04 in
2.0 mm/0.08 in
3.0 mm/0.12 in
2 21DZA232B 105 mm/4.2 in 20 10.5
3 21DZA232C 110 mm/4.4 in 25 15.5
4 21DZA232D 115 mm/4.6 in 30 20.5
5 21DZA232E 120 mm/4.8 in 35 25.5
6 21DZA232F 125 mm/5.0 in 40 30.5
7 21DZA232G 130 mm/5.2 in 45 35.5
8 21DZA232H 135 mm/5.4 in 50 40.5
9 21DZA232J 140 mm/5.6 in 55 45.5
10 21DZA232L 145 mm/5.8 in 60 50.5
11 21DZA232M 150 mm/6.0 in 65 55.5
12 21DZA232N 155 mm/6.2 in 70 60.5
13 21DZA232P 160 mm/6.4 in 75 65.5
