Bore Gages SERIES 511 — for Blind Holes | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 7,680.46
พร้อมส่ง
SKU
CGF-X

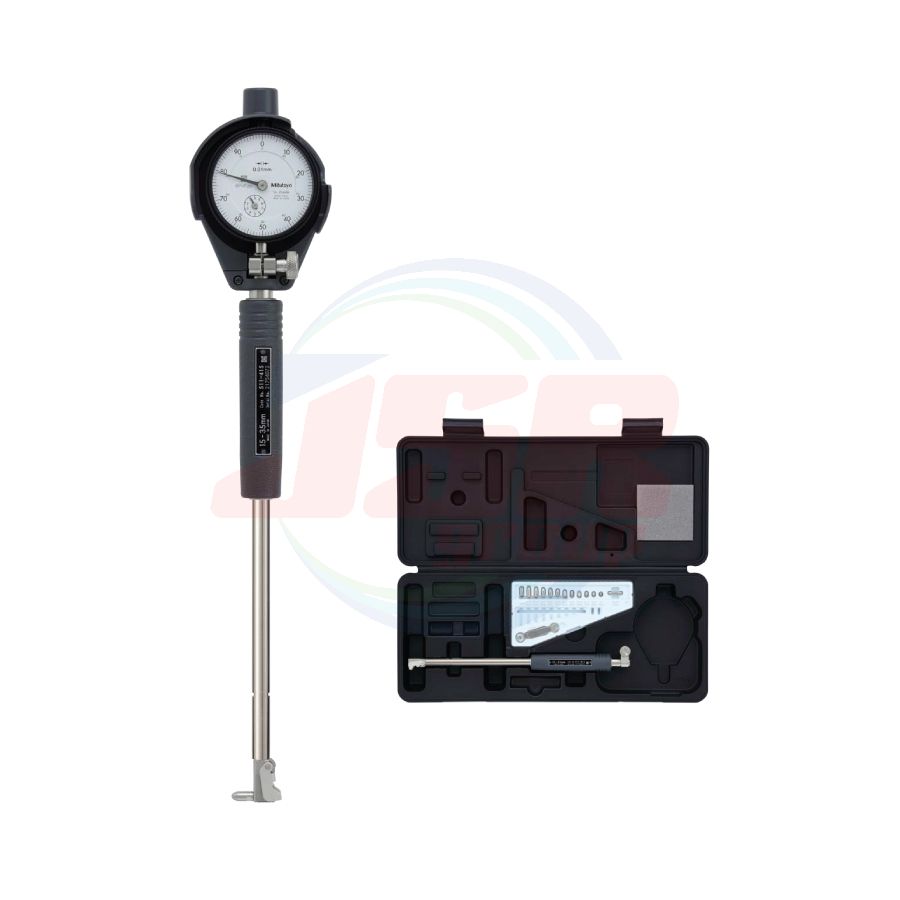

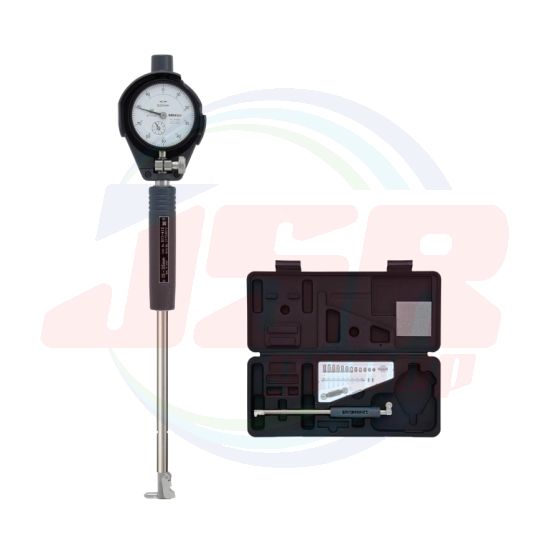

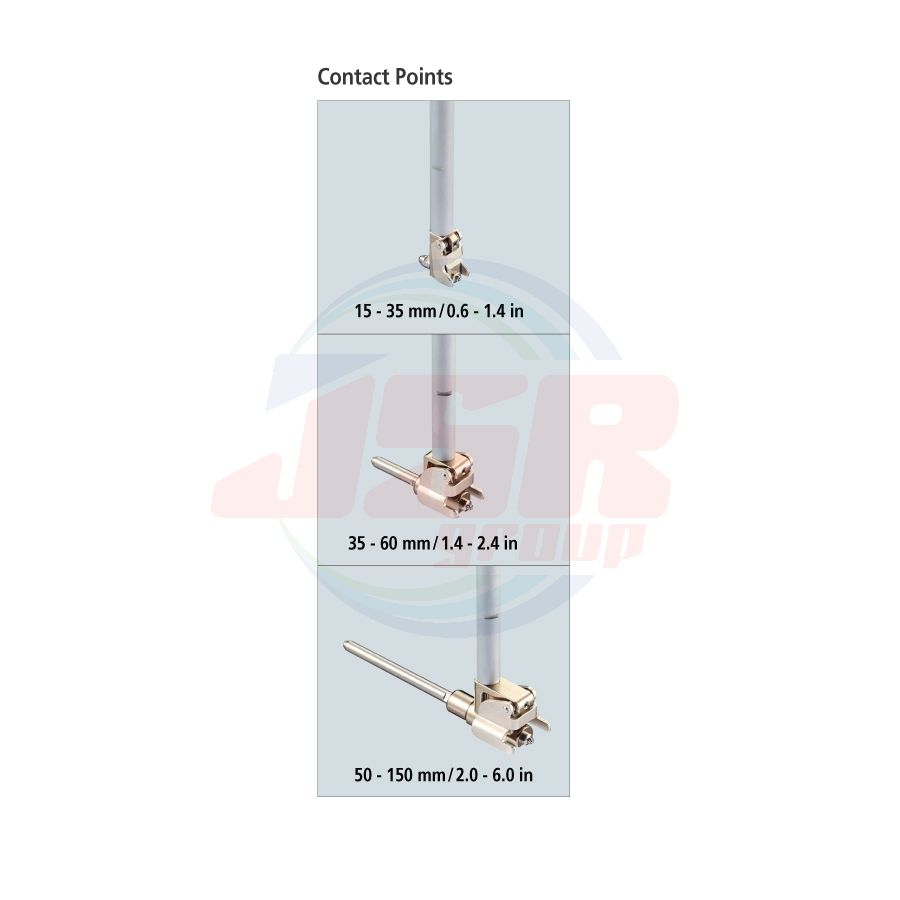

• This is a bore gage for measuring diameters near the bottom of a hole.
• Carbide-tipped contact point and anvil for durability and wear resistance.
• Optional extension rods can be attached for measuring deep holes.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Stroke of contact point (mm) |
Accuracy* (μm) |
Repeatability* (μm) |
Adjacent error* (μm) |
Measuring force (N) |
Guide force (N) |
Content of set | Probing depth (mm) |
||||
| Bore gage | Dial indicator |
Dial protection cover |
Anvil | Washer | |||||||||
| 511-415 | 15 - 35 | 1.2 | 4 | 1 | 1 | 4 or less | 6 or less | 511-415 | Not supplied | Not supplied | 11 pcs. | 1 pc. | 150 |
| 511-416 | 35 - 60 | 511-416 | 6 pcs. | 4 pcs. | |||||||||
| 511-417 | 50 - 150 | 5 or less | 10 or less | 511-417 | 11 pcs. | ||||||||
| 511-425-20 | 15 - 35 | 1.2 | 4 | 1 | 1 | 4 or less | 6 or less | 511-415 | 2046AB (Graduation: 0.01 mm) |
21DZA000 | 11 pcs. | 1 pc. | 150 |
| 511-426-20 | 35 - 60 | 511-416 | 6 pcs. | 4 pcs. | |||||||||
| 511-427-20 | 50 - 150 | 5 or less | 10 or less | 511-417 | 11 pcs. | ||||||||
| 511-435-20 | 15 - 35 | 1.2 | 4 | 1 | 1 | 4 or less | 6 or less | 511-415 | 2109AB-10 (Graduation: 0.001 mm) |
21DZA000 | 11 pcs. | 1 pc. | 150 |
| 511-436-20 | 35 - 60 | 511-416 | 6 pcs. | 4 pcs. | |||||||||
| 511-437-20 | 50 - 150 | 5 or less | 10 or less | 511-417 | 11 pcs. | ||||||||
* Accuracy of the bore gage alone.
Note 1: A 10 mm (0.4 in) sub-anvil is supplied with 511-415/425-20/435-20/418/428-20/438-20 and a 50 mm (2 in) sub-anvil
is supplied with 511-417/427-20/437-20/420/430-20/440-20.
Note 2: It is not permissible to use a sub-anvil other than as supplied as a standard accessory, or widen a measuring range by
using multiple sub-anvils. (The measurement accuracy in such cases is not guaranteed.)
| แบรนด์สินค้า | MITUTOYO |
|---|

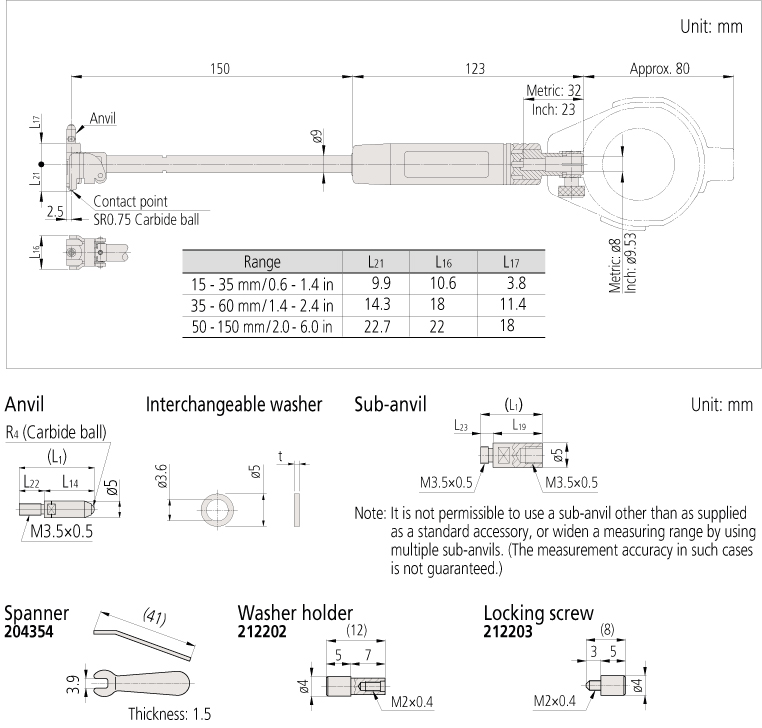

DIMENSIONS
STANDARD ACCESSORIES
| Bore gage (Main body) |
Anvil | Interchangeable washer |
Sub-Anvil | |||||||||
| Marked No. |
Code No. | Indication of measuring size | L1 | L22 | R4 | L14 | Code No. | t | Code No. | L23 | L9 | |
| 511-415 ( ) Using 10 mm/0.4 in Sub-Anvil |
1 | 21DZA376A | 15 mm (25 mm)/0.59 in (0.98 in) | 4.5 | 2.5 | SR1 | 2 | 212127 | 0.5 mm/0.02 in | 21DAA563 | 2.5 | 10mm/ 0.4 in |
| 2 | 21DZA376B | 16 mm (26 mm)/0.63 in (1.02 in) | 5.5 | 3 | ||||||||
| 3 | 21DZA376C | 17 mm (27 mm)/0.67 in (1.06 in) | 6.5 | 4 | ||||||||
| 4 | 21DZA376D | 18 mm (28 mm)/0.71 in (1.10 in) | 7.5 | 5 | ||||||||
| 5 | 21DZA376E | 19 mm (29 mm)/0.75 in (1.14 in) | 8.5 | 6 | ||||||||
| 6 | 21DZA376F | 20 mm (30 mm)/0.79 in (1.18 in) | 9.5 | SR1.5 | 7 | |||||||
| 7 | 21DZA376G | 21 mm (31 mm)/0.83 in (1.22 in) | 10.5 | 8 | ||||||||
| 8 | 21DZA376H | 22 mm (32 mm)/0.87 in (1.26 in) | 11.5 | 9 | ||||||||
| 9 | 21DZA376J | 23 mm (33 mm)/0.91 in (1.30 in) | 12.5 | 10 | ||||||||
| 10 | 21DZA376L | 24 mm (34 mm)/0.94 in (1.34 in) | 13.5 | 11 | ||||||||
| 11 | 21DZA376M | 25 mm (35 mm)/0.98 in (1.38 in) | 14.5 | 12 | ||||||||
| 511-416 | 1 | 21DZA404A | 35 mm/1.38 in | 17.5 | 7.5 | SR1.5 | 10 | 212127 212128 212129 212130 |
0.5 mm/0.02 in 1.0 mm/0.04 in 2.0 mm/0.08 in 3.0 mm/0.12 in |
- | - | - |
| 2 | 21DZA404B | 40 mm/1.57 in | 22.5 | 15 | ||||||||
| 3 | 21DZA404C | 45 mm/1.77 in | 27.5 | 20 | ||||||||
| 4 | 21DZA404D | 50 mm/1.97 in | 32.5 | 25 | ||||||||
| 5 | 21DZA404E | 55 mm/2.17 in | 37.5 | 30 | ||||||||
| 6 | 21DZA404F | 60 mm/2.36 in | 42.5 | 35 | ||||||||
| 511-417 ( ) Using 50 mm/2 in Sub-Anvil |
1 | 21DZA404A | 50 mm (100 mm)/1.97 in (3.94 in) | 17.5 | 7.5 | SR1.5 | 10 | 212127 212128 212129 212130 |
0.5 mm/0.02 in 1.0 mm/0.04 in 2.0 mm/0.08 in 3.0 mm/0.12 in |
21DAA596 | 7.5 | 50 mm/ 2 in |
| 2 | 21DZA404B | 55 mm (105 mm)/2.17 in (4.13 in) | 22.5 | 15 | ||||||||
| 3 | 21DZA404C | 60 mm (110 mm)/2.36 in (4.33 in) | 27.5 | 20 | ||||||||
| 4 | 21DZA404D | 65 mm (115 mm)/2.56 in (4.53 in) | 32.5 | 25 | ||||||||
| 5 | 21DZA404E | 70 mm (120 mm)/2.76 in (4.72 in) | 37.5 | 30 | ||||||||
| 6 | 21DZA404F | 75 mm (125 mm)/2.95 in (4.92 in) | 42.5 | 35 | ||||||||
| 7 | 21DZA404G | 80 mm (130 mm)/3.15 in (5.12 in) | 47.5 | 40 | ||||||||
| 8 | 21DZA404H | 85 mm (135 mm)/3.35 in (5.31 in) | 52.5 | 45 | ||||||||
| 9 | 21DZA404J | 90 mm (140 mm)/3.54 in (5.51 in) | 57.5 | 50 | ||||||||
| 10 | 21DZA404L | 95 mm (145 mm)/3.74 in (5.71 in) | 62.5 | 55 | ||||||||
| 11 | 21DZA404M | 100 mm (150 mm)/3.94 in (5.91 in) | 67.5 | 60 | ||||||||
