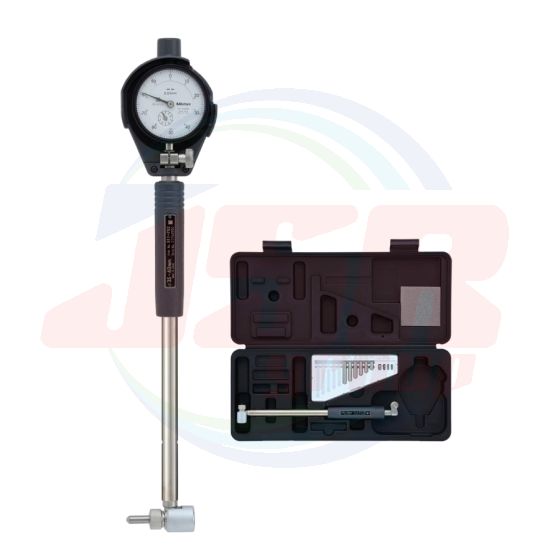

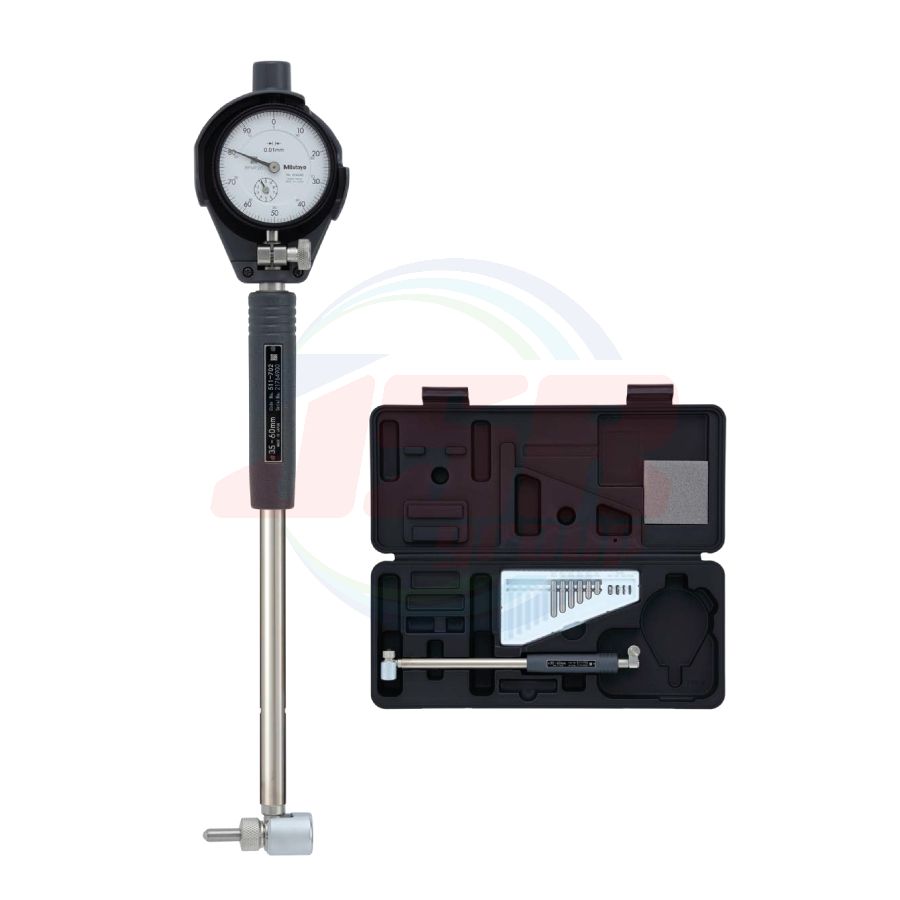

• This is a bore gage for measuring 18 to 400 mm inside diameter. It is suitable for highly accurate measurements.

• Carbide-tipped contact point and anvil for durability and wear resistance.

• Optional extension rods can be attached for measuring deep holes.

Bore Gages SERIES 511 | MITUTOYO
Bore Gages SERIES 511 | MITUTOYO

SPECIFICATIONS

Metric

Order No. Range (mm) Stroke of contact
point (mm)		 Accuracy*
(μm)		 Repeatability*
(μm)		 Adjacent error*
(μm)		 Measuring
force (N)		 Guide force
(N)
511-701 18 - 35 1.2 2 0.5 1 4 or less 6 or less
511-702 35 - 60
511-703 50 - 150 1.6 5 or less 10 or less
511-704 100 - 160
511-705 160 - 250 6 or less 15 or less
511-706 250 - 400
511-721-20 18 - 35 1.2 2 0.5 1 4 or less 6 or less
511-722-20 35 - 60
511-723-20 50 - 150 1.6 5 or less 10 or less
511-724-20 100 - 160
511-725-20 160 - 250 6 or less 15 or less
511-726-20 250 - 400
511-711-20 18 - 35 1.2 2 0.5 1 4 or less 6 or less
511-712-20 35 - 60
511-713-20 50 - 150 1.6 5 or less 10 or less
511-714-20 100 - 160
511-715-20 160 - 250 6 or less 15 or less
511-716-20 250 - 400
511-921-20 18 -150 See SPECIFICATIONS of 511-701/702/703
511-922-20
511-925-10



Order No. Content of set Probing
depth (mm)
Bore gage Dial indicator Dial protection cover Anvil Interchangeable Washer Sub-Anvil Spanner
511-701 511-701 Not supplied Not supplied 9 pcs. 2 pcs. Not supplied 1 pc. 100
511-702 511-702 6 pcs. 4 pcs. Not supplied 150
511-703 511-703 11 pcs. 1 pc.
511-704 511-704 13 pcs. Not supplied
511-705 511-705 6 pcs. 7 pcs. 250
511-706 511-706 5 pcs. 1 pc.
511-721-20 511-701 2109AB-10
(Graduation:
0.001 mm)		 21DZA000 9 pcs. 2 pcs. Not supplied 1 pc. 100
511-722-20 511-702 6 pcs. 4 pcs. Not supplied 150
511-723-20 511-703 11 pcs. 1 pc.
511-724-20 511-704 13 pcs. Not supplied
511-725-20 511-705 6 pcs. 7 pcs. 250
511-726-20 511-706 5 pcs. 1 pc.
511-711-20 511-701 2046AB
(Graduation:
0.01 mm)		 21DZA000 9 pcs. 2 pcs. Not supplied 1 pc. 100
511-712-20 511-702 6 pcs. 4 pcs. Not supplied 150
511-713-20 511-703 11 pcs. 1 pc.
511-714-20 511-704 13 pcs. Not supplied
511-715-20 511-705 6 pcs. 7 pcs. 250
511-716-20 511-706 5 pcs. 1 pc.
511-921-20 Set of
511-701 /
702 / 703		 2046AB 21DZA000 See SPECIFICATIONS of 511-701/702/703
511-922-20 2109AB-10
511-925-10 543-310B

* Accuracy of the bore gage alone.
Note 1: A 50 mm sub-anvil is supplied with 511-703, and a 75 mm sub-anvil is supplied with 511-706.
Note 2: It is not permissible to use a sub-anvil other than as supplied as a standard accessory, or widen a measuring range by using multiple sub-anvils. (The measurement accuracy in such cases is not guaranteed.)

More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

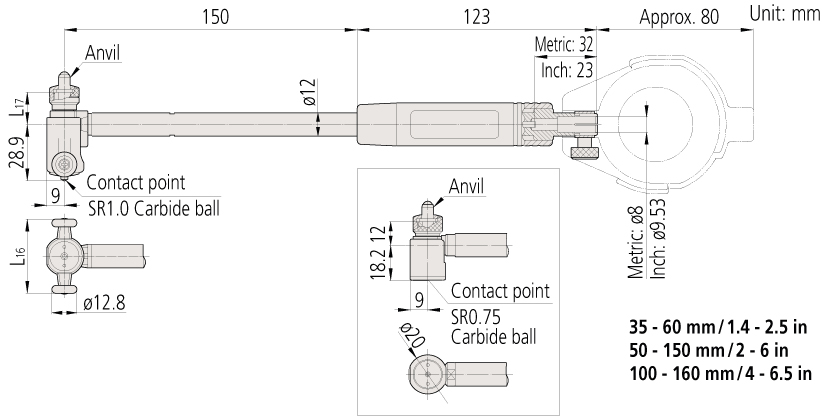

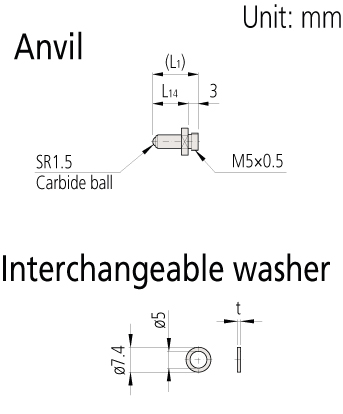

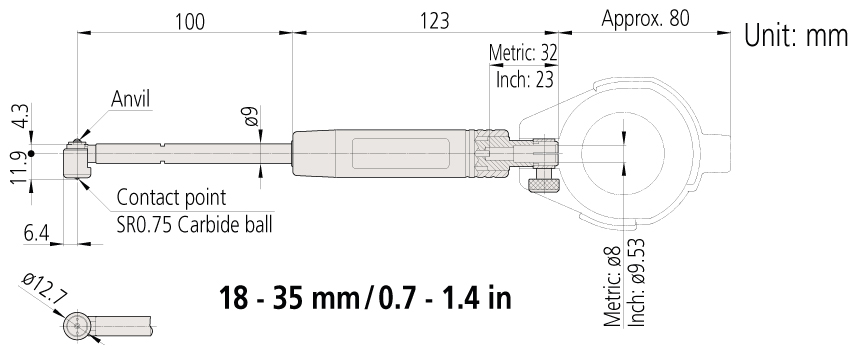

Dimension



STANDARD ACCESSORIES

Bore gage
(Main body)		 Anvil
Marked No. Code No. Indication of
measuring size		 L1 L14
511-701
511-731		 1 21DZA213A 18 mm/0.71 in 5.5 2.5
2 21DZA213B 20 mm/0.79 in 7.5 4.5
3 21DZA213C 22 mm/0.87 in 9.5 6.5
4 21DZA213D 24 mm/0.94 in 11.5 8.5
5 21DZA213E 26 mm/1.02 in 13.5 10.5
6 21DZA213F 28 mm/1.10 in 15.5 12.5
7 21DZA213G 30 mm/ 1.18 in 17.5 14.5
8 21DZA213H 32 mm/1.26 in 19.5 16.5
9 21DZA213J 34 mm/1.34 in 21.5 18.5

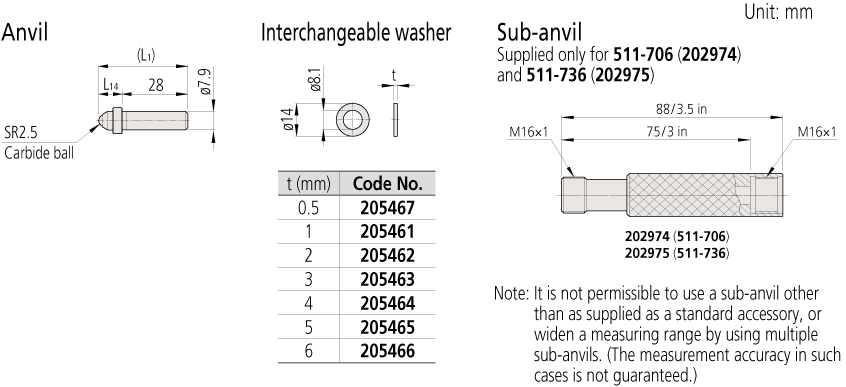

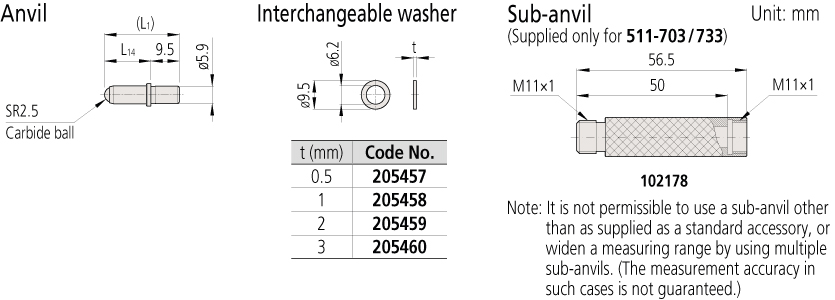

t (mm) Code No.
0.5 205623
1 205624





Range L16 L17
50 - 150 mm/2 - 6 in 38 16.5
100 - 160 mm/4 - 6.5 in 50 66.5

STANDARD ACCESSORIES

Bore gage
(Main body)		 Anvil
Marked No. Code No. Indication of
measuring size		 L1 L14
511-702
511-732		 1 21DZA232A 35 mm/1.38 in 15 5.5
2 21DZA232B 40 mm/1.57 in 20 10.5
3 21DZA232C 45 mm/1.77 in 25 15.5
4 21DZA232D 50 mm/1.97 in 30 20.5
5 21DZA232E 55 mm/2.17 in 35 25.5
6 21DZA232F 60mm /2.36in 40 30.5
511-703
511-733
( ) Using
50 mm/2 in
Sub-Anvil
 1 21DZA232A 50 mm (100 mm) / 1.97 in (3.94 in) 15 5.5
2 21DZA232B 55 mm (105 mm) / 2.17 in (4.13 in) 20 10.5
3 21DZA232C 60 mm (110 mm) / 2.36 in (4.33 in) 25 15.5
4 21DZA232D 65 mm (115 mm) / 2.55 in (4.53 in) 30 20.5
5 21DZA232E 70 mm (120 mm) / 2.74 in (4.72 in) 35 25.5
6 21DZA232F 75 mm (125 mm) / 2.93 in (4.92 in) 40 30.5
7 21DZA232G 80 mm (130 mm) / 3.12 in (5.12 in) 45 35.5
8 21DZA232H 85 mm (135 mm) /3.31 in (5.31 in) 50 40.5
9 21DZA232J 90 mm (140 mm) / 3.50 in (5.51 in) 55 45.5
10 21DZA232L 95 mm (145 mm) / 3.69 in (5.71 in) 60 50.5
11 21DZA232M 100 mm (150 mm) / 3.88 in (5.91 in) 65 55.5
511-704
511-734
 1 21DZA232A 100 mm/3.94 in 15 5.5
2 21DZA232B 105 mm/4.13 in 20 10.5
3 21DZA232C 110 mm/4.33 in 25 15.5
4 21DZA232D 115 mm/4.53 in 30 20.5
5 21DZA232E 120 mm/4.72 in 35 25.5
6 21DZA232F 125 mm/4.92 in 40 30.5
7 21DZA232G 130 mm/5.12 in 45 35.5
8 21DZA232H 135 mm/5.31 in 50 40.5
9 21DZA232J 140 mm/5.51 in 55 45.5
10 21DZA232L 145 mm/5.71 in 60 50.5
11 21DZA232M 150 mm/5.91 in 65 55.5
12 21DZA232N 155 mm/6.10 in 70 60.5
13 21DZA232P 160 mm/6.30 in 75 65.5

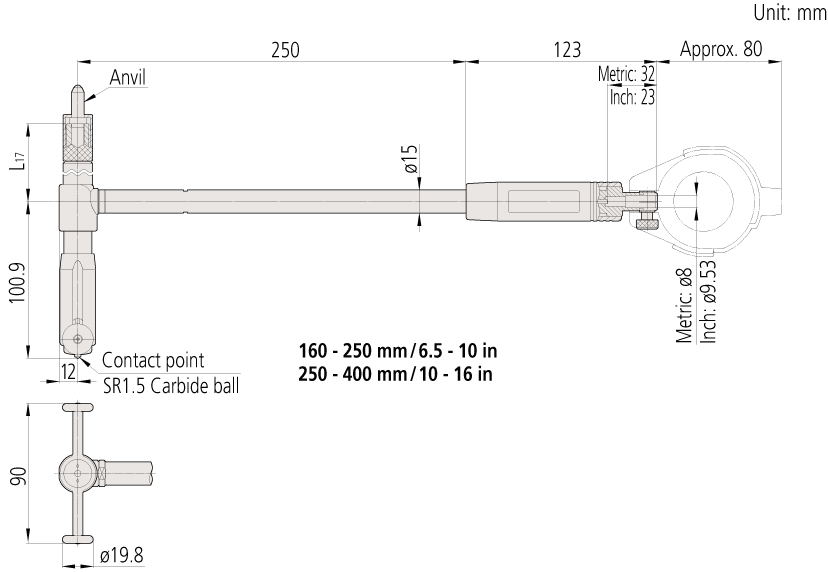

Range L17
160 - 250 mm 50
250 - 400 mm 140
6.5 - 10.0 in 55.1
10.0 - 16.0 in 144



STANDARD ACCESSORIES

Bore gage
(Main body)		 Anvil
Marked No. Code No. Indication of
measuring size		 L1 L14
511-705
511-735		 1 21DZA241A 160 mm/6.50 in 38 10
2 21DZA241B 175 mm/7.09 in 53 25
3 21DZA241C 190 mm/7.68 in 68 40
4 21DZA241D 205 mm/8.27 in 83 55
5 21DZA241E 220 mm/8.86 in 98 70
6 21DZA241F 235 mm/9.45 in 113 85
511-706
511-736
( ) Using
75 mm/3 in
Sub-Anvil
 1 21DZA241A 250 mm (325 mm) / 10.00 in (13.00 in) 38 10
2 21DZA241B 265 mm (340 mm) / 10.59 in (13.59 in) 53 25
3 21DZA241C 280 mm (355 mm) / 11.18 in (14.18 in) 68 40
4 21DZA241D 295 mm (370 mm) / 11.77 in (14.77 in) 83 55
5 21DZA241E 310 mm (385 mm) / 12.36 in (15.36 in) 98 70
