Bore Gages SERIES 511 — with Micrometer Head | MITUTOYO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 6,343.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
CGM
QTY:
0

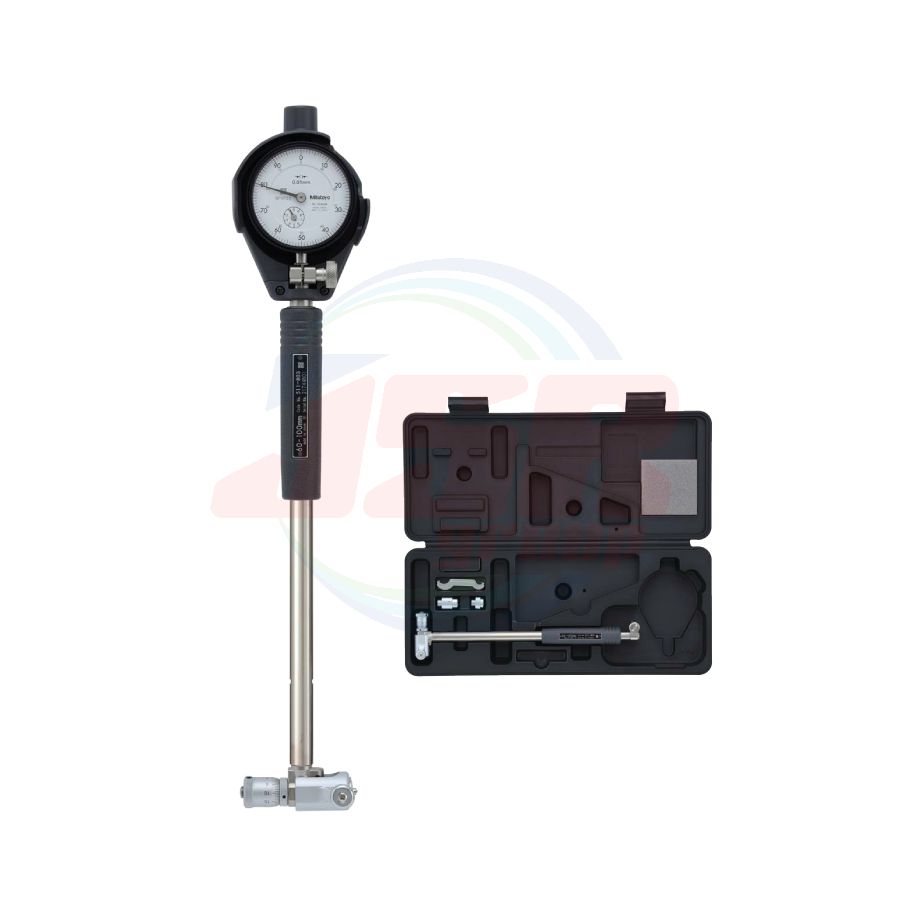

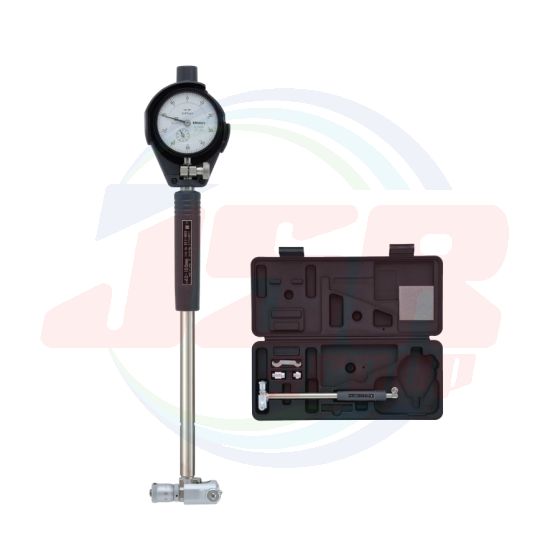

• Micrometer head is attached to the anvil for convenient and accurate dimensional measurements.
• Carbide-tipped contact point for durability and wear resistance.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Stroke of contact point (mm) |
Accuracy* (μm) |
Repeatability* (μm) |
Adjacent error* (μm) |
Measuring force (N) |
Guide force (N) |
| 511-803 | 60 - 100 | 1.6 | 2 | 0.5 | 1 | 5 or less | 10 or less |
| 511-804 | 100 - 160 | ||||||
| 511-805 | 150 - 250 | 6 or less | 15 or less | ||||
| 511-806 | 250 - 400 | ||||||
| 511-807 | 400 - 600 | 20 or less | |||||
| 511-808 | 600 - 800 | ||||||
| 511-823-20 | 60 - 100 | 1.6 | 2 | 0.5 | 1 | 5 or less | 10 or less |
| 511-824-20 | 100 - 160 | ||||||
| 511-825-20 | 150 - 250 | 6 or less | 15 or less | ||||
| 511-826-20 | 250 - 400 | ||||||
| 511-827-20 | 400 - 600 | 20 or less | |||||
| 511-828-20 | 600 - 800 | ||||||
| 511-813-20 | 60 - 100 | 1.6 | 2 | 0.5 | 1 | 5 or less | 10 or less |
| 511-814-20 | 100 - 160 | ||||||
| 511-815-20 | 150 - 250 | 6 or less | 15 or less | ||||
| 511-816-20 | 250 - 400 | ||||||
| 511-817-20 | 400 - 600 | 20 or less | |||||
| 511-818-20 | 600 - 800 |
| Order No. | Content of set | Probing depth (mm) |
|||||
| Bore gage | Dial indicator | Dial protection cover | Micrometer head | Sub-Anvil | Spanner | ||
| 511-803 | 511-803 | Not supplied | Not supplied | 1 pc. | 2 pcs. | 3 pcs. | 150 |
| 511-804 | 511-804 | 3 pcs. | 2 pcs. | ||||
| 511-805 | 511-805 | 4 pcs. | 250 | ||||
| 511-806 | 511-806 | 3 pcs. | |||||
| 511-807 | 511-807 | 2 pcs. | |||||
| 511-808 | 511-808 | 2 pcs. | |||||
| 511-823-20 | 511-803 | 2109AB-10 (Graduation: 0.001 mm) |
21DZA000 | 1 pc. | 2 pcs. | 3 pcs. | 150 |
| 511-824-20 | 511-804 | 3 pcs. | 2 pcs. | ||||
| 511-825-20 | 511-805 | 4 pcs. | 250 | ||||
| 511-826-20 | 511-806 | 3 pcs. | |||||
| 511-827-20 | 511-807 | 2 pcs. | |||||
| 511-828-20 | 511-808 | 2 pcs. | |||||
| 511-813-20 | 511-803 | 2046AB (Graduation: 0.01 mm) |
21DZA000 | 1 pc. | 2 pcs. | 3 pcs. | 150 |
| 511-814-20 | 511-804 | 3 pcs. | 2 pcs. | ||||
| 511-815-20 | 511-805 | 4 pcs. | 250 | ||||
| 511-816-20 | 511-806 | 3 pcs. | |||||
| 511-817-20 | 511-807 | 2 pcs. | |||||
| 511-818-20 | 511-808 | 2 pcs | |||||
* Accuracy of the bore gage alone.
Note 1: Storage boxes for 511-807/808 models are made of wood. The boxes of other models are made of plastic.
Note 2: It is not permissible to expand measuring range using sub-anvils other than as supplied as standard accessories. (The measurement accuracy in such cases is not guaranteed.)
| แบรนด์สินค้า | MITUTOYO |
|---|
DIMENSIONS
| Range | L15 | R1 | L18 | R2 | L10 | L16 | øD1 | øD2 | L17 |
| 60 - 100 mm | 150 | SR8 | 28.9 | SR1.0 | 9 | 38 | ø12.8 | ø12 | 7 |
| 100 - 160 mm | SR10 | 50 | 16.5 | ||||||
| 150 - 250 mm | 250 | 70.3 | SR1.5 | 15 | 78 | ø19.8 | ø15 | 25.1 | |
| 250 - 400 mm | 100.9 | 12 | 90 | 81 | |||||
| 400 - 600 mm | 200.9 | 16 | 120 | 85 | |||||
| 600 - 800 mm | 300.9 | 185 |
STANDARD ACCESSORIES
| Bore gage (Main body) |
Micrometer head | Sub-Anvil | Spanner | |||||
| Code No. | Stroke (mm) | Screw size | Marked No. (mm) |
Code No. | L1 (mm) | L19 (mm) | Code No. | |
| 511-803 | 21DZA267 | 10 | M11×1 | 10 | 208892 | 15 | 10 | 301336 (2 pcs.) 202863 (1 pc.) |
| 20 | 208894 | 25 | 20 | |||||
| 511-804 | 21DZA268 | 13 | M11×1 | 10 | 208892 | 15 | 10 | 301336 (2 pcs.) |
| 20 | 208894 (2 pcs.) |
25 | 20 | |||||
| 511-805 | 21DZA268 | 13 | M11×1 | 10 | 208892 | 15 | 10 | 301336 (2 pcs.) |
| 20 | 208894 (2 pcs.) |
25 | 20 | |||||
| 50 | 21DAA492 | 55 | 50 | |||||
| 511-806 | 953118 | 25 | M16×1 | 25 | 208926 | 35 | 25 | 200154 (2 pcs.) |
| 50 | 208928 (2 pcs.) |
60 | 50 | |||||
| 511-807 | 953120 | 50 | M16×1 | 50 | 208928 | 60 | 50 | 200154 (2 pcs.) |
| 100 | 208932 | 110 | 100 | |||||
| 511-808 | 953120 | 50 | M16×1 | 50 | 208928 | 60 | 50 | 200154 (2 pcs.) |
| 100 | 208932 | 110 | 100 | |||||
