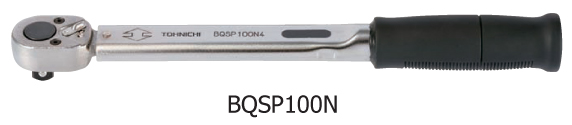

BQSP - BI-DIRECTIONAL TYPE PRESET TORQUE WRENCH | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-BQSP
ASSEMBLY | PRESET | RATCHET HEAD | BI-DIRECTIONAL | ISO6789:2017
● Click for both CW & CCW applications
● Same function of QSP
Accuracy ±3%
| Order No. | Torque Range | Overall Length [mm] | Square Drive [mm] | Weight kg | Adjusting ToolPart # |
||
| [N•m] | [kgf•cm/kgf•m] | [lbf•in] | |||||
| Min.-Max. | Min.-Max. | Min.-Max. | |||||
| kgf•cm | |||||||
| BQSP10N | 5-10 | 50-100 | 44.3-88.5 | 213.5 | 6.35 | 0.2 | 931 |
| BQSP20N | 10-20 | 100-200 | 88.5-177 | 213.5 | 9.53 | 0.2 | 931 |
| BQSP40N | 20-40 | 200-400 | 177-354 | 240 | 9.53 | 0.4 | 930 |
| BQSP70N | 35-70 | 350-700 | 310-619 | 314 | 9.53 | 0.63 | 930 |
| BQSP120N | 60-120 | 600-1200 | 531-1061 | 380 | 12.7 | 0.73 | 930 |
| BQSP220N | 110-220 | 1100-2200 | 974-1946 | 462 | 12.7 | 1.3 | 930 |
| kgf•m | |||||||
| BQSP300N | 150-300 | 15-30 | 1328-2654 | 665 | 19.05 | 2.4 | 930 |
| BQSP400N | 200-420 | 20-42 | 1770-3716 | 970.5 | 19.05 | 3.7 | 314 |
Note. 1. BQSP10N-300N have resin grips.
2. BQSP400N has a knurted handle.
3. Adjusting tool is sold separately.
4. Sockets are sold separately.
■ QSP3/QSP-MH
Optional Accessories
931 | 930
314
Adjusting Tool
| Part # | Applicable Model Dimension [mm] |
| 931 | BQSP10N-20N |
| 930 | BQSP40-300N |
| 314 | BQSP400N |
| แบรนด์สินค้า | TOHNICHI |
|---|
