BTGE-G - DIGITAL TORQUE GAUGE | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-BTGE-G
DIGITAL | 3-JAW CHUCK | DIRECT READING | BATTERY
● Multiple units of measure through keypad setup
● For measurement, inspection and tightening of low torque range
● Flip-up display can be adjusted for optimal reading
Accuracy ±2%+1 digit
| Order No. | Torque Range | Chuck Grip [mm] | Dimension [mm] | Weight kg | ||||||||
| [cN•m] | [mN•m] | [gf•cm] | [ozf•in] | Overall Length | Outside Diameter | |||||||
| Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | Min.-Max. | 1 digit | |||||
| BTGE10CN-G | 4-10 | 0.01 | 0.2-1 | 0.001 | 3-14 | 0.01 | 0.2-0.88 | 0.001 | Ø1-Ø8.5 | 130 | 75 | 0.65 |
| BTGE20CN-G | 4-20 | 0.02 | 0.4-2 | 0.002 | 6-28 | 0.02 | 0.4-1.7 | 0.002 | ||||
| BTGE50CN-G | 10-50 | 0.05 | 1-5 | 0.005 | 15-70 | 0.05 | 1-4.4 | 0.005 | ||||
| BTGE100CN-G | 20-100 | 0.1 | 2-10 | 0.01 | 30-140 | 0.1 | 2-8.8 | 0.01 | ||||
| BTGE200CN-G | 40-200 | 0.2 | 4-20 | 0.02 | 60-280 | 0.2 | 4-17 | 0.02 | ||||
Note. 1. Can be used for checking accuracy of torque screwdriver.
2. Max 999 readings can be saved with statistical function max/min/mean values.
■ BTGE-G Optional Accessories
Connecting Cable
| Part # | Applicable Model |
| 384 | BTGE-G (USB mini B) - PC (USB A) |
Measurement Board
| Model |
| 809 |
| แบรนด์สินค้า | TOHNICHI |
|---|
■ ATG / BTG / ATGE-G / BTGE-G Optional Accessories

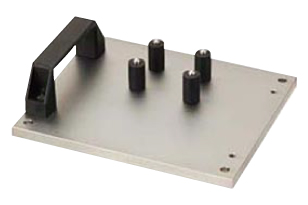

ATGE-G / BTGE-G Measurement stand
To firmly fix ATGE-G/BTGE-G to use as table tip configuration
| Part # | Applicable Model |
| 808 | ATGE-G |
| 809 | BTGE-G |
Table attachment
4 poles are designed to clamp objects of any shape (Chuckingdiameter Ø10-Ø58)
| Part # | Applicable Model |
| 800 | ATGE-G / BTGE-G |
Calibration adapter for ATGE-G/BTGE-G
Adapter for calibration devices, ATGTCL/BTGTCL, to mount on ATGE-G/BTGE-G
| Part # | Applicable Model |
| 806 | ATGE-G |
| 807 | BTGE-G |
Adapter for USB connector
External power supply adapter for ATGE-G/BTGE-G with using USB connecting cable
| Part # | Applicable Model |
| BA-7 | ATGE-G / BTGE-G |
USB connecting cable
Cable for external USB data output or connecting BA-5
| Part # | Applicable Model |
| 384 | ATGE-G / BTGE-G |
Plastic chuck
Plastic chuck for fragile objects
| Part # | Applicable Model |
| 322 | ATGE-G / BTGE-G |
