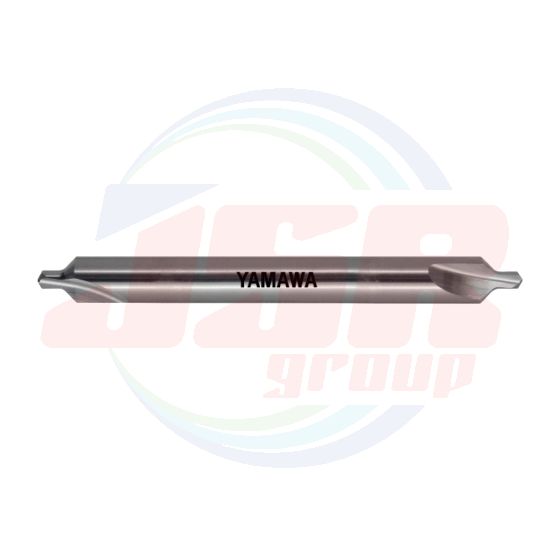

● The C-CD-QL is a carbide long shank low helix center hole drill suitable for hard materials and mass production of center with 90° center holes.
Specification

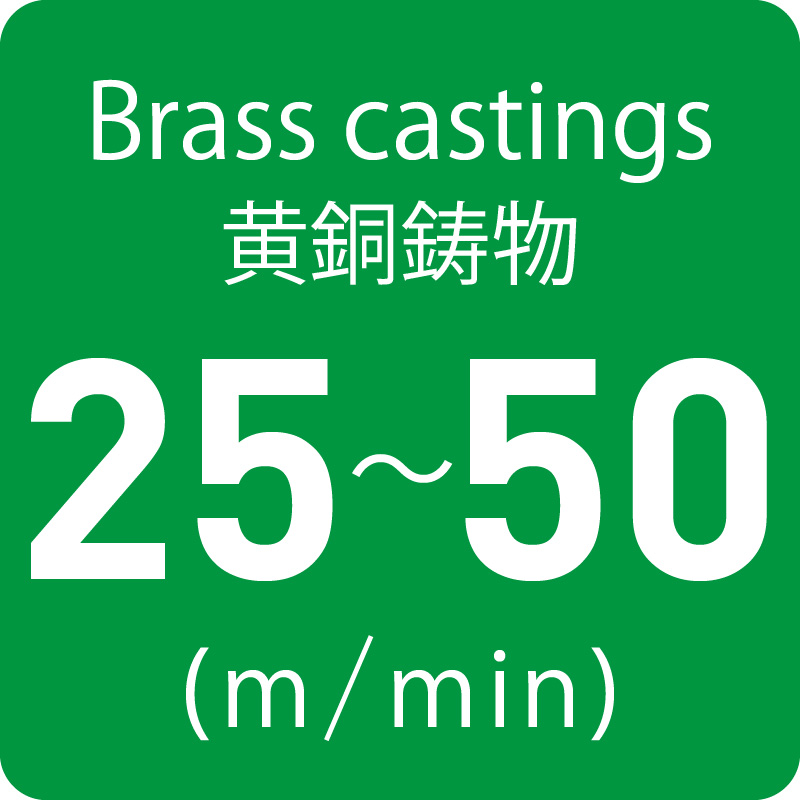

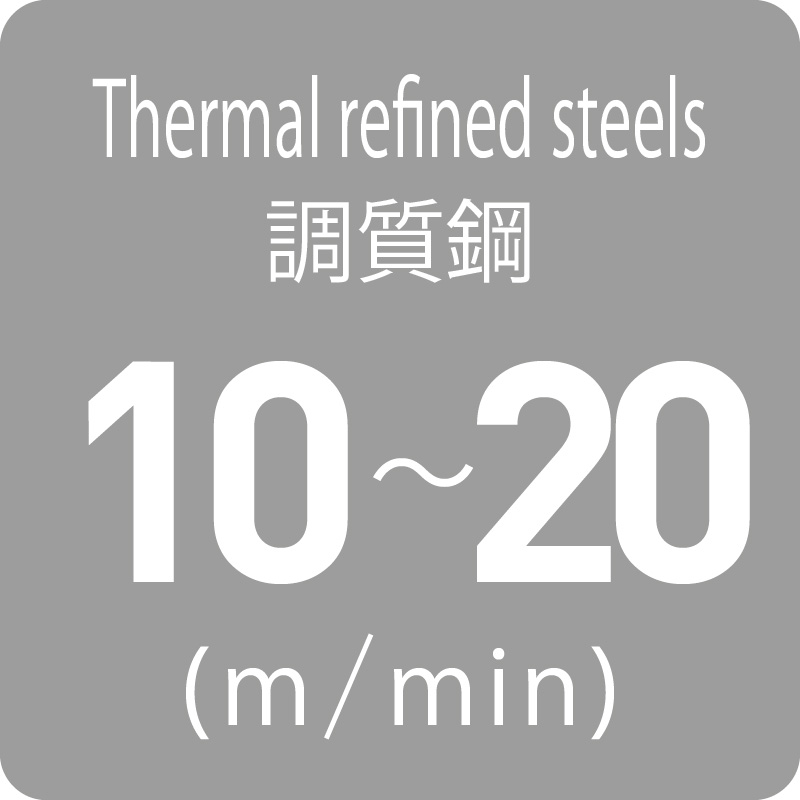

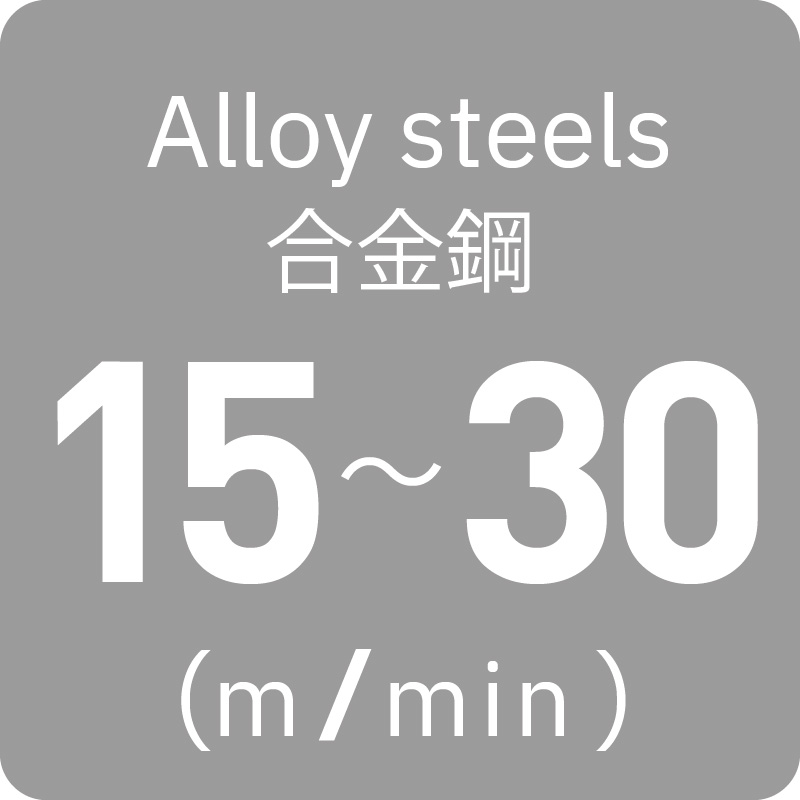

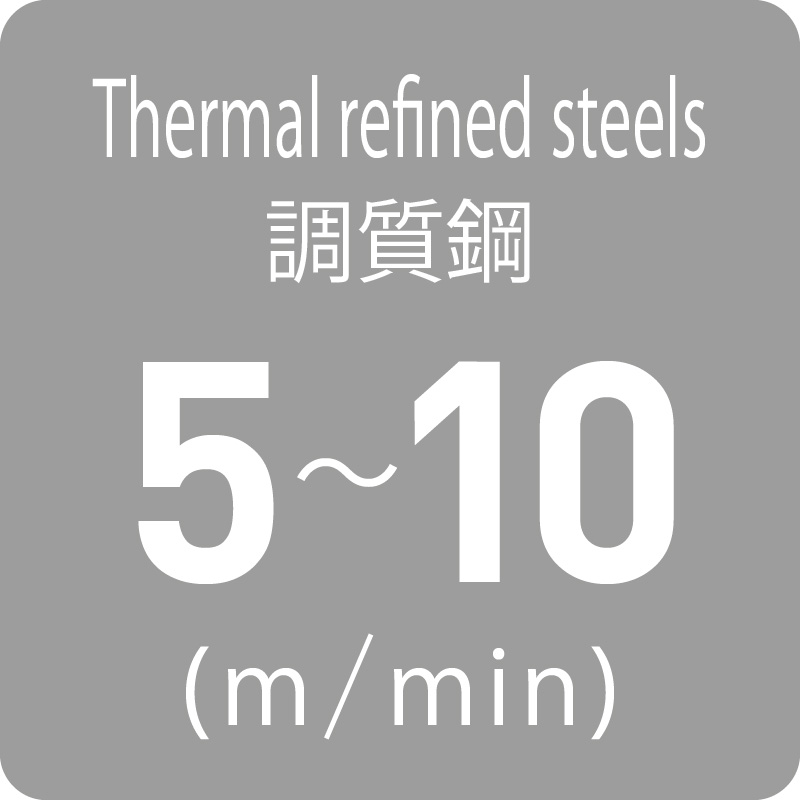

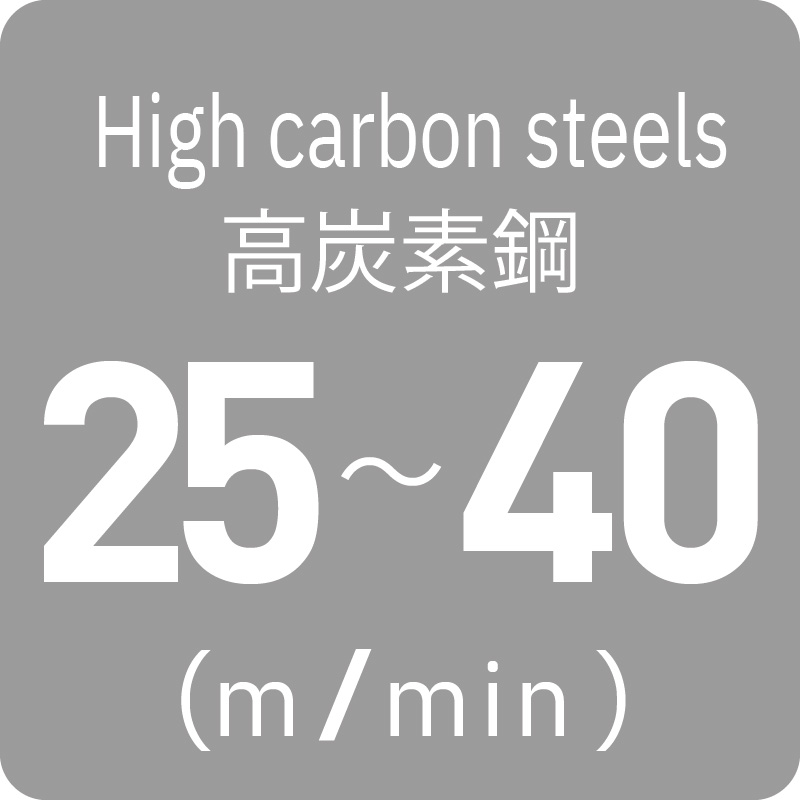

Cutting Speed depending on Materials
Segment：52
|

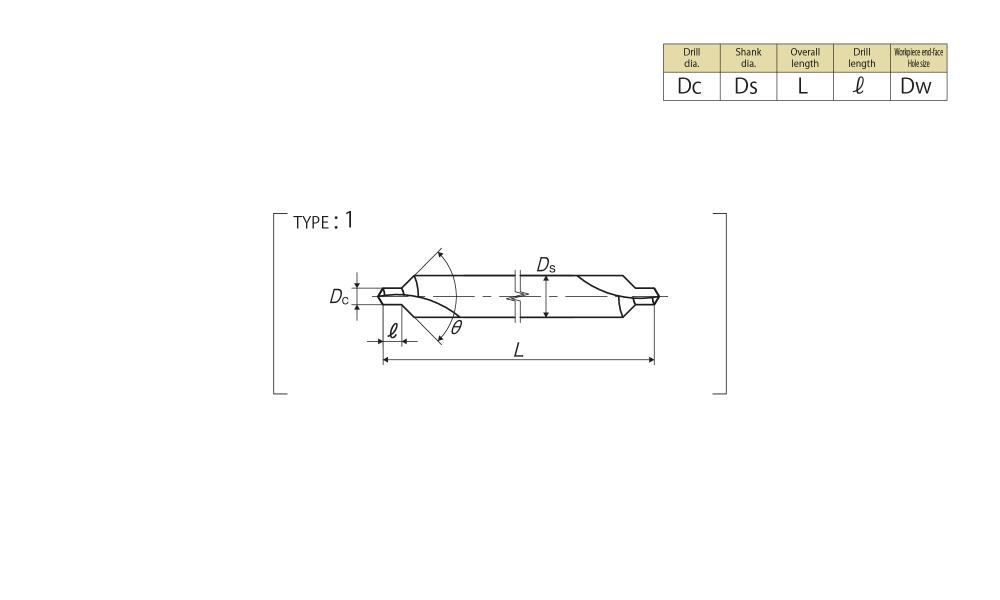

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
1 × 90゜ × 4 |
CCL1.0Q |
1 |
4 |
100 |
1 |
3 |
1 |
|
1.5 × 90゜ × 5 |
CCL1.5Q |
1.5 |
5 |
100 |
1.5 |
4 |
1 |
|
2 × 90゜ × 6 |
CCL2.0Q |
2 |
6 |
100 |
2 |
5 |
1 |
|
2 × 90゜ × 6 |
CCM2.0Q |
2 |
6 |
150 |
2 |
5 |
1 |
|
2.5 × 90゜ × 8 |
CCL2.5Q |
2.5 |
8 |
100 |
2.5 |
6.5 |
1 |
|
2.5 × 90゜ × 8 |
CCM2.5Q |
2.5 |
8 |
150 |
2.5 |
6.5 |
1 |
|
3 × 90゜ × 8 |
CCL3.0Q |
3 |
8 |
100 |
3 |
6.5 |
1 |
|
3 × 90゜ × 8 |
CCM3.0Q |
3 |
8 |
150 |
3 |
6.5 |
1 |
|
4 × 90゜ × 10 |
CCL4.0Q |
4 |
10 |
100 |
4.5 |
8.5 |
1 |
|
4 × 90゜ × 10 |
CCM4.0Q |
4 |
10 |
150 |
4.5 |
8.5 |
1 |
|
5 × 90゜ × 12 |
CCL5.0Q |
5 |
12 |
100 |
5.5 |
10 |
1 |
|
5 × 90゜ × 12 |
CCM5.0Q |
5 |
12 |
150 |
5.5 |
10 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
