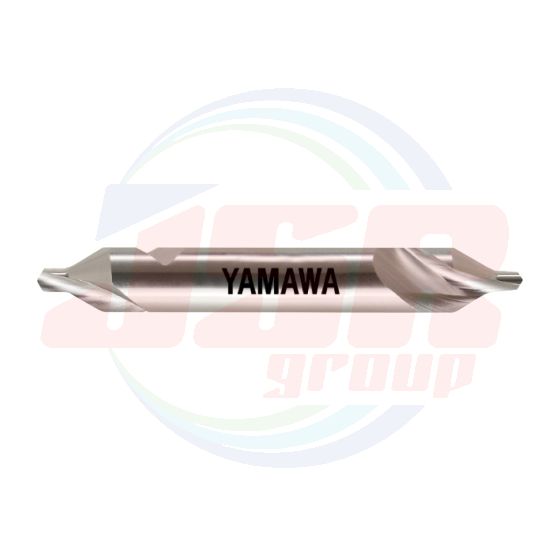

● Low helix carbide center drills - Type A suitable for hard materials and mass production.
Specification
Cutting Speed depending on Materials
25〜35HRC 35〜45HRC
Segment：52
|

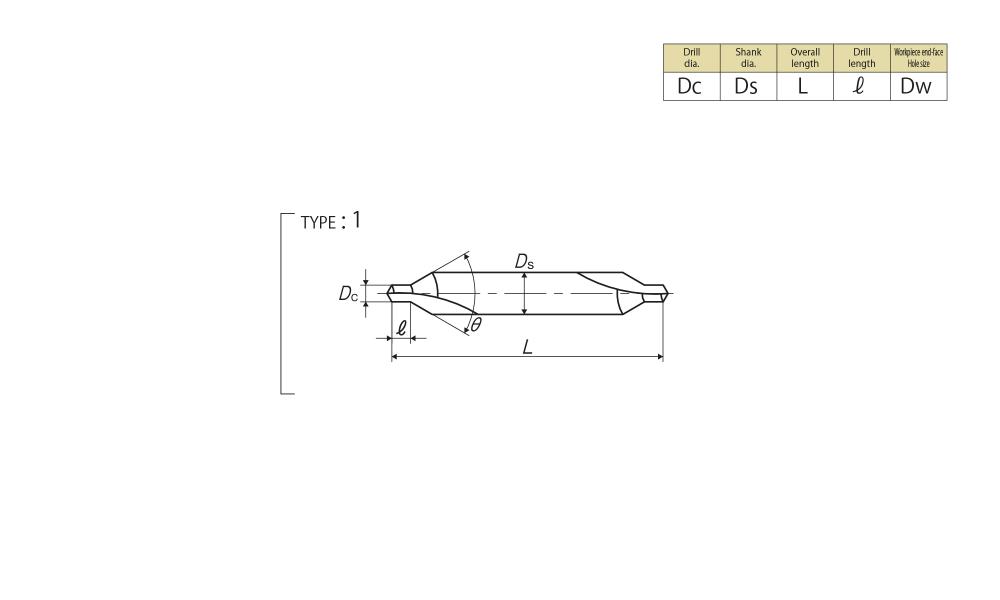

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
1 × 60゜ × 4 |
CCD1.0 |
1 |
4 |
35 |
1 |
2.5 |
1 |
|
1.2 × 60゜ × 5 |
CCD1.2 |
1.2 |
5 |
40 |
1.2 |
3 |
1 |
|
1.5 × 60゜ × 5 |
CCD1.5 |
1.5 |
5 |
40 |
1.5 |
4 |
1 |
|
2 × 60゜ × 6 |
CCD2.0 |
2 |
6 |
45 |
2 |
5 |
1 |
|
2.5 × 60゜ × 7.7 |
CCD2.5 |
2.5 |
7.7 |
50 |
2.5 |
6.5 |
1 |
|
2.5 × 60゜ × 8 |
CCD2.5-8 |
2.5 |
8 |
50 |
2.5 |
6.5 |
1 |
|
3 × 60゜ × 7.7 |
CCD3.0 |
3 |
7.7 |
55 |
3 |
6.5 |
1 |
|
3 × 60゜ × 8 |
CCD3.0-8 |
3 |
8 |
55 |
3 |
6.5 |
1 |
|
4 × 60゜ × 10 |
CCD4.0 |
4 |
10 |
65 |
4.5 |
8.5 |
1 |
|
5 × 60゜ × 11 |
CCD5.0 |
5 |
11 |
78 |
5.5 |
9 |
1 |
|
5 × 60゜ × 12 |
CCD5.0-12 |
5 |
12 |
78 |
5.5 |
10 |
1 |
|
6 × 60゜ × 18 |
CCD6.0 |
6 |
18 |
90 |
6.5 |
15 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
