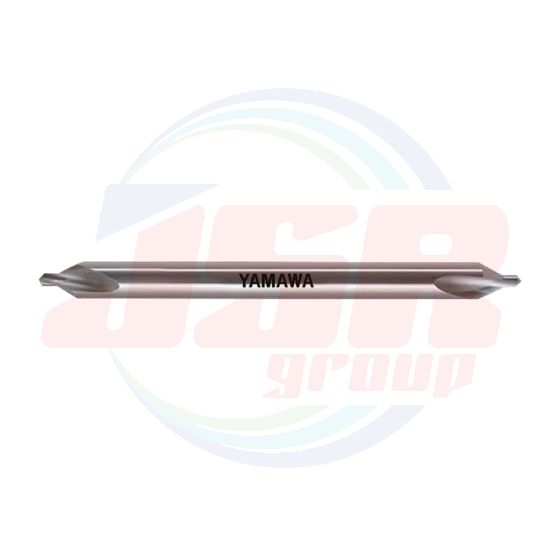

C-CD-SL | Long Shank Low Helix Center Drills-Type A 60°, Coated | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,914.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
C-CD-SL
QTY:
0
● Long shank low helix carbide center drills - Type A suitable for hard materials and mass production.
Specification

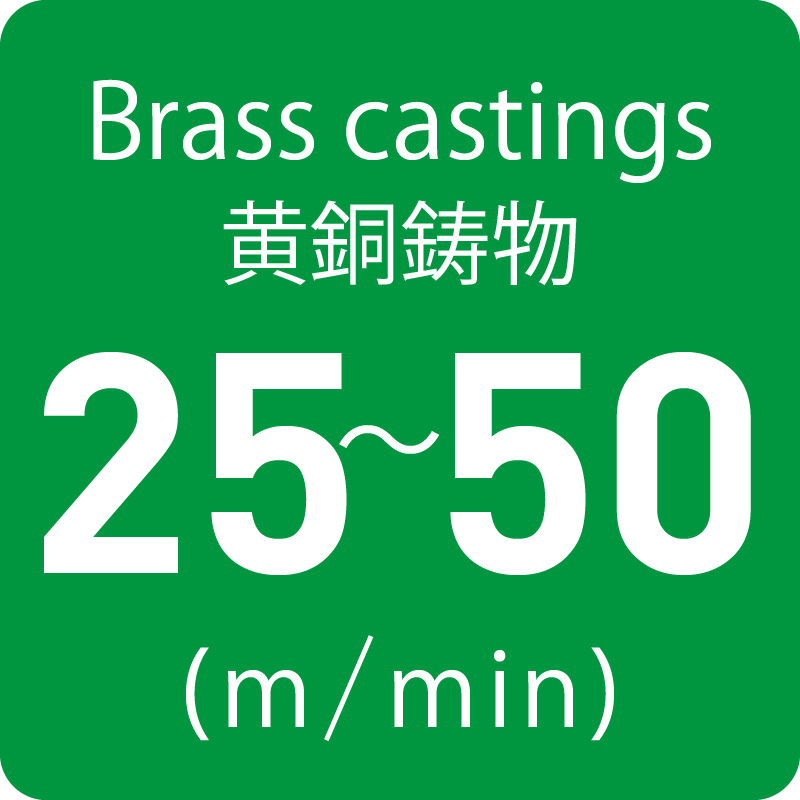

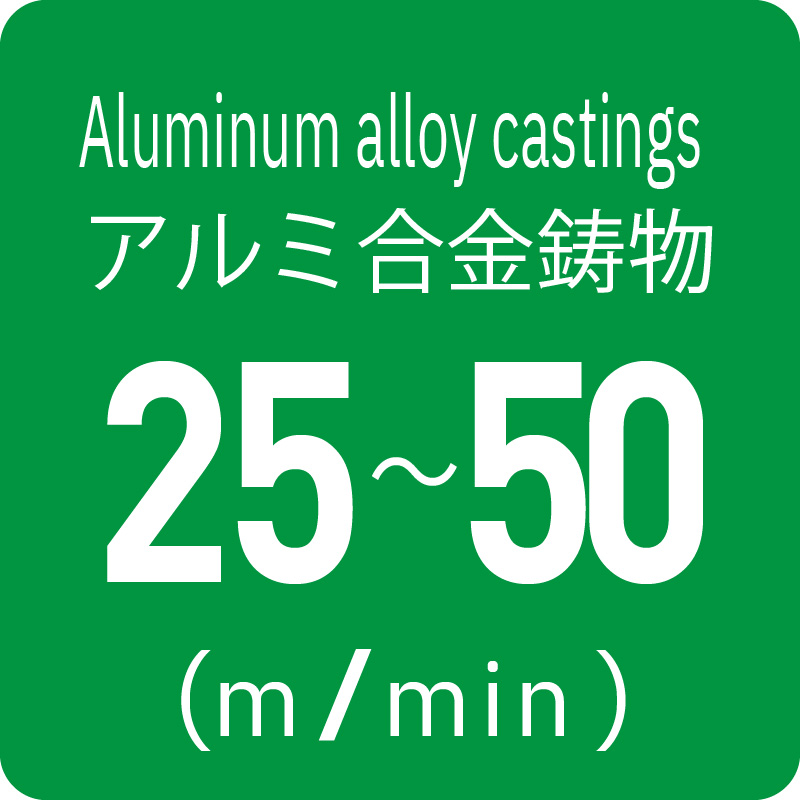

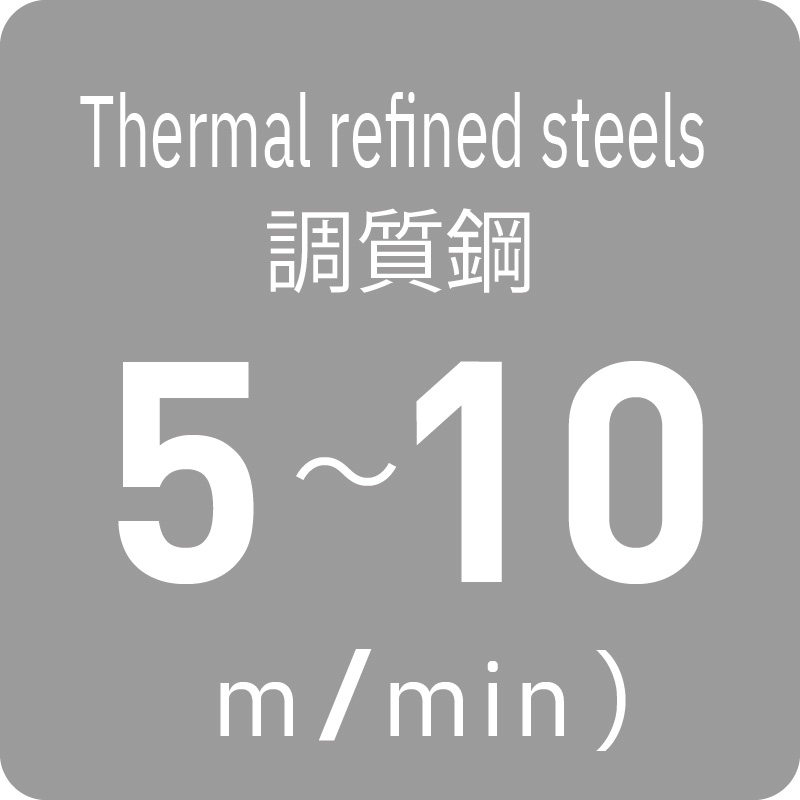

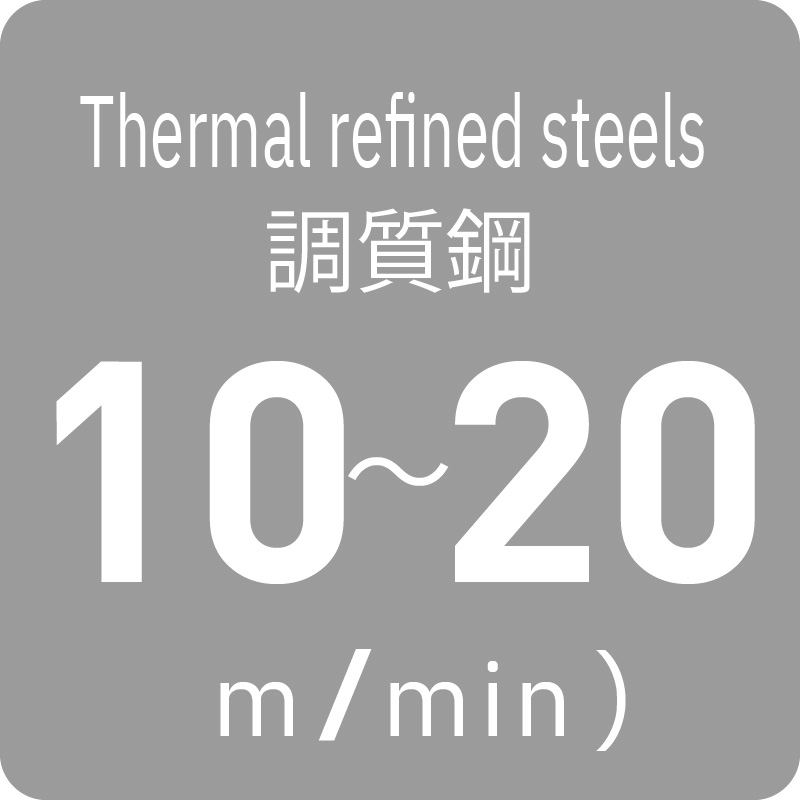

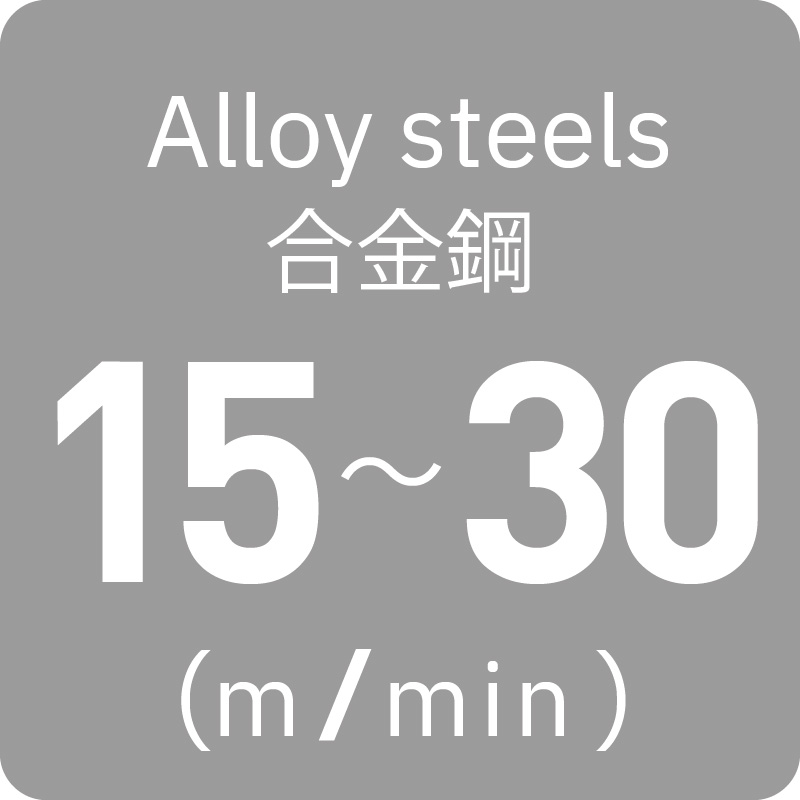

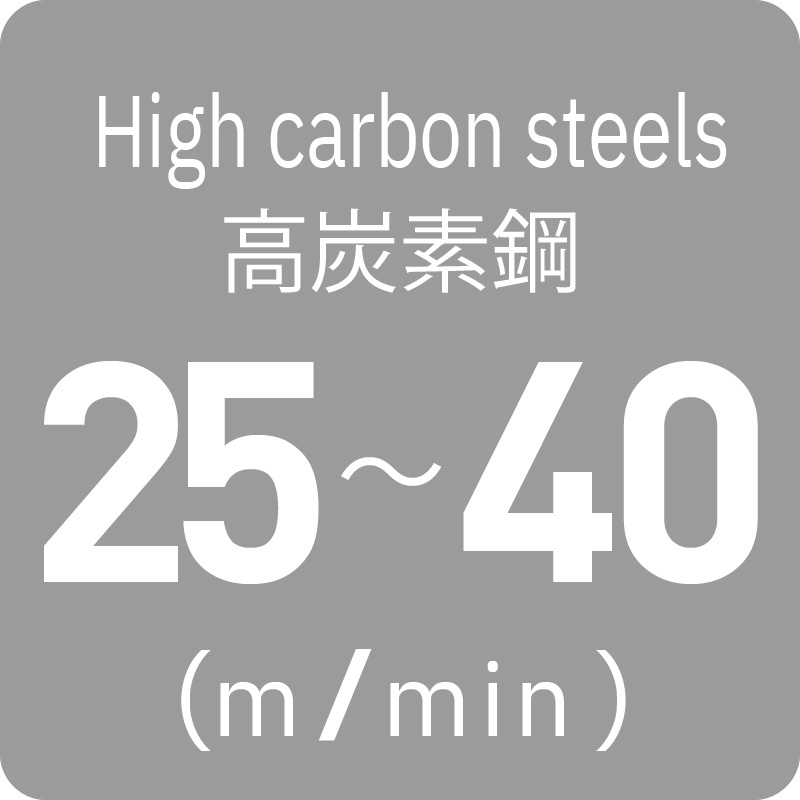

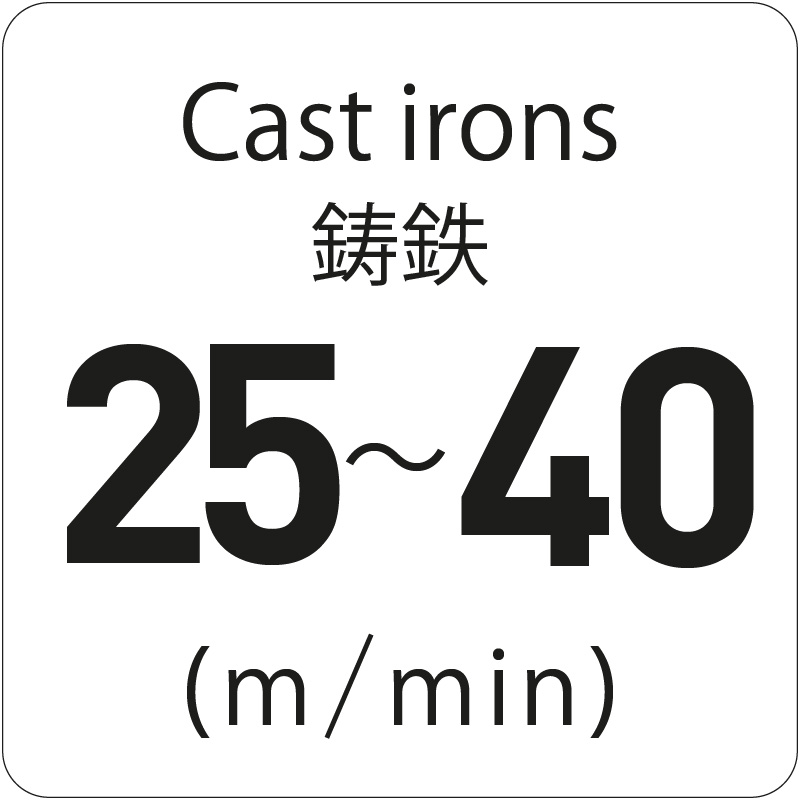

Cutting Speed depending on Materials
Segment：52
|

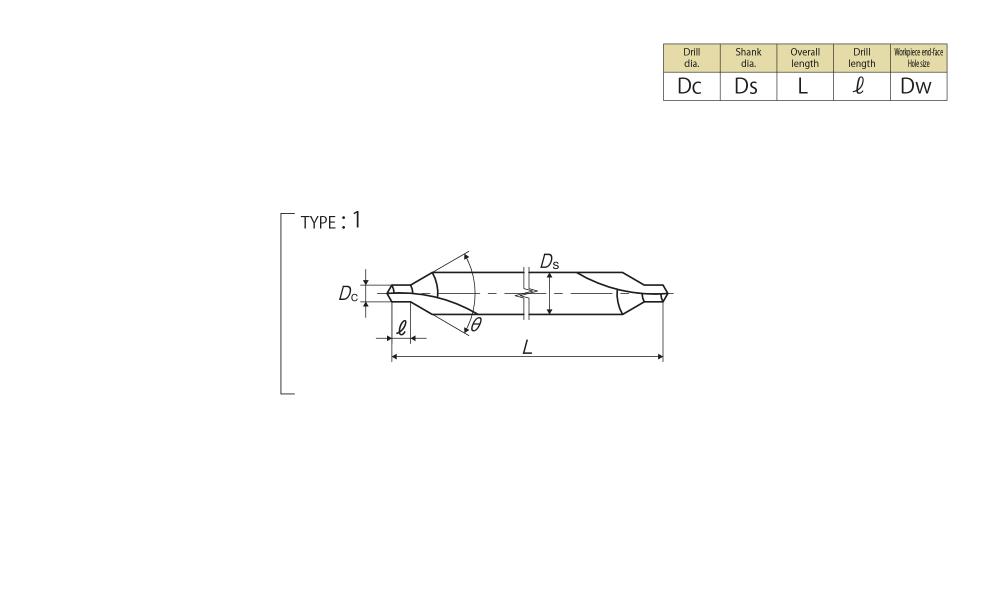

Size Dc × θ ×Ds |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
Dw (mm) |
TYPE |
|
1 × 60゜ × 4 |
CCDL1.0 |
1 |
4 |
100 |
1 |
2.5 |
1 |
|
1.5 × 60゜ × 5 |
CCDL1.5 |
1.5 |
5 |
100 |
1.5 |
4 |
1 |
|
2 × 60゜ × 6 |
CCDL2.0 |
2 |
6 |
100 |
2 |
5 |
1 |
|
2 × 60゜ × 6 |
CCDM2.0 |
2 |
6 |
150 |
2 |
5 |
1 |
|
2.5 × 60゜ × 8 |
CCDL2.5 |
2.5 |
8 |
100 |
2.5 |
6.5 |
1 |
|
2.5 × 60゜ × 8 |
CCDM2.5 |
2.5 |
8 |
150 |
2.5 |
6.5 |
1 |
|
3 × 60゜ × 8 |
CCDL3.0 |
3 |
8 |
100 |
3 |
6.5 |
1 |
|
3 × 60゜ × 8 |
CCDM3.0 |
3 |
8 |
150 |
3 |
6.5 |
1 |
|
4 × 60゜ × 10 |
CCDL4.0 |
4 |
10 |
100 |
4.5 |
8.5 |
1 |
|
4 × 60゜ × 10 |
CCDM4.0 |
4 |
10 |
150 |
4.5 |
8.5 |
1 |
|
5 × 60゜ × 12 |
CCDL5.0 |
5 |
12 |
100 |
5.5 |
10 |
1 |
|
5 × 60゜ × 12 |
CCDM5.0 |
5 |
12 |
150 |
5.5 |
10 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
