Caliper Gauges
Caliper Gauges are available in Digital type.

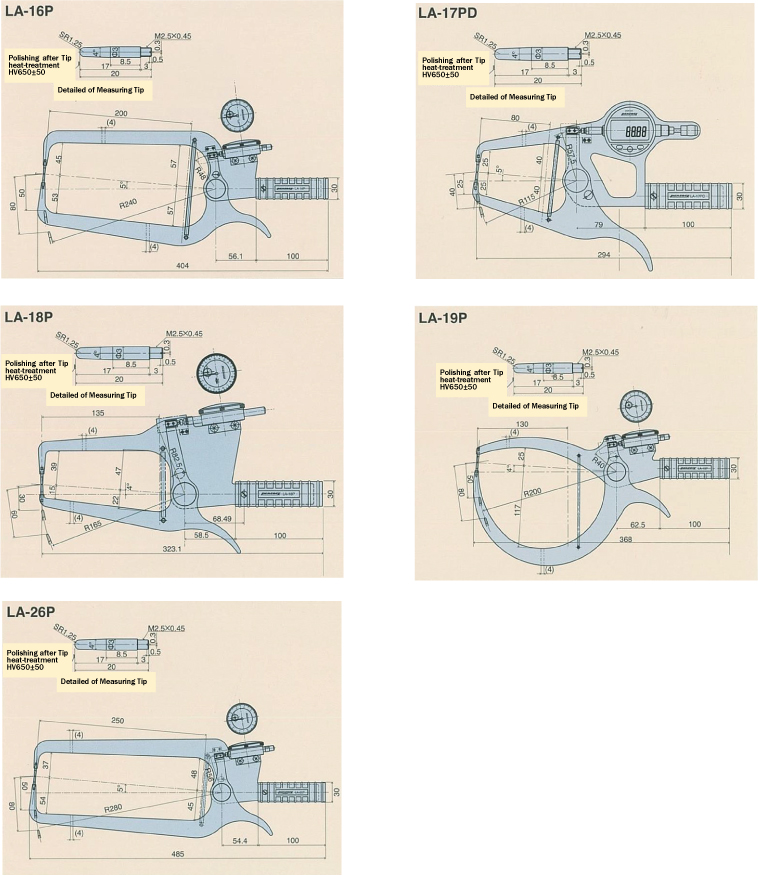

Specifications
Order No. | Graduation (mm) |
Range (mm) | Indication error (mm) |
Max Opening (mm) |
Throat depth (mm) |
Dimensions (mm) | Weight (g) |
|||
H1 | H2 | H3 | H4 | |||||||

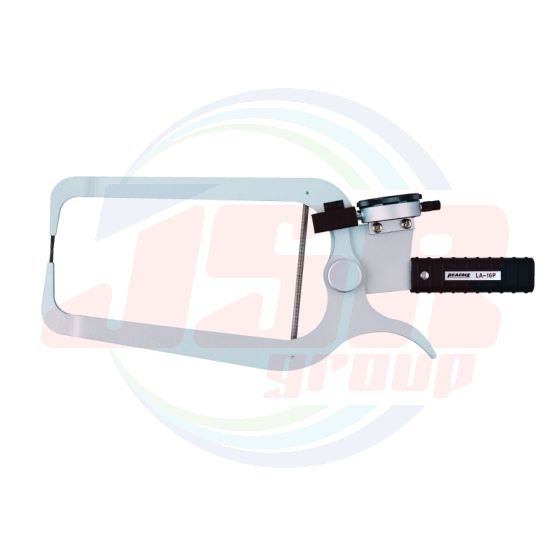

LA-16P | 0.05 | 0 ~ 50 | ±0.15 | 80 | 200 | 45 | 57 | 53 | 57 | 1,340 |
LA-17PD | 0.01 | 0 ~ 25 | ±0.03 | 40 | 80 | 25 | 40 | 25 | 40 | 1,260 |
LA-18P | 0.01 | 0 ~ 30 | ±0.03 | 60 | 135 | 39 | 47 | 15 | 22 | 1,200 |
LA-19P | 0.05 | 0 ~ 50 | ±0.15 | 80 | 130 | - | - | - | - | 1,260 |
LA-26P | 0.05 | 0 ~ 50 | ±0.15 | 80 | 250 | 37 | 48 | 54 | 45 | 1,420 |
แบรนด์สินค้า | PEACOCK |
---|
