Short Size Cylinder Gauges
S series

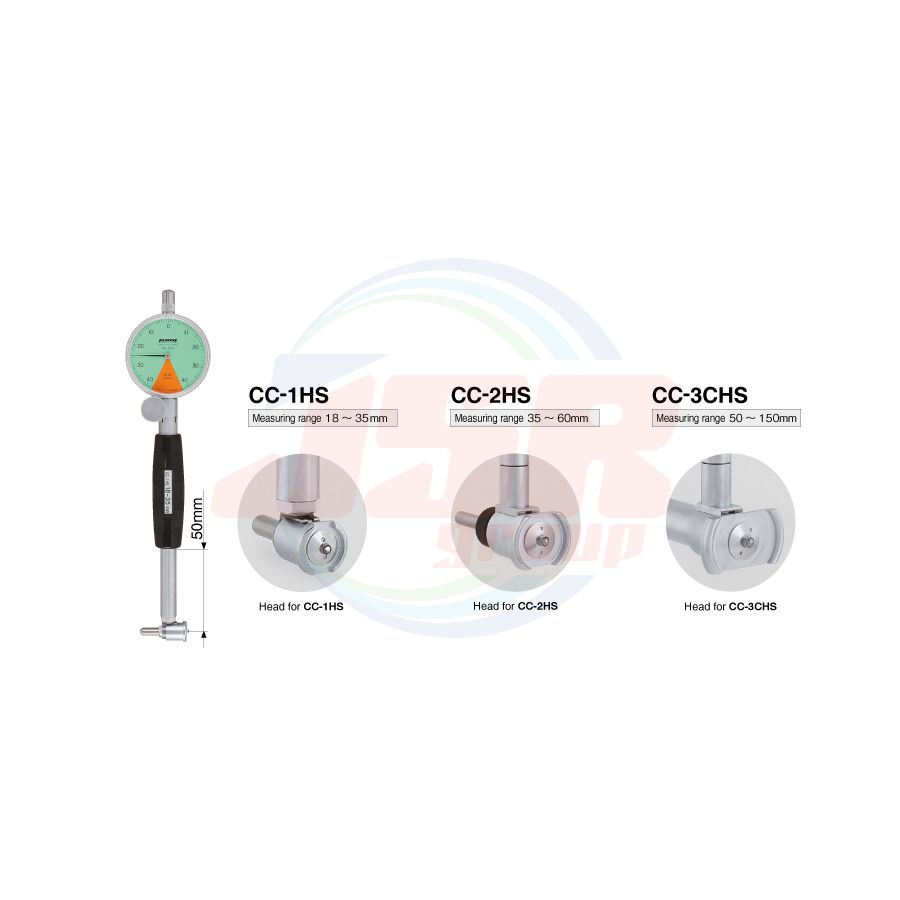

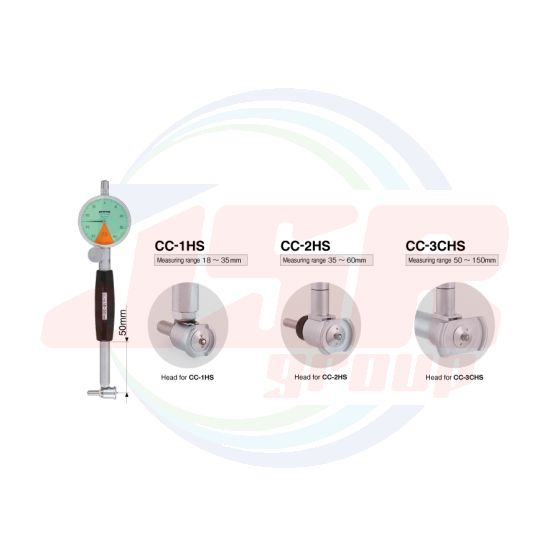

This is a compact cylinder gauge with a length below grip of 50mm.
It is used when a standard item is too long to measure the work-piece or a shorter length of below grip is required for conveniently.
Specifications are same as standard model.
Specifications
unit : mm
| Order No. | Range | Number of Feelers | Thickness of Washers | Adapter | Length below grip |
| CC-1HS | 18 〜35 | Interval 2mm × 9 | 0.5, 1mm each | 50 | |
| CC-2HS | 35 〜60 | Interval 5mm × 6 | 1, 2, 3mm each | 50 | |
| CC-3HS | 50 〜100 | Interval 5mm × 11 | 1, 2, 3mm each | 50 | |
| CC-3CHS | 50 〜150 | Interval 5mm × 11 | 1, 2, 3mm each | 50 × 1 | 50 |
※ Dial Gauge is optional.
● Effective measuring range………1. 2mm
● Wide range accuracy………………5μm
● Adjacent error ……………………… 2μm
● Repeated accuracy…………………2μm
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | CC-1HS |
| Range | 18 〜35 mm |
| Order No. | A | B | C | D | E | F | G | H | I | J |
| CC-1HS | 148.75 | 50 | 5.75 | 70 | 23 | 20 | 10 | 18 〜35 | 13 | 11.5 |
| CC-2HS | 151.5 | 50 | 8.5 | 70 | 23 | 20 | 10 | 35 〜60 | 23 | 17.2 |
| CC-3HS | 151.6 | 50 | 8.6 | 70 | 23 | 20 | 10 | 50 〜100 | 31 | 17.2 |
| CC-3CHS | 151.6 | 50 | 8.6 | 70 | 23 | 20 | 10 | 50 〜150 | 31 | 17.2 |
