Standard Cylinder Gauges
H series
● Dial Gauge is optional, we recommend 17Z, 57B (0.01mm), 15Z, 5F (0.001mm).
● The quality of Cylinder Gauge is followed by JIS A class standard.
● Contact Point is carbide.
Specifications
unit : mm
| Order No. | Range | Number of Feelers | Thickness of Washers | Adapter | Length below grip |
| CC-1H | 18 〜35 | Interval 2mm × 9 | 0.5, 1mm each | 150 | |
| CC-2H | 35 〜60 | Interval 5mm × 6 | 1, 2, 3mm each | 150 | |
| CC-3H | 50 〜100 | Interval 5mm × 11 | 1, 2, 3mm each | 150 | |
| CC-3CH | 50 〜150 | Interval 5mm × 11 | 1, 2, 3mm each | 50 × 1 | 150 |
※ Dial Gauge is optional.
● Effective measuring range………1. 2mm
● Wide range accuracy………………5μm
● Adjacent error ……………………… 2μm
● Repeated accuracy…………………2μm
Special length below grip for New model H series (Available on request)
| Order No. | Measuring range | Length below grip | |||||||
| CC-1H | 18 〜35 | L100 | L200 | L300 | L400 | L500 | - | - | - |
| CC-2H | 35 〜60 | L100 | L200 | L300 | L400 | L500 | L600 | L700 | L800 |
| CC-3H | 50 〜100 | L100 | L200 | L300 | L400 | L500 | L600 | L700 | L800 |
| CC-3CH | 50 〜150 | L100 | L200 | L300 | L400 | L500 | L600 | L700 | L800 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | CC-3H |
| Range | 50 〜100 mm |

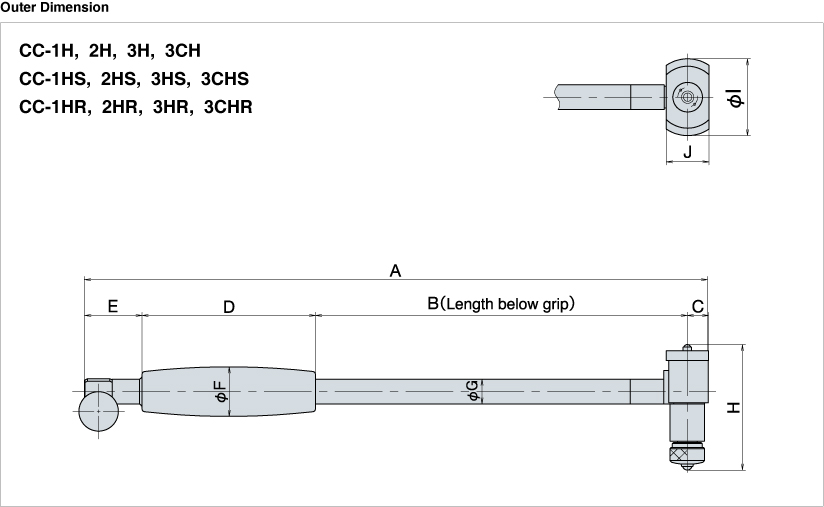

| Order No. | A | B | C | D | E | F | G | H | I | J |
| CC-1H | 248.75 | 150 | 5.75 | 70 | 23 | 20 | 10 | 18 〜35 | 13 | 11.5 |
| CC-2H | 251.5 | 150 | 8.5 | 70 | 23 | 20 | 10 | 35 〜60 | 23 | 17.2 |
| CC-3H | 251.6 | 150 | 8.6 | 70 | 23 | 20 | 10 | 50 〜100 | 31 | 17.2 |
| CC-3CH | 251.6 | 150 | 8.6 | 70 | 23 | 20 | 10 | 50 〜150 | 31 | 17.2 |
